FL4G11Y

Applications

This EVA insulated , PUR sheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

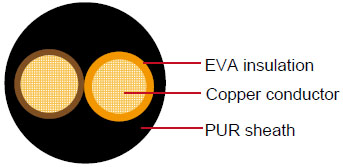

Construction

FL4G11Y
Conductor Cu-ETP1 tinned according to DIN EN 13602
Insulation Ethylene vinyl acetate (EVA)
Sheath Polyurethane (PUR)
Sheath colour black
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –40 °C to +125 °C

Special Properties

Good flexibility and Good reversed bending strength. Conductors with 3 and 4 cores for additiona functions. Also suitable for wiring inside the engine compartment.

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Diameter of Core Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
2 x 0.50 28/0.16 1.00 40.10 0.35 1.65 0.55 4.10 4.50 27
2 x 0.50 28/0.16 1.00 40.10 0.35 1.65 0.90 5.00 5.30 34
2 x0.75 40/0.16 1.10 27.10 0.5 2.20 0.90 5.90 6.45 49
3 x0.50 28/0.16 1.00 40.10 0.35 1.65 0.80 5.00 5.40 39
4 x0.50 28/0.16 1.00 40.10 0.35 1.65 0.60 5.00 5.40 42

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
