EB/HDEB
Applications
This PVC insulated single-core cable is used in low voltage circuits of battery for automobiles.

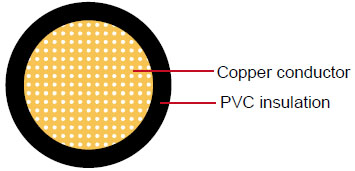

Construction
| Conductor |
Cu-ETP1 according to JIS C 3102 |
| Insulation |
PVC |
| Standard Compliance |
JIS C 3406 |
| Features |
EB wires is for grounding (-side) and thin type; It consists of complex stranded conductors (flexible type). |
| |
HDEB wires are thicker type than EB wires to provide increased mechanical strength. |
Technical Parameters
Operating temperature: –40 °C to +100 °C
| Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| EB |
| 1 x5 |
63/0.32 |
3.10 |
3.58 |
0.60 |
4.30 |
4.70 |
57 |
| 1 x9 |
112/0.32 |
4.20 |
2.00 |
0.60 |
5.40 |
5.80 |
95 |
| 1 x15 |
171/0.32 |
5.30 |
1.32 |
0.60 |
6.50 |
6.90 |
147 |
| 1 x20 |
247/0.32 |
6.50 |
0.92 |
0.60 |
7.70 |
8.00 |
207 |
| 1 x30 |
361/0.32 |
7.80 |
0.63 |
0.60 |
9.00 |
9.40 |
303 |
| 1 x40 |
494/0.32 |
9.10 |
0.46 |
0.60 |
10.30 |
10.80 |
374 |
| 1 x50 |
608/0.32 |
10.10 |
0.37 |
0.60 |
11.30 |
11.90 |
473 |
| 1 x60 |
741/0.32 |
11.10 |
0.31 |
0.60 |
12.30 |
12.90 |
570 |
| HDEB |
| 1 x9 |
112/0.32 |
4.20 |
2.00 |
1.00 |
6.20 |
6.50 |
109 |
| 1 x15 |
171/0.32 |
5.30 |
1.32 |
1.10 |
7.50 |
8.00 |
161 |
| 1 x20 |
247/0.32 |
6.50 |
0.92 |
1.10 |
8.70 |
9.30 |
225 |
| 1 x30 |
361/0.32 |
7.80 |
0.63 |
1.40 |
10.60 |
11.30 |
331 |
| 1 x40 |
494/0.32 |
9.10 |
0.46 |
1.40 |
11.90 |
12.60 |
442 |
| 1 x60 |
741/0.32 |
11.10 |
0.31 |
1.60 |
14.30 |
15.10 |
655 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
