CAVUS
Applications
This PVC insulated single-core cable is used for automotive wiring.

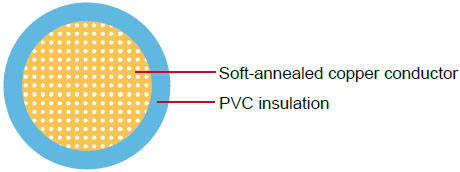

Construction
| Conductor |
Cu-ETP1 according to JIS C 3102 |
| Insulation |
PVC |
| Standard Compliance |
JASO D 611-94 |
Technical Parameters
Operating temperature: –40 °C to +80 °C
| Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20 °C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1 x0.30 |
7/0.26 |
0.70 |
50.20 |
0.20 |
1.10 |
1.20 |
4 |
| 1 x0.50 |
7/0.32 |
0.90 |
32.70 |
0.20 |
1.30 |
1.40 |
6 |
| 1 x0.85 |
11/0.32 |
1.10 |
20.80 |
0.20 |
1.50 |
1.60 |
9 |
| 1 x1.25 |
16/0.32 |
1.40 |
14.30 |
0.20 |
1.80 |
1.90 |
13 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
