AVS
Applications
This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

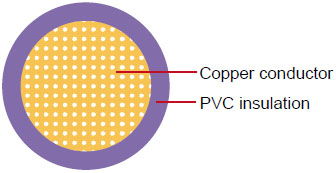

Construction
| Conductor |
Cu-ETP1 bare according to D 609-90 |
| Insulation |
PVC |
| Standard Compliance |
JASO D 611-94 |
Technical Parameters
| Operating temperature |
–40 °C to +85 °C |
| Intermittent temperature |
120°C |
| Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1 x0.30 |
7/0.26 |
0.80 |
50.20 |
0.50 |
1.80 |
1.90 |
6 |
| 1 x0.50 |
7/0.32 |
1.00 |
32.70 |
0.60 |
2.10 |
2.40 |
7 |
| 1 x0.85 |
11/0.32 |
1.20 |
20.80 |
0.60 |
2.30 |
2.60 |
10 |
| 1 x1.25 |
16/0.32 |
1.50 |
14.30 |
0.60 |
2.60 |
2.90 |
15 |
| 1 x2.00 |
26/0.32 |
1.90 |
8.81 |
0.60 |
3.00 |
3.40 |
22 |
| 1 x3.00 |
41/0.32 |
2.40 |
5.59 |
0.70 |
3.50 |
3.90 |
42 |
| 1 x5.00 |
65/0.32 |
3.00 |
3.52 |
0.80 |
4.50 |
4.90 |
61 |
| 1 x0.3f |
15/0.18 |
0.80 |
48.90 |
0.50 |
1.80 |
1.90 |
6 |
| 1 x0.5f |
20/0.18 |
1.00 |
36.70 |
0.50 |
2.00 |
2.10 |
8 |
| 1 x0.75f |
30/0.18 |
1.20 |
24.40 |
0.50 |
2.20 |
2.30 |
11 |
| 1 x1.25f |
50/0.18 |
1.50 |
14.70 |
0.50 |
2.50 |
2.60 |
17 |
| 1 x2f |
37/0.26 |
1.80 |
9.50 |
0.50 |
2.90 |
3.10 |
24 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
