AV
Applications
This PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

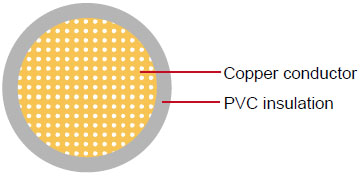

Construction
| Conductor |
Cu-ETP1 bare according to D 609-90 |
| Insulation |
PVC |
| Standard Compliance |
JIS C 3406 |
Technical Parameters
| Operating temperature |
–40 °C to +85 °C |
| Intermittent temperature |
120°C |
| Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1 x0.50 |
7/0.32 |
1.00 |
32.70 |
0.60 |
2.20 |
2.40 |
10 |
| 1 x0.85 |
11/0.32 |
1.20 |
20.80 |
0.60 |
2.60 |
2.60 |
13 |
| 1 x1.25 |
16/0.32 |
1.50 |
14.30 |
0.60 |
2.90 |
2.90 |
17 |
| 1 x2.00 |
26/0.32 |
1.90 |
8.81 |
0.60 |
3.40 |
3.40 |
26 |
| 1 x3.00 |
41/0.32 |
2.40 |
5.59 |
0.70 |
4.10 |
4.10 |
40 |
| 1 x5.00 |
65/0.32 |
3.00 |
3.52 |
0.80 |
4.90 |
4.90 |
62 |
| 1 x8.00 |
50/0.45 |
3.70 |
2.32 |
0.90 |
5.80 |
5.80 |
92 |
| 1 x10.00 |
63/0.45 |
4.50 |
1.84 |
1.00 |
6.90 |
6.90 |
120 |
| 1 x15.00 |
84/0.45 |
4.80 |
1.38 |
1.10 |
7.40 |
7.40 |
160 |
| 1 x20.00 |
41/0.80 |
6.10 |
0.89 |
1.10 |
8.30 |
8.80 |
226 |
| 1 x30.00 |
70/0.80 |
8.00 |
0.52 |
1.40 |
10.80 |
11.50 |
384 |
| 1 x40 |
85/0.80 |
8.60 |
0.43 |
1.40 |
11.40 |
12.10 |
462 |
| 1 x50 |
108/0.80 |
9.80 |
0.34 |
1.60 |
13.00 |
13.80 |
583 |
| 1 x60 |
127/0.80 |
10.40 |
0.29 |
1.60 |
13.60 |
14.40 |
678 |
| 1 x85 |
169/0.80 |
12.00 |
0.22 |
2.00 |
16.00 |
17.00 |
924 |
| 1 x100 |
217/0.80 |
13.60 |
0.17 |
2.00 |
17.60 |
18.60 |
1151 |
| 1 x0.5f |
20/0.18 |
1.00 |
36.70 |
0.60 |
2.40 |
2.40 |
9 |
| 1 x0.75f |
30/0.18 |
1.20 |
24.40 |
0.60 |
2.60 |
2.60 |
12 |
| 1 x1.25f |
50/0.18 |
1.50 |
14.70 |
0.60 |
2.90 |
2.90 |
18 |
| 1 x2f |
37/0.26 |
1.80 |
9.50 |
0.60 |
3.40 |
3.40 |
25 |
| 1 x3f |
61/0.26 |
2.40 |
5.76 |
0.70 |
4.10 |
4.10 |
40 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
