The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
Basic design to BS 6724
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482- 332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic Gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
600/1000V

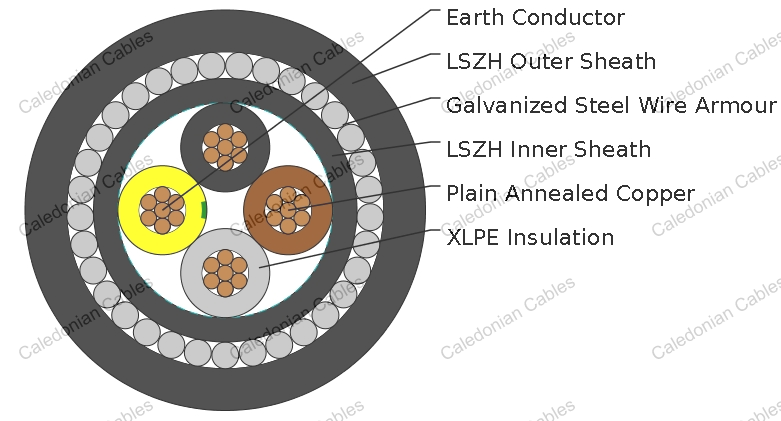

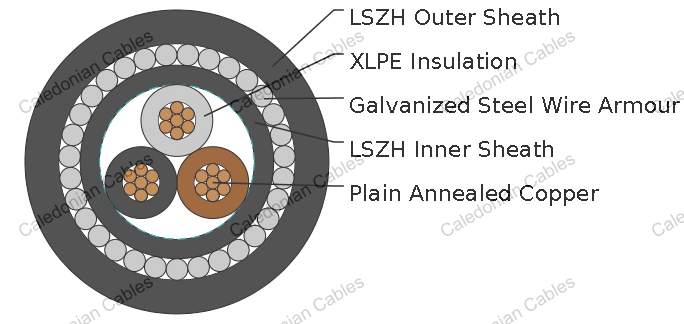

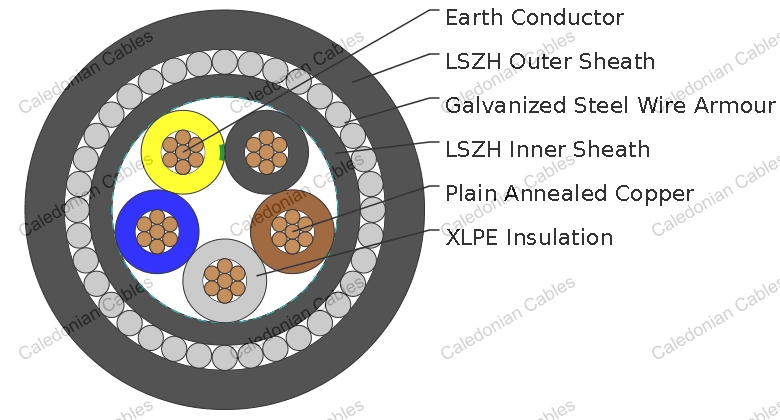

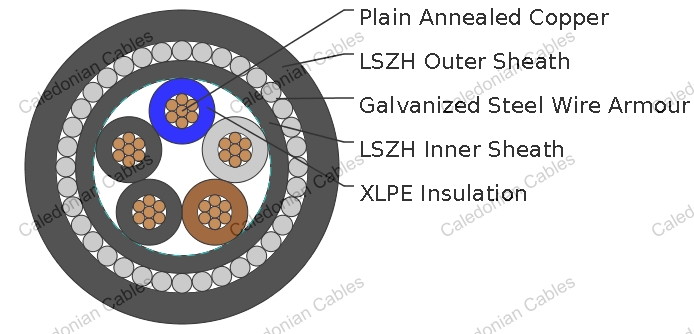

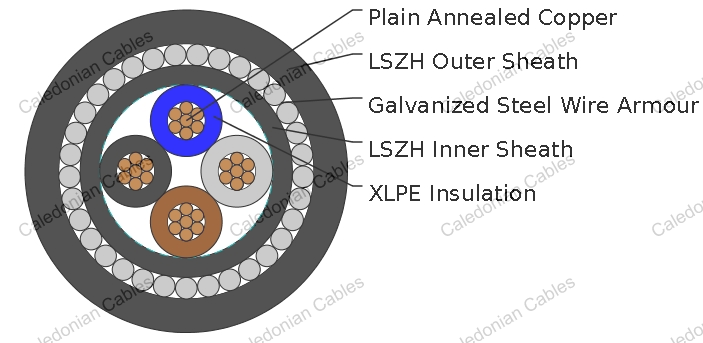

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2 Insulation: Extruded cross-linked XLPE compound Inner Sheath : LSZH Compound Armouring : Galvanized Steel Wire Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
Insulation Colour as per BS7671
| With Earth Conductor | Without Earth Conductor | |
| 2 Cores | - | Brown, Blue |
| 3 Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4 Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5 Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Temperature Range During Operation: -30°C ~ 90°C Temperature Range during Installation : -5°C ~ 50°C Minimum Bending Radius: 8 x OD
| Dielectric Test: | 3500 V r.m.s. x 5’ ( core / core ) |
| Insulation Resistance | 500 MΩ x km ( at 20°C ) |
| Short circuit Temperature | 250°C ( up to 5 secs ) |
| CABLE CODE | CONDUCTOR | NOMINAL INSULATION THICKNESS | DIAMETER UNDER ARMOUR | ARMOUR WIRE DIAMETER | NOMINAL OVERALL DIAMETER | APPROX. WEIGHT | |
|---|---|---|---|---|---|---|---|
| NO. OF CORE X CROSS SECTION / CPC CROSS SECTION | NO ./ NOMINAL DIAMETER OF STRANDS | ||||||
| NO.×MM2 | NO./MM | MM | MM | MM | MM | KG/KM | |
| 3 CORES | |||||||
| FTX400 1RZ1MZ1-R 3G1.5 | 3x1.5 | 7/0.53 | 0.6 | 9.0 | 0.9 | 12.6 | 340 |
| FTX400 1RZ1MZ1-R 3G2.5 | 3x2.5 | 7/0.67 | 0.7 | 9.9 | 0.9 | 14.1 | 408 |
| FTX400 1RZ1MZ1-R 3G4 | 3x4 | 7/0.85 | 0.7 | 11.0 | 0.9 | 15.3 | 498 |
| FTX400 1RZ1MZ1-R 3G6 | 3x6 | 7/1.04 | 0.7 | 11.6 | 1.25 | 16.6 | 600 |
| FTX400 1RZ1MZ1-R 3G10 | 3x10 | 7/1.35 | 0.7 | 14.3 | 1.25 | 19.5 | 915 |
| FTX400 1RZ1MZ1-R 3G16 | 3x16 | 7/1.70 | 0.7 | 16.5 | 1.25 | 21.6 | 1130 |
| FTX400 1RZ1MZ1-R 3G25 | 3x25 | 7/2.14 | 0.9 | 20.2 | 1.6 | 26.7 | 1710 |
| FTX400 1RZ1MZ1-R 3G35 | 3x35 | 7/2.52 | 0.9 | 22.4 | 1.6 | 29.4 | 2100 |
| FTX400 1RZ1MZ1-R 3G50 | 3x50(S) | 19/1.78 | 1.0 | 24.2 | 1.6 | 28.5 | 2450 |
| FTX400 1RZ1MZ1-R 3G70 | 3x70(S) | 19/2.14 | 1.1 | 28.2 | 2.0 | 32.2 | 3120 |
| FTX400 1RZ1MZ1-R 3G95 | 3x95(S) | 19/2.52 | 1.1 | 31.7 | 2.0 | 37.0 | 4310 |
| FTX400 1RZ1MZ1-R 3G120 | 3x120(S) | 37/2.03 | 1.2 | 36.0 | 2.0 | 40.4 | 5160 |
| FTX400 1RZ1MZ1-R 3G150 | 3x150(S) | 37/2.25 | 1.4 | 39.5 | 2.5 | 45.5 | 7160 |
| FTX400 1RZ1MZ1-R 3G185 | 3x185(S) | 37/2.52 | 1.6 | 43.3 | 2.5 | 49.8 | 8600 |
| FTX400 1RZ1MZ1-R 3G240 | 3x240(S) | 61/2.25 | 1.7 | 48.4 | 2.5 | 55.1 | 10750 |
| FTX400 1RZ1MZ1-R 3G300 | 3x300(S) | 61/2.52 | 1.8 | 54.4 | 2.5 | 60.2 | 13080 |
| FTX400 1RZ1MZ1-R 3G400 | 3x400(S) | 61/2.85 | 2.0 | 57.8 | 2.5 | 66.6 | 15810 |
| 3 CORES + 1 EARTH CONDUCTOR | |||||||
| FTX400 1RZ1MZ1-R 3G16/6 | 3xl6/6 | 7/1.70 | 0.7 | 17.6 | 1.25 | 22.6 | 1342 |
| FTX400 1RZ1MZ1-R 3G16/10 | 3x16/l0 | 7/1.70 | 0.7 | 20.6 | 1.25 | 23.0 | 1567 |
| FTX400 1RZ1MZ1-R 3G25/6 | 3x25/6 | 7/2.14 | 0.9 | 26.3 | 1.25 | 27.1 | 1876 |
| FTX400 1RZ1MZ1-R 3G25/10 | 3x25/10 | 7/2.14 | 0.9 | 26.3 | 1.25 | 27.6 | 2091 |
| FTX400 1RZ1MZ1-R 3G25/16 | 3x25/16 | 7/2.14 | 0.9 | 26.6 | 1.25 | 28.3 | 2150 |
| FTX400 1RZ1MZ1-R 3G35/10 | 3x35/10 | 7/2.52 | 0.9 | 26.8 | 1.6 | 28.9 | 2210 |
| FTX400 1RZ1MZ1-R 3G35/16 | 3x35/16 | 7/2.52 | 0.9 | 26.8 | 1.6 | 29.5 | 2390 |
| FTX400 1RZ1MZ1-R 3G35/25 | 3x35/25 | 7/2.52 | 0.9 | 27.2 | 1.6 | 30.0 | 2505 |
| FTX400 1RZ1MZ1-R 3G50/16 | 3×50/16 | 19/1.78 | 0.9 | 28.5 | 1.6 | 29.0 | 2916 |
| FTX400 1RZ1MZ1-R 3G50/25 | 3x50/25 | 19/1.78 | 1.0 | 29.2 | 1.6 | 30.0 | 3107 |
| FTX400 1RZ1MZ1-R 3G50/35 | 3x50/35 | 19/1.78 | 1.0 | 30.0 | 1.6 | 31.0 | 3175 |
| FTX400 1RZ1MZ1-R 3G70/25 | 3×70/25 | 19/2.14 | 1.1 | 34.0 | 2.0 | 32.9 | 3203 |
| FTX400 1RZ1MZ1-R 3G70/35 | 3x70/35 | 19/2.14 | 1.1 | 34.5 | 2.0 | 34.5 | 4067 |
| FTX400 1RZ1MZ1-R 3G70/50 | 3x70/50 | 19/2.14 | 1.1 | 35 | 2.0 | 36.3 | 4310 |
| FTX400 1RZ1MZ1-R 3G95/25 | 3×95/25 | 19/2.52 | 1.1 | 36.7 | 2.0 | 38.0 | 5047 |
| FTX400 1RZ1MZ1-R 3G95/35 | 3×95/35 | 19/2.52 | 1.1 | 37.2 | 2.0 | 38.6 | 5115 |
| FTX400 1RZ1MZ1-R 3G95/50 | 3x95/50 | 19/2.52 | 1.1 | 37.6 | 2.0 | 39.2 | 5289 |
| FTX400 1RZ1MZ1-R 3G95/70 | 3x95/70 | 19/2.52 | 1.1 | 37.6 | 2.0 | 40.0 | 5360 |
| FTX400 1RZ1MZ1-R 3G120/35 | 3×120/35 | 37/2.03 | 1.2 | 39.4 | 2.5 | 41.2 | 6160 |
| FTX400 1RZ1MZ1-R 3G120/50 | 3×120/50 | 37/2.03 | 1.2 | 39.9 | 2.5 | 42.3 | 6473 |
| FTX400 1RZ1MZ1-R 3G120/70 | 3x120/70 | 37/2.03 | 1.2 | 40.3 | 2.5 | 44.6 | 6793 |
| FTX400 1RZ1MZ1-R 3G120/95 | 3×120/95 | 37/2.03 | 1.2 | 41.2 | 2.5 | 46.2 | 7120 |
| FTX400 1RZ1MZ1-R 3G150/50 | 3×150/50 | 37/2.25 | 1.4 | 45.2 | 2.5 | 57.0 | 7431 |
| FTX400 1RZ1MZ1-R 3G150/70 | 3×150/70 | 37/2.25 | 1.4 | 45.2 | 2.5 | 58.1 | 7565 |
| FTX400 1RZ1MZ1-R 3G150/95 | 3x150/95 | 37/2.25 | 1.4 | 45.5 | 2.5 | 59.4 | 8196 |
| FTX400 1RZ1MZ1-R 3G150/120 | 3x150/120 | 37/2.25 | 1.4 | 46.0 | 2.5 | 50.6 | 8590 |
| FTX400 1RZ1MZ1-R 3G185/70 | 3×185/70 | 37/2.52 | 1.6 | 50.4 | 2.5 | 51.6 | 8950 |
| FTX400 1RZ1MZ1-R 3G185/95 | 3xI85/95 | 37/2.52 | 1.6 | 50.6 | 2.5 | 53.2 | 9573 |
| FTX400 1RZ1MZ1-R 3G185/120 | 3x185/120 | 37/2.52 | 1.6 | 51.0 | 2.5 | 54.3 | 9968 |
| FTX400 1RZ1MZ1-R 3G185/150 | 3x185/150 | 37/2.52 | 1.6 | 51.6 | 2.5 | 55.3 | 1023 |
| FTX400 1RZ1MZ1-R 3G240/95 | 3×240/95 | 61/2.25 | 1.7 | 58.0 | 2.5 | 56.7 | 11620 |
| FTX400 1RZ1MZ1-R 3G240/120 | 3x240/120 | 61/2.25 | 1.7 | 59.0 | 2.5 | 58.3 | 12015 |
| FTX400 1RZ1MZ1-R 3G240/150 | 3x240/150 | 61/2.25 | 1.7 | 60.0 | 2.5 | 60.4 | 12373 |
| FTX400 1RZ1MZ1-R 3G240/185 | 3x240/185 | 61/2.25 | 1.7 | 60.0 | 2.5 | 62.1 | 1350 |
| FTX400 1RZ1MZ1-R 3G300/120 | 3x300/120 | 61/2.52 | 1.8 | 64.2 | 2.5 | 63.5 | 14197 |
| FTX400 1RZ1MZ1-R 3G300/150 | 3x300/150 | 61/2.52 | 1.8 | 65.7 | 2.5 | 64.9 | 14556 |
| FTX400 1RZ1MZ1-R 3G300/185 | 3x300/I85 | 61/2.52 | 1.8 | 67 | 2.5 | 66.2 | 15015 |
| FTX400 1RZ1MZ1-R 3G300/240 | 3x300/240 | 61/2.52 | 1.8 | 67 | 2.5 | 67.4 | 15697 |
| 4 CORES | |||||||
| FTX400 1RZ1MZ1-R 4G1.5 | 4x1.5 | 7/0.53 | 0.7 | 10.0 | 0.9 | 13.3 | 390 |
| FTX400 1RZ1MZ1-R 4G2.5 | 4x2.5 | 7/0.67 | 0.7 | 10.8 | 0.9 | 15.0 | 470 |
| FTX400 1RZ1MZ1-R 4G4 | 4x4 | 7/0.85 | 0.7 | 12.1 | 0.9 | 16.4 | 580 |
| FTX400 1RZ1MZ1-R 4G6 | 4x6 | 7/1.04 | 0.7 | 13.5 | 1.25 | 18.7 | 705 |
| FTX400 1RZ1MZ1-R 4G10 | 4x10 | 7/1.35 | 0.7 | 15.7 | 1.25 | 21.1 | 1090 |
| FTX400 1RZ1MZ1-R 4G16 | 4x16 | 7/1.70 | 0.7 | 18.2 | 1.6 | 23.4 | 1320 |
| FTX400 1RZ1MZ1-R 4G25 | 4x25 | 7/2.14 | 0.9 | 22.4 | 1.6 | 28.9 | 1840 |
| FTX400 1RZ1MZ1-R 4G35 | 4x35(S) | 7/2.52 | 0.9 | 24.4 | 1.6 | 31.9 | 2310 |
| FTX400 1RZ1MZ1-R 4G50 | 4x50(S) | 19/1.78 | 1.0 | 28.0 | 1.6 | 32 | 2970 |
| FTX400 1RZ1MZ1-R 4G70 | 4x70(S) | 19/2.14 | 1.1 | 32.2 | 2.0 | 37.7 | 4240 |
| FTX400 1RZ1MZ1-R 4G95 | 4x95(S) | 19/2.52 | 1.1 | 36.0 | 2.0 | 41.7 | 5400 |
| FTX400 1RZ1MZ1-R 4G120 | 4x120(S) | 37/2.03 | 1.2 | 38.0 | 2.5 | 47.1 | 7000 |
| FTX400 1RZ1MZ1-R 4G150 | 4x150(S) | 37/2.25 | 1.4 | 42.8 | 2.5 | 51.4 | 8350 |
| FTX400 1RZ1MZ1-R 4G185 | 4x185(S) | 37/2.52 | 1.6 | 48.4 | 2.5 | 56.6 | 10130 |
| FTX400 1RZ1MZ1-R 4G240 | 4x240(S) | 61/2.25 | 1.7 | 55.0 | 2.5 | 63.0 | 12840 |
| FTX400 1RZ1MZ1-R 4G300 | 4x300(S) | 61/2.52 | 1.8 | 59.6 | 2.5 | 68.8 | 15530 |
| FTX400 1RZ1MZ1-R 4G400 | 4x400(S) | 61/2.85 | 2.0 | 66.1 | 3.15 | 78.1 | 19950 |
| 4 CORES + 1 EARTH CONDUCTOR | |||||||
| FTX400 1RZ1MZ1-R 4G16/6 | 4xl6/6 | 7/1.35 | 0.7 | 17.9 | 1.25 | 25.1 | 1356 |
| FTX400 1RZ1MZ1-R 4G16/10 | 4x16/l0 | 7/1.70 | 0.7 | 20.6 | 1.25 | 26.0 | 1390 |
| FTX400 1RZ1MZ1-R 4G25/6 | 4x25/6 | 7/2.14 | 0.7 | 24.1 | 1.25 | 29.0 | 1900 |
| FTX400 1RZ1MZ1-R 4G25/10 | 4x25/10 | 7/2.14 | 0.9 | 24.9 | 1.25 | 29.4 | 1956 |
| FTX400 1RZ1MZ1-R 4G25/16 | 4x25/16 | 7/2.14 | 0.9 | 25.3 | 1.25 | 30.0 | 2012 |
| FTX400 1RZ1MZ1-R 4G35/10 | 4×35/10 | 7/2.52 | 0.9 | 25.4 | 1.25 | 32.1 | 2710 |
| FTX400 1RZ1MZ1-R 4G35/16 | 4×35/16 | 7/2.52 | 0.9 | 25.6 | 1.6 | 33.4 | 2940 |
| FTX400 1RZ1MZ1-R 4G35/25 | 4×35/25 | 7/2.52 | 0.9 | 26.2 | 1.6 | 34.0 | 3050 |
| FTX400 1RZ1MZ1-R 4G50/16 | 4×50/16 | 19/1.78 | 1.0 | 28.5 | 1.6 | 33 | 3560 |
| FTX400 1RZ1MZ1-R 4G50/25 | 4×50/25 | 19/1.78 | 1.0 | 29.2 | 1.6 | 35.6 | 3670 |
| FTX400 1RZ1MZ1-R 4G50/35 | 4x50/35 | 19/1.78 | 1.0 | 30.0 | 1.6 | 38.2 | 3759 |
| FTX400 1RZ1MZ1-R 4G70/25 | 4×70/25 | 19/2.14 | 1.1 | 34 | 2.0 | 38.6 | 4980 |
| FTX400 1RZ1MZ1-R 4G70/35 | 4x70/35 | 19/2.14 | 1.1 | 34.5 | 2.0 | 40.6 | 5036 |
| FTX400 1RZ1MZ1-R 4G70/50 | 4x70/50 | 19/2.14 | 1.1 | 35 | 2.0 | 42.9 | 5468 |
| FTX400 1RZ1MZ1-R 4G95/25 | 4×95/25 | 19/2.52 | 1.1 | 36.7 | 2.0 | 43.2 | 6215 |
| FTX400 1RZ1MZ1-R 4G95/35 | 4×95/35 | 19/2.52 | 1.1 | 37.2 | 2.0 | 46.3 | 6325 |
| FTX400 1RZ1MZ1-R 4G95/50 | 4×95/50 | 19/2.52 | 1.1 | 37.6 | 2.0 | 48.5 | 6455 |
| FTX400 1RZ1MZ1-R 4G95/70 | 4×95/50 | 19/2.52 | 1.1 | 38.0 | 2.0 | 50.7 | 6954 |
| FTX400 1RZ1MZ1-R 3G120/35 | 3×120/35 | 37/2.03 | 1.2 | 39.4 | 2.5 | 54.2 | 7968 |
| FTX400 1RZ1MZ1-R 4G120/50 | 4×120/50 | 37/2.03 | 1.2 | 39.9 | 2.5 | 55.3 | 8280 |
| FTX400 1RZ1MZ1-R 4G120/70 | 4x120/70 | 37/2.03 | 1.2 | 40.3 | 2.5 | 55.9 | 8511 |
| FTX400 1RZ1MZ1-R 4G120/95 | 4×120/95 | 37/2.03 | 1.2 | 41.2 | 2.5 | 56.4 | 8790 |
| FTX400 1RZ1MZ1-R 4G150/50 | 4×150/50 | 37/2.25 | 1.4 | 44.9 | 2.5 | 55.3 | 8723 |
| FTX400 1RZ1MZ1-R 4G150/70 | 4×150/70 | 37/2.25 | 1.4 | 45.2 | 2.5 | 56.48 | 8879 |
| FTX400 1RZ1MZ1-R 4G150/95 | 4x150/95 | 37/2.25 | 1.4 | 45.5 | 2.5 | 57.59 | 10179 |
| FTX400 1RZ1MZ1-R 4G150/120 | 4x150/120 | 37/2.25 | 1.4 | 46.0 | 2.5 | 58.65 | 10739 |
| FTX400 1RZ1MZ1-R 4G185/70 | 4×185/70 | 37/2.52 | 1.6 | 50.4 | 2.5 | 62.03 | 11200 |
| FTX400 1RZ1MZ1-R 4G185/95 | 4xI85/95 | 37/2.52 | 1.6 | 50.6 | 2.5 | 63.19 | 1263 |
| FTX400 1RZ1MZ1-R 4G185/120 | 4x185/120 | 37/2.52 | 1.6 | 51.0 | 2.5 | 64.23 | 13050 |
| FTX400 1RZ1MZ1-R 4G185/150 | 4x185/150 | 37/2.52 | 1.6 | 51.6 | 2.5 | 65.38 | 13680 |
| FTX400 1RZ1MZ1-R 4G240/95 | 4×240/95 | 61/2.25 | 1.7 | 58.0 | 2.5 | 71.53 | 14420 |
| FTX400 1RZ1MZ1-R 4G240/120 | 4x240/120 | 61/2.25 | 1.7 | 59.0 | 2.5 | 72.76 | 14763 |
| FTX400 1RZ1MZ1-R 4G240/150 | 4x240/150 | 61/2.25 | 1.7 | 60.0 | 2.5 | 73.10 | 15241 |
| FTX400 1RZ1MZ1-R 4G240/185 | 4x240/185 | 61/2.25 | 1.7 | 61.5 | 2.5 | 74.0 | 1682 |
| FTX400 1RZ1MZ1-R 4G300/120 | 4x300/150 | 61/2.52 | 1.8 | 64.2 | 2.5 | 75.08 | 18050 |
| FTX400 1RZ1MZ1-R 4G300/150 | 4x300/150 | 61/2.52 | 1.8 | 65.7 | 2.5 | 76.44 | 18662 |
| FTX400 1RZ1MZ1-R 4G300/185 | 4x300/I85 | 61/2.52 | 1.8 | 67 | 2.5 | 77.30 | 19031 |
| FTX400 1RZ1MZ1-R 4G300/240 | 4x300/240 | 61/2.52 | 1.8 | 67 | 2.5 | 78.55 | 19878 |
| 5 CORES | |||||||
| FTX400 1RZ1MZ1-R 5G1.5 | 5x1.5 | 7/0.53 | 0.6 | 9.9 | 0.9 | 14.3 | 430 |
| FTX400 1RZ1MZ1-R 5G2.5 | 5x2.5 | 7/0.67 | 0.7 | 10.8 | 0.9 | 16.1 | 545 |
| FTX400 1RZ1MZ1-R 5G4 | 5x4 | 7/0.85 | 0.7 | 12.1 | 0.9 | 17.8 | 680 |
| FTX400 1RZ1MZ1-R 5G6 | 5x6 | 7/1.04 | 0.7 | 15.8 | 1.5 | 20 | 840 |
| FTX400 1RZ1MZ1-R 5G10 | 5x10 | 7/1.35 | 0.7 | 24 | 2.8 | 22.9 | 1105 |
| FTX400 1RZ1MZ1-R 5G16 | 5x16 | 7/1.70 | 0.7 | 27 | 2.8 | 26.6 | 1450 |
| FTX400 1RZ1MZ1-R 5G25 | 5x25 | 7/2.14 | 0.9 | 34 | 2.8 | 31.5 | 2245 |
| FTX400 1RZ1MZ1-R 5G35 | 5x35(S) | 7/2.52 | 0.9 | 24.4 | 1.6 | 34.8 | 2840 |
| FTX400 1RZ1MZ1-R 5G50 | 5x50(S) | 19/1.78 | 1.0 | 28.0 | 1.6 | 40.4 | 3895 |
| FTX400 1RZ1MZ1-R 5G70 | 5x70(S) | 19/2.14 | 1.1 | 32.2 | 2.0 | 46.3 | 5145 |
| FTX400 1RZ1MZ1-R 5G95 | 5x95(S) | 19/2.52 | 1.1 | 36.0 | 2.0 | 53.2 | 6941 |
| FTX400 1RZ1MZ1-R 5G120 | 5x120(S) | 37/2.03 | 1.2 | 38.0 | 2.5 | 58.3 | 9154 |
| FTX400 1RZ1MZ1-R 5G150 | 5x150(S) | 37/2.25 | 1.4 | 42.8 | 2.5 | 64.3 | 10372 |
| FTX400 1RZ1MZ1-R 5G185 | 5x185(S) | 37/2.52 | 1.6 | 48.4 | 2.5 | 71.5 | 12828 |
| FTX400 1RZ1MZ1-R 5G240 | 5x240(S) | 61/2.25 | 1.7 | 55.0 | 2.5 | 80 | 15980 |
| FTX400 1RZ1MZ1-R 5G300 | 5x300(S) | 61/2.52 | 1.8 | 59.6 | 2.5 | 86.1 | 19521 |
| FTX400 1RZ1MZ1-R 5G400 | 5x400(S) | 61/2.85 | 2.0 | 66.1 | 3.15 | 96.3 | 25116 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C Ambient Temperature : 30°C
| CONDUCTOR CROSSSECTIONAL AREA | REFERENCE METHOD 1 (CLIPPED DIRECT) | REFERENCE METHOD 11 (ON A PERFORATED HORIZONTAL CABLE TRAYOR REFERENCE METHOD 13 [FREE AIR] ) | IN SINGLE-WAY DUCTS | LAID DIRECT IN GROUND | ||||
|---|---|---|---|---|---|---|---|---|
| ONE 2-CORE CABLE SINGLE PHASE A.C. OR D.C. | ONE 3-CORE OR 4-CORE CABLE 3-PHASE A.C. | ONE 2-CORE CABLE SINGLE PHASE A.C. OR D.C. | ONE 3-CORE OR 4-CORE CABLE 3-PHASE A.C. | ONE 2-CORE CABLE SINGLE PHASE A.C. OR D.C. | ONE 3-CORE OR 4-CORE CABLE 3-PHASE A.C. | ONE 2-CORE CABLE SINGLE PHASE A.C. OR D.C. | ONE 3-CORE OR 4-CORE CABLE 3-PHASE A.C. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| MM2 | A | A | A | A | A | A | A | A |
| 1.5 | 27 | 23 | 29 | 25 | - | 23 | - | 28 |
| 2.5 | 36 | 31 | 39 | 33 | - | 30 | - | 36 |
| 4 | 49 | 42 | 52 | 44 | - | 40 | - | 48 |
| 6 | 62 | 53 | 66 | 56 | - | 50 | - | 60 |
| 10 | 85 | 73 | 90 | 78 | - | 65 | - | 80 |
| 16 | 110 | 94 | 115 | 99 | 115 | 94 | 140 | 115 |
| 25 | 146 | 124 | 152 | 131 | 145 | 125 | 180 | 150 |
| 35 | 180 | 154 | 188 | 162 | 175 | 150 | 215 | 180 |
| 50 | 219 | 187 | 228 | 197 | 210 | 175 | 255 | 215 |
| 70 | 279 | 238 | 291 | 251 | 260 | 215 | 315 | 265 |
| 95 | 338 | 289 | 354 | 304 | 310 | 260 | 380 | 315 |
| 120 | 392 | 335 | 410 | 353 | 355 | 300 | 430 | 360 |
| 150 | 451 | 386 | 472 | 406 | 400 | 335 | 480 | 405 |
| 185 | 515 | 441 | 539 | 463 | 455 | 380 | 540 | 460 |
| 240 | 607 | 520 | 636 | 546 | 520 | 440 | 630 | 530 |
| 300 | 698 | 599 | 732 | 628 | 590 | 495 | 700 | 590 |
| 400 | 787 | 673 | 847 | 728 | 660 | 560 | 790 | 670 |
| CONDUCTOR CROSS-SECTIONAL AREA | 2-CORE CABLE D.C. | 2 CABLES, SINGLE-PHASE A.C. | 3 OR 4 CABLES, 3-PHASE A.C. | 2 CABLES, SINGLE- PHASE A.C. | 3 OR 4 CABLES, 3-PHASE A.C. | ||||
|---|---|---|---|---|---|---|---|---|---|
| IN DUCTS OR IN GROUND | IN DUCTS OR IN GROUND | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | ||||
| MM2 | MV/A/M | MV/A/M | MV/A/M | MV/A/M | MV/A/M | ||||
| 1.5 | 31.0 | 31.0 | 27.0 | 31.0 | 25.0 | ||||
| 2.5 | 19.0 | 19.0 | 16.0 | 19.0 | 15.0 | ||||
| 4 | 12.0 | 12.0 | 10.0 | 12.0 | 9.7 | ||||
| 6 | 7.9 | 7.9 | 6.8 | 7.9 | 6.5 | ||||
| 10 | 4.7 | 4.7 | 4.0 | 4.7 | 3.9 | ||||
| 16 | 2.9 | 2.9 | 2.5 | 2.9 | 2.6 | ||||
| r | x | z | r | x | z | ||||
| 25 | 1.850 | 1.350 | 0.160 | 1.900 | 1.600 | 0.140 | 1.650 | 1.900 | 1.600 |
| 35 | 1.350 | 1.350 | 0.155 | 1.350 | 1.150 | 0.135 | 1.150 | 1.350 | 1.200 |
| 50 | 0.980 | 0.990 | 0.155 | 1.000 | 0.860 | 0.135 | 0.870 | 1.000 | 0.870 |
| 70 | 0.670 | 0.670 | 0.150 | 0.690 | 0.590 | 0.130 | 0.600 | 0.690 | 0.610 |
| 95 | 0.490 | 0.500 | 0.150 | 0.520 | 0.430 | 0.130 | 0.450 | 0.520 | 0.450 |
| 120 | 0.390 | 0.400 | 0.145 | 0.420 | 0.340 | 0.130 | 0.370 | 0.420 | 0.360 |
| 150 | 0.310 | 0.320 | 0.145 | 0.350 | 0.280 | 0.125 | 0.300 | 0.350 | 0.300 |
| 185 | 0.250 | 0.260 | 0.145 | 0.290 | 0.220 | 0.125 | 0.260 | 0.290 | 0.250 |
| 240 | 0.195 | 0.200 | 0.140 | 0.240 | 0.175 | 0.125 | 0.210 | 0.240 | 0.210 |
| 300 | 0.155 | 0.160 | 0.140 | 0.210 | 0.140 | 0.120 | 0.185 | 0.210 | 0.190 |
| 400 | 0.120 | 0.130 | 0.140 | 0.190 | 0.115 | 0.120 | 0.165 | 0.190 | 0.180 |
Note : r = conductor resistance at operating temperature x = reactance z = impedance
+852 6230 0392
Caledonian Cables
live:1cb87739a29fb08c
