The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
Basic design to IEC 60502-1
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482- 332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
600/1000V

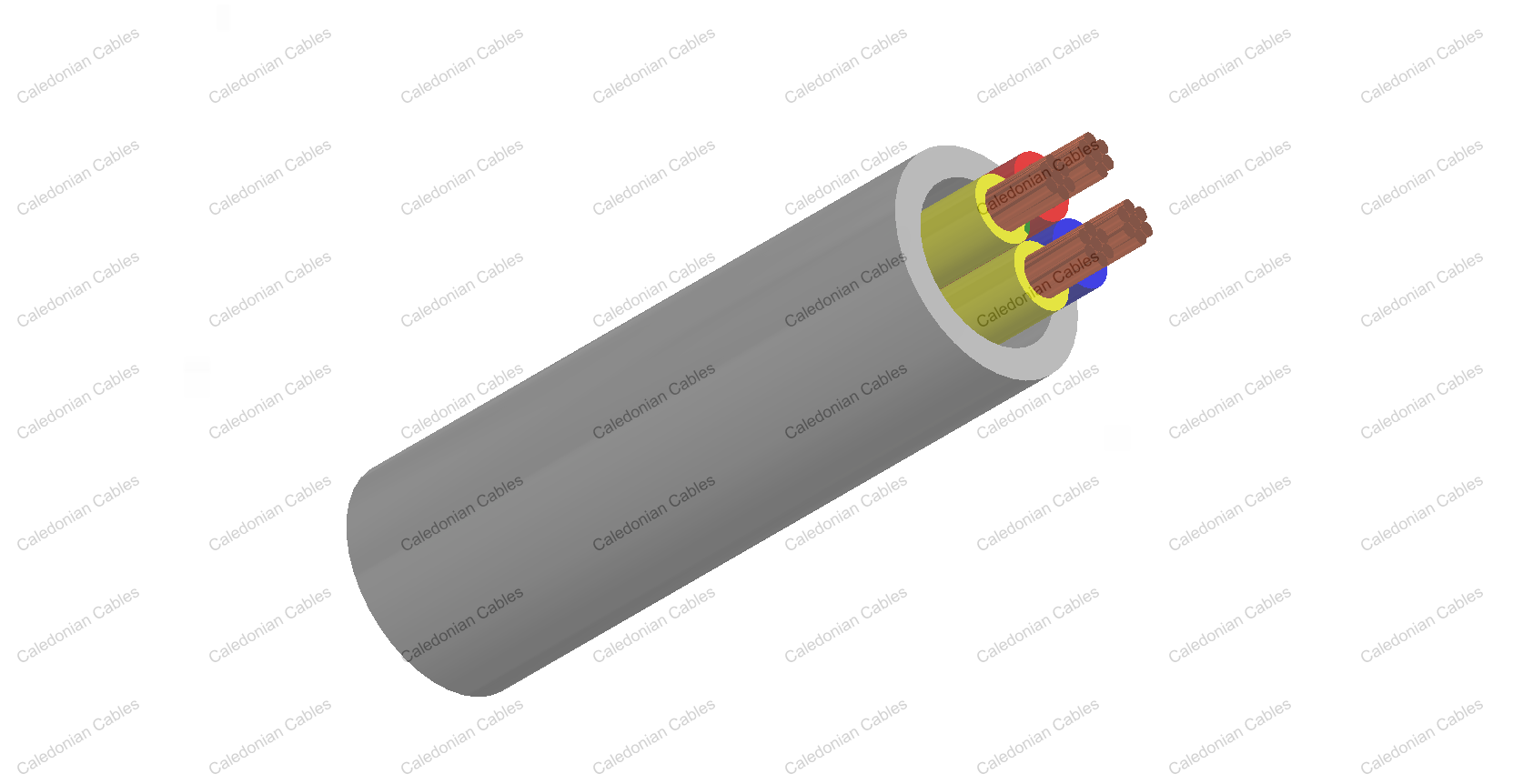

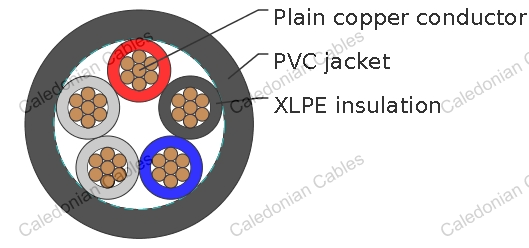

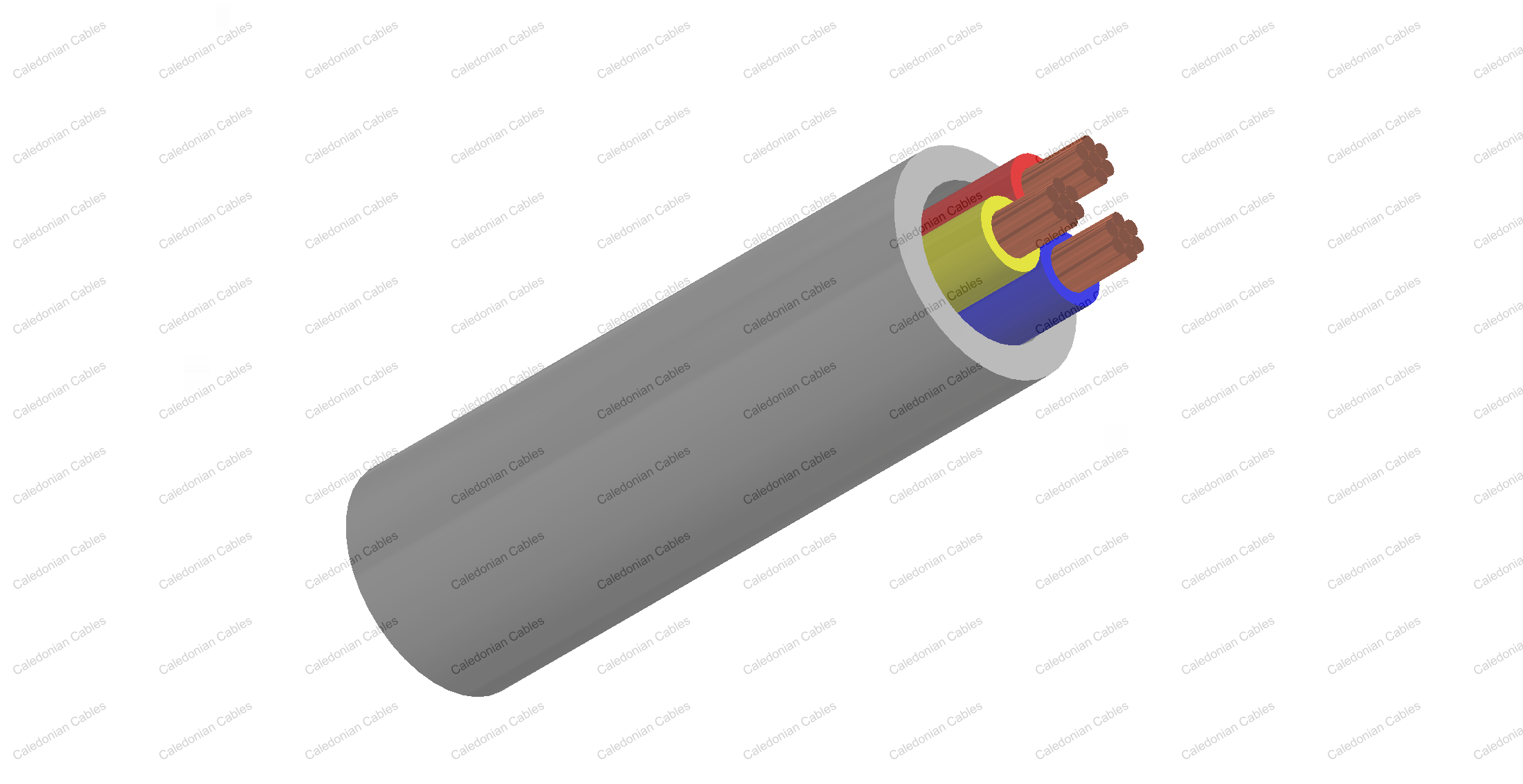

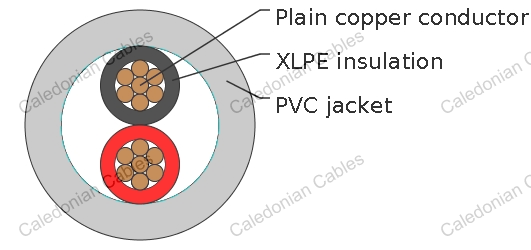

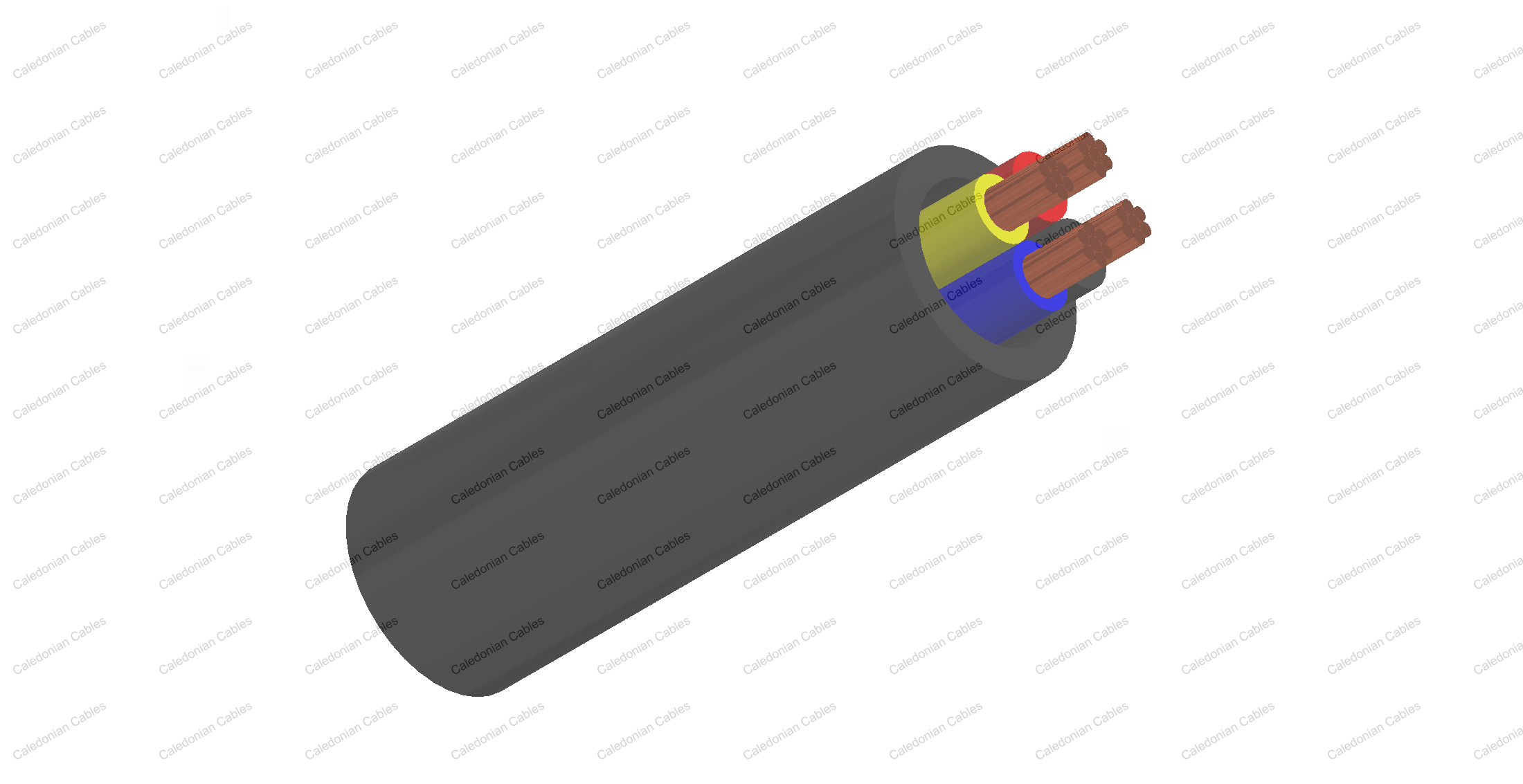

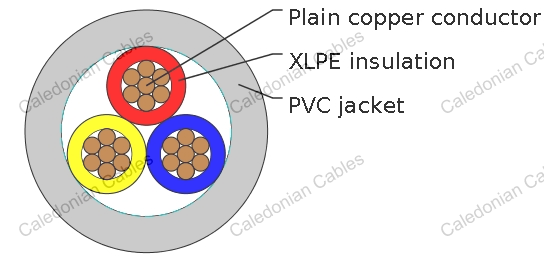

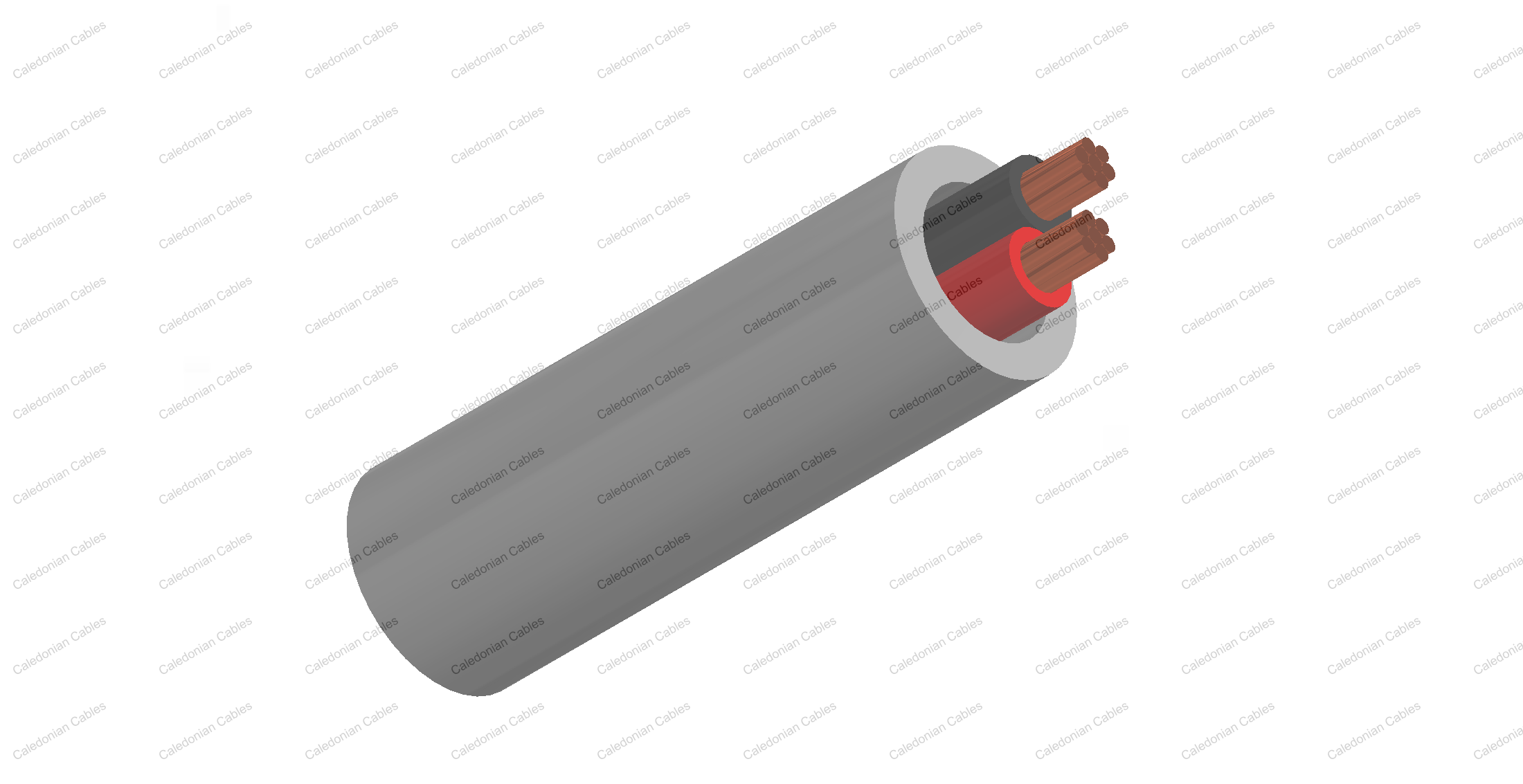

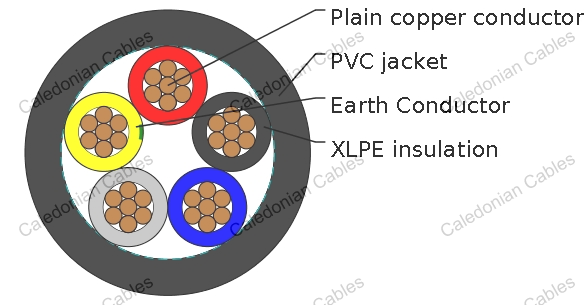

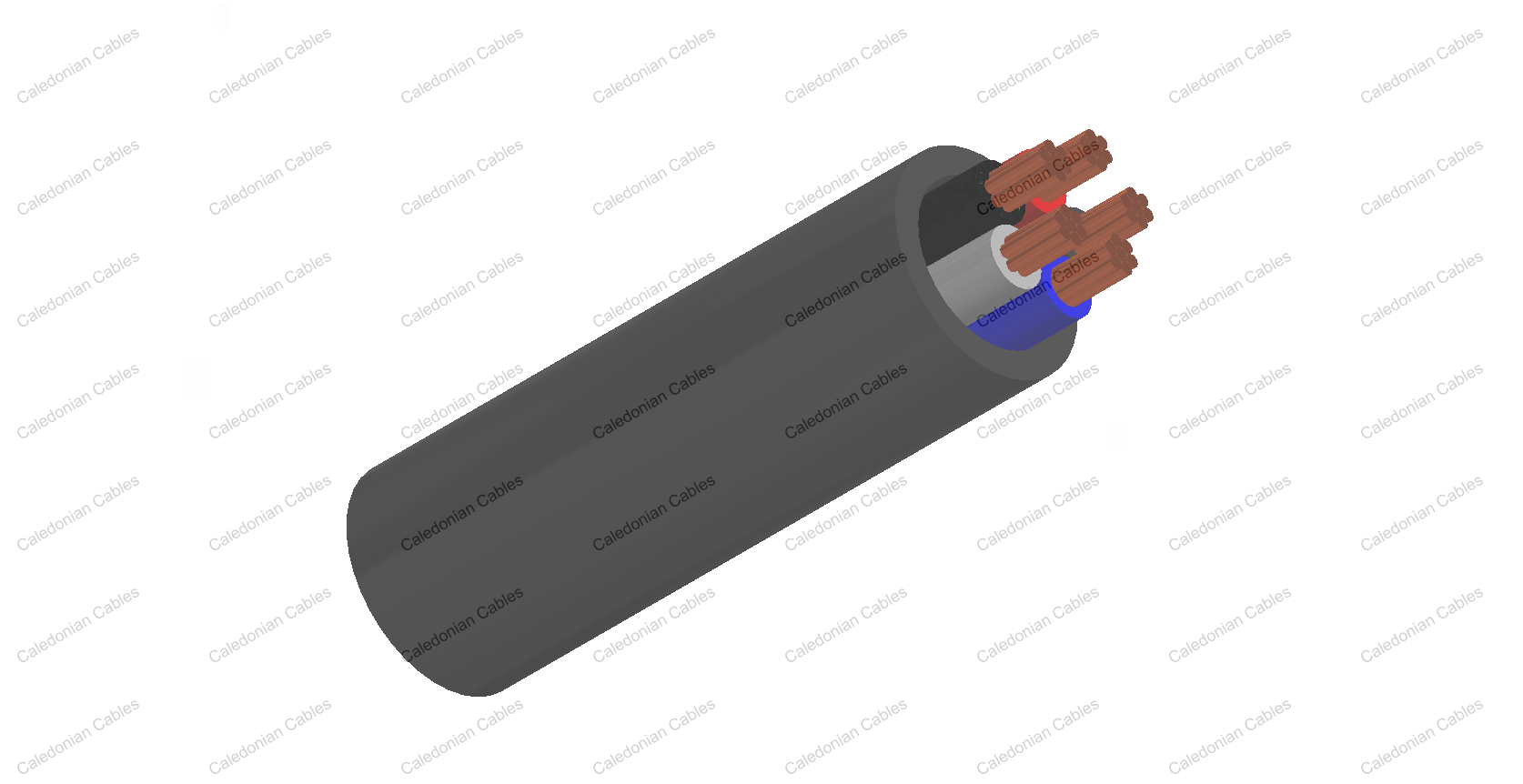

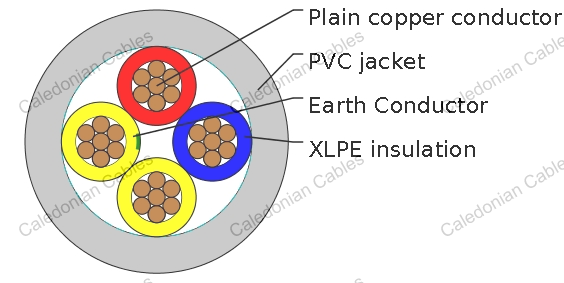

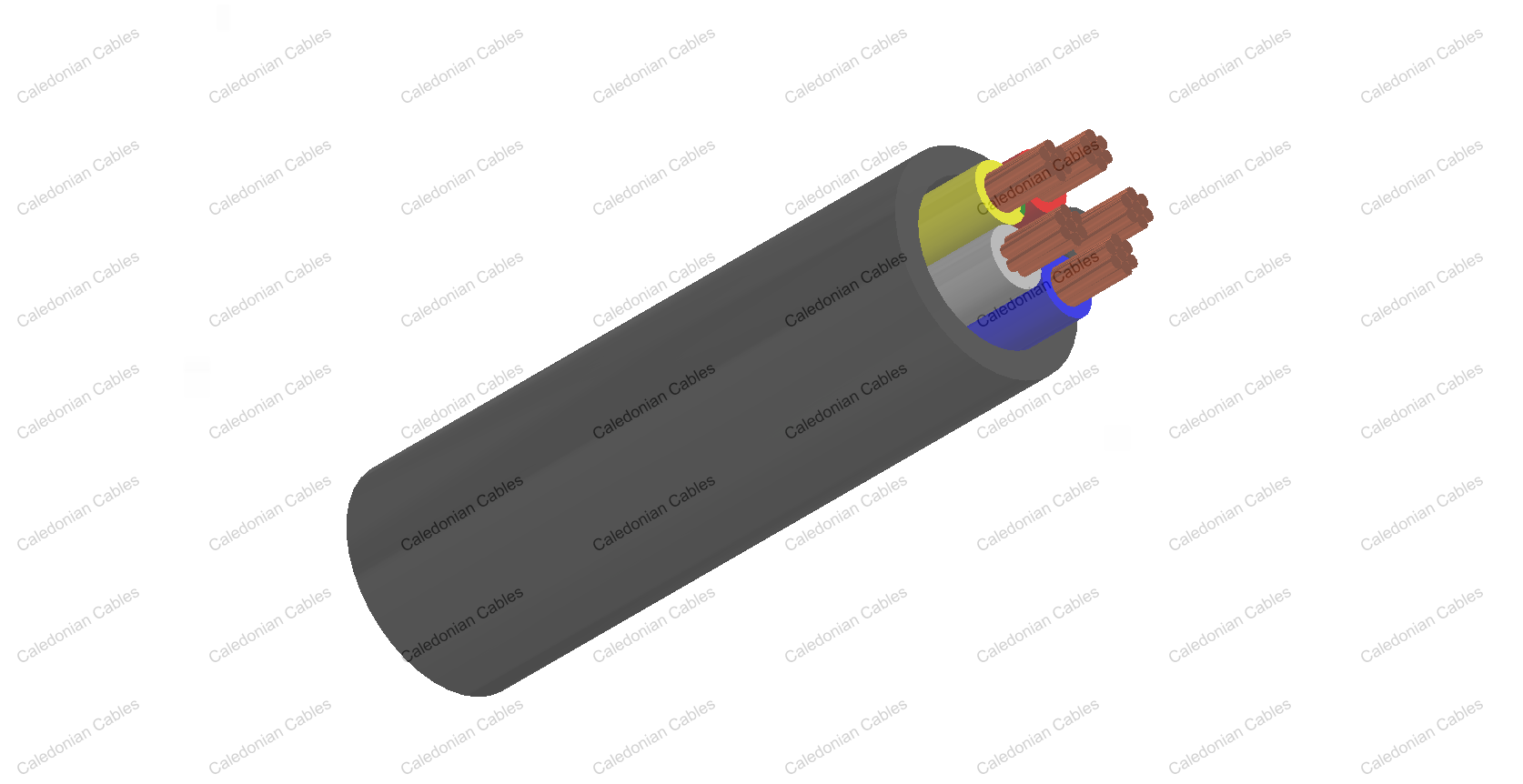

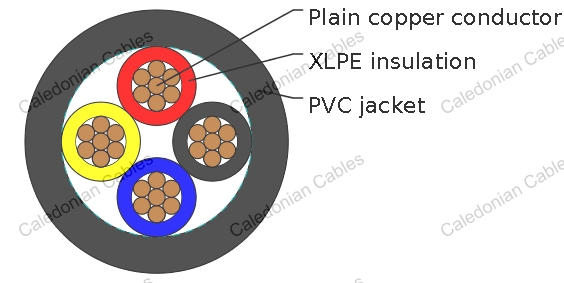

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2. Insulation: Extruded cross-linked XLPE compound. Outer Sheath: Thermoplastic PVC compound.
Insulation Colour as per BS7671
|
|
With Earth Conductor | Without Earth Conductor |
| 2 Cores | - | Brown, Blue |
| 3 Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4 Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5 Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Temperature Range During Operation: -40°C ~ 70°C Temperature Range during Installation : -5°C ~ 50°C Minimum Bending Radius: 6 x OD
| DIELECTRIC TEST: | 3500 V r.m.s. x 5’ ( core / core ) |
|---|---|
| INSULATION RESISTANCE | 500 MΩ x km ( at 20°C ) |
| SHORT CIRCUIT TEMPERATURE | 250°C ( up to 5 secs ) |
| CABLE CODE | CONDUCTOR | NOMINAL OVERALL DIAMETER | APPROX. WEIGHT | ||
|---|---|---|---|---|---|
| NO. OF CORE X CROSS SECTION / CPC CROSS SECTION | NO./NOMINAL DIAMETER OF STRANDS | NOMINAL INSULATION THICKNESS | |||
| NO.×MM2 | NO./MM | MM | MM | MM | |
| 2 CORES | |||||
| FGD400 1RV-R 2G1.5 | 2x1.5 | 7/0.53 | 0.7 | 10.0 | 126 |
| FGD400 1RV-R 2G2.5 | 2x2.5 | 7/0.67 | 0.7 | 10.8 | 158 |
| FGD400 1RV-R 2G4 | 2x4 | 7/0.85 | 0.7 | 11.9 | 205 |
| FGD400 1RV-R 2G6 | 2x6 | 7/1.04 | 0.7 | 13.0 | 264 |
| FGD400 1RV-R 2G10 | 2x10 | 7/1.35 | 0.7 | 14.9 | 378 |
| FGD400 1RV-R 2G16 | 2x16 | 7/1.70 | 0.7 | 17.0 | 534 |
| FGD400 1RV-R 2G25 | 2x25 | 7/2.14 | 0.9 | 20.4 | 650 |
| FGD400 1RV-R 2G35 | 2x35 | 7/2.52 | 0.9 | 22.7 | 880 |
| 3 CORES | |||||
| FGD400 1RV-R 3G1.5 | 3x1.5 | 7/0.53 | 0.7 | 10.5 | 145 |
| FGD400 1RV-R 3G2.5 | 3x2.5 | 7/0.67 | 0.7 | 11.4 | 185 |
| FGD400 1RV-R 3G4 | 3x4 | 7/0.85 | 0.7 | 12.5 | 247 |
| FGD400 1RV-R 3G6 | 3x6 | 7/1.04 | 0.7 | 13.8 | 323 |
| FGD400 1RV-R 3G10 | 3x10 | 7/1.35 | 0.7 | 15.8 | 474 |
| FGD400 1RV-R 3G16 | 3x16 | 7/1.70 | 0.7 | 18.0 | 682 |
| FGD400 1RV-R 3G25 | 3x25 | 7/2.14 | 0.9 | 21.7 | 910 |
| FGD400 1RV-R 3G35 | 3x35 | 7/2.52 | 0.9 | 24.0 | 1180 |
| FGD400 1RV-R 3G50 | 3x50(S) | 19/1.78 | 1.0 | 25.5 | 1600 |
| FGD400 1RV-R 3G70 | 3x70(S) | 19/2.14 | 1.1 | 29.0 | 2240 |
| FGD400 1RV-R 3G95 | 3x95(S) | 19/2.52 | 1.1 | 33.5 | 3050 |
| FGD400 1RV-R 3G120 | 3x120(S) | 37/2.03 | 1.2 | 37.5 | 3800 |
| FGD400 1RV-R 3G150 | 3x150(S) | 37/2.25 | 1.4 | 40.5 | 4640 |
| FGD400 1RV-R 3G185 | 3x185(S) | 37/2.52 | 1.6 | 45.0 | 5870 |
| FGD400 1RV-R 3G40 | 3x240(S) | 61/2.25 | 1.7 | 50.5 | 7670 |
| FGD400 1RV-R 3G300 | 3x300(S) | 61/2.52 | 1.8 | 57.0 | 9460 |
| FGD400 1RV-R 3G400 | 3x400(S) | 61/2.85 | 2.0 | 63.0 | 11945 |
| 3 CORE + 1 EARTH CONDUCTOR | |||||
| FGD400 1RV-R 3G16/6 | 3x16/6 | 7/1.70 | 0.7 | 16.5 | 698 |
| FGD400 1RV-R 3G16/10 | 3x16/10 | 7/1.70 | 0.7 | 18.85 | 793 |
| FGD400 1RV-R 3G25/6 | 3x25/6 | 7/2.14 | 0.9 | 21.7 | 956 |
| FGD400 1RV-R 3G25/10 | 3x25/10 | 7/2.14 | 0.9 | 22.1 | 1021 |
| FGD400 1RV-R 3G25/16 | 3x25/16 | 7/2.14 | 0.9 | 23.0 | 1070 |
| FGD400 1RV-R 3G35/10 | 3x35/10 | 19/1.53 | 0.9 | 22.9 | 1263 |
| FGD400 1RV-R 3G35/16 | 3x35/16 | 19/1.53 | 0.9 | 24.3 | 1349 |
| FGD400 1RV-R 3G35/25 | 3x35/25 | 19/1.53 | 0.9 | 25.2 | 1470 |
| FGD400 1RV-R 3G50/16 | 3x50/16 | 19/1.78 | 1.0 | 26.1 | 1769 |
| FGD400 1RV-R 3G50/25 | 3x50/25 | 19/1.78 | 1.0 | 27.3 | 1890 |
| FGD400 1RV-R 3G50/35 | 3x50/35 | 19/1.78 | 1.0 | 27.8 | 1995 |
| FGD400 1RV-R 3G70/25 | 3x70/25 | 19/2.14 | 1.1 | 30.2 | 2530 |
| FGD400 1RV-R 3G70/35 | 3x70/35 | 19/2.14 | 1.1 | 30.9 | 2660 |
| FGD400 1RV-R 3G70/50 | 3x70/50 | 19/2.14 | 1.1 | 31.5 | 2840 |
| FGD400 1RV-R 3G95/25 | 3x95/25 | 19/2.52 | 1.1 | 35.1 | 3340 |
| FGD400 1RV-R 3G95/35 | 3x95/35 | 19/2.52 | 1.1 | 36.0 | 3470 |
| FGD400 1RV-R 3G95/50 | 3x95/50 | 19/2.52 | 1.1 | 36.8 | 3650 |
| FGD400 1RV-R 3G95/70 | 3x95/70 | 19/2.52 | 1.1 | 36.9 | 3890 |
| FGD400 1RV-R 3G120/35 | 3x120/35 | 37/2.03 | 1.2 | 38.2 | 3920 |
| FGD400 1RV-R 3G120/50 | 3x120/50 | 37/2.03 | 1.2 | 39.1 | 4400 |
| FGD400 1RV-R 3G120/70 | 3x120/70 | 37/2.03 | 1.2 | 40.0 | 4610 |
| FGD400 1RV-R 3G120/95 | 3x120/95 | 37/2.03 | 1.2 | 41.2 | 4820 |
| FGD400 1RV-R 3G150/50 | 3x150/50 | 37/2.25 | 1.4 | 41.5 | 5240 |
| FGD400 1RV-R 3G150/70 | 3x150/70 | 37/2.25 | 1.4 | 42.3 | 5450 |
| FGD400 1RV-R 3G150/95 | 3x150/95 | 37/2.25 | 1.4 | 43.6 | 5660 |
| FGD400 1RV-R 3G150/120 | 3x150/120 | 37/2.25 | 1.4 | 44.8 | 6240 |
| FGD400 1RV-R 3G185/70 | 3x185/70 | 37/2.52 | 1.6 | 47.5 | 6680 |
| FGD400 1RV-R 3G185/95 | 3x185/95 | 37/2.52 | 1.6 | 47.9 | 6990 |
| FGD400 1RV-R 3G185/120 | 3x185/120 | 37/2.52 | 1.6 | 48.5 | 7395 |
| FGD400 1RV-R 3G185/150 | 3x185/150 | 37/2.52 | 1.6 | 49.2 | 7580 |
| FGD400 1RV-R 3G240/95 | 3x240/95 | 61/2.25 | 1.7 | 53.4 | 8690 |
| FGD400 1RV-R 3G240/120 | 3x240/120 | 61/2.25 | 1.7 | 54.9 | 9095 |
| FGD400 1RV-R 3G240/150 | 3x240/150 | 61/2.25 | 1.7 | 55.6 | 9380 |
| FGD400 1RV-R 3G240/185 | 3x240/185 | 61/2.25 | 1.7 | 56.8 | 9687 |
| FGD400 1RV-R 3G300/120 | 3x300/120 | 61/2.52 | 1.8 | 58.1 | 10480 |
| FGD400 1RV-R 3G300/150 | 3x300/150 | 61/2.52 | 1.8 | 57.3 | 11170 |
| FGD400 1RV-R 3G300/185 | 3x300/185 | 61/2.52 | 1.8 | 58.7 | 11480 |
| FGD400 1RV-R 3G300/240 | 3x300/240 | 61/2.52 | 1.8 | 62.4 | 11290 |
| 4 CORES | |||||
| FGD400 1RV-R 4G1.5 | 4x1.5 | 7/0.53 | 0.7 | 11.3 | 169 |
| FGD400 1RV-R 4G2.5 | 4x2.5 | 7/0.67 | 0.7 | 12.3 | 220 |
| FGD400 1RV-R 4G4 | 4x4 | 7/0.85 | 0.7 | 13.6 | 297 |
| FGD400 1RV-R 4G6 | 4x6 | 7/1.04 | 0.7 | 15.0 | 392 |
| FGD400 1RV-R 4G10 | 4x10 | 7/1.35 | 0.7 | 17.2 | 585 |
| FGD400 1RV-R 4G16 | 4x16 | 7/1.70 | 0.7 | 19.7 | 851 |
| FGD400 1RV-R 4G25 | 4x25 | 7/2.14 | 0.9 | 23.9 | 1200 |
| FGD400 1RV-R 4G35 | 4x35(S) | 7/2.52 | 0.9 | 25.0 | 1600 |
| FGD400 1RV-R 4G50 | 4x50(S) | 19/1.78 | 1.0 | 28.0 | 2200 |
| FGD400 1RV-R 4G70 | 4x70(S) | 19/2.14 | 1.1 | 32.0 | 3050 |
| FGD400 1RV-R 4G95 | 4x95(S) | 19/2.52 | 1.1 | 37.0 | 4070 |
| FGD400 1RV-R 4G120 | 4x120(S) | 37/2.03 | 1.2 | 42.0 | 5915 |
| FGD400 1RV-R 4G150 | 4x150(S) | 37/2.25 | 1.4 | 46.0 | 6350 |
| FGD400 1RV-R 4G185 | 4x185(S) | 37/2.52 | 1.6 | 50.0 | 7890 |
| FGD400 1RV-R 4G240 | 4x240(S) | 61/2.25 | 1.7 | 57.0 | 10400 |
| FGD400 1RV-R 4G300 | 4x300(S) | 61/2.52 | 1.8 | 63.0 | 12810 |
| FGD400 1RV-R 4G400 | 4x400(S) | 61/2.85 | 2.0 | 71.0 | 15869 |
| FGD400 1RV-R 4G500 | 4x500(S) | 61/3.20 | 2.2 | 78.0 | 20300 |
| 4 CORE + 1 EARTH CONDUCTOR | |||||
| FGD400 1RV-R 4G16/6 | 4x16/6 | 7/1.70 | 0.7 | 19 | 654 |
| FGD400 1RV-R 4G16/10 | 4x16/10 | 7/1.70 | 0.7 | 21.9 | 962 |
| FGD400 1RV-R 4G25/6 | 4x25/10 | 7/2.14 | 0.7 | 25.3 | 1256 |
| FGD400 1RV-R 4G25/10 | 4x25/10 | 7/2.14 | 0.7 | 26.6 | 1311 |
| FGD400 1RV-R 4G25/16 | 4x25/16 | 7/2.14 | 0.7 | 27.3 | 1369 |
| FGD400 1RV-R 4G35/10 | 4x35/10 | 19/1.53 | 0.9 | 26.8 | 1658 |
| FGD400 1RV-R 4G35/16 | 4x35/16 | 19/1.53 | 0.9 | 27.6 | 1769 |
| FGD400 1RV-R 4G35/25 | 4x35/25 | 19/1.53 | 0.9 | 28.4 | 1890 |
| FGD400 1RV-R 4G50/16 | 4x50/16 | 19/1.78 | 1.0 | 29.4 | 2369 |
| FGD400 1RV-R 4G50/25 | 4x50/25 | 19/1.78 | 1.0 | 31.6 | 2490 |
| FGD400 1RV-R 4G50/35 | 4x50/35 | 19/1.78 | 1.0 | 33.2 | 2599 |
| FGD400 1RV-R 4G70/25 | 4x70/25 | 19/2.14 | 1.1 | 34.2 | 3340 |
| FGD400 1RV-R 4G70/35 | 4x70/35 | 19/2.14 | 1.1 | 35.6 | 3470 |
| FGD400 1RV-R 4G70/50 | 4x70/50 | 19/2.14 | 1.1 | 37.8 | 3650 |
| FGD400 1RV-R 4G95/25 | 4x95/25 | 19/2.52 | 1.1 | 42.6 | 4360 |
| FGD400 1RV-R 4G95/35 | 4x95/35 | 19/2.52 | 1.1 | 43.3 | 4510 |
| FGD400 1RV-R 4G95/50 | 4x95/50 | 19/2.52 | 1.1 | 44.1 | 4670 |
| FGD400 1RV-R 4G95/70 | 4x95/70 | 19/2.52 | 1.1 | 45.3 | 4783 |
| FGD400 1RV-R 4G120/35 | 4x120/35 | 37/2.03 | 1.2 | 42.6 | 6335 |
| FGD400 1RV-R 4G120/50 | 4x120/50 | 37/2.03 | 1.2 | 43.8 | 6515 |
| FGD400 1RV-R 4G120/70 | 4x120/70 | 37/2.03 | 1.2 | 45.9 | 6725 |
| FGD400 1RV-R 4G120/95 | 4x120/95 | 37/2.03 | 1.2 | 46.4 | 6920 |
| FGD400 1RV-R 4G150/50 | 4x150/50 | 37/2.25 | 1.4 | 47.3 | 6950 |
| FGD400 1RV-R 4G150/70 | 4x150/70 | 37/2.25 | 1.4 | 48.5 | 7160 |
| FGD400 1RV-R 4G150/95 | 4x150/95 | 37/2.25 | 1.4 | 50.2 | 7370 |
| FGD400 1RV-R 4G150/120 | 4x150/120 | 37/2.25 | 1.4 | 53.7 | 7965 |
| FGD400 1RV-R 4G185/70 | 4x185/70 | 37/2.52 | 1.6 | 52.4 | 8490 |
| FGD400 1RV-R 4G185/95 | 4x185/95 | 37/2.52 | 1.6 | 53.9 | 8700 |
| FGD400 1RV-R 4G185/120 | 4x185/120 | 37/2.52 | 1.6 | 55.6 | 8910 |
| FGD400 1RV-R 4G185/150 | 4x185/150 | 37/2.52 | 1.6 | 59.4 | 9260 |
| FGD400 1RV-R 4G240/95 | 4x240/95 | 61/2.25 | 1.7 | 61.9 | 11210 |
| FGD400 1RV-R 4G240/120 | 4x240/120 | 61/2.25 | 1.7 | 63.4 | 11420 |
| FGD400 1RV-R 4G240/150 | 4x240/150 | 61/2.25 | 1.7 | 63.9 | 12010 |
| FGD400 1RV-R 4G240/185 | 4x240/185 | 61/2.25 | 1.7 | 64.3 | 12090 |
| FGD400 1RV-R 4G300/120 | 4x300/120 | 61/2.52 | 1.8 | 64.0 | 12110 |
| FGD400 1RV-R 4G300/150 | 4x300/150 | 61/2.52 | 1.8 | 66.1 | 13830 |
| FGD400 1RV-R 4G300/185 | 4x300/185 | 61/2.52 | 1.8 | 71.5 | 14520 |
| FGD400 1RV-R 4G300/240 | 4x300/240 | 61/2.52 | 1.8 | 72.0 | 14830 |
| 5 CORES | |||||
| FGD400 1RV-R 5G1.5 | 5x1.5 | 7/0.53 | 0.7 | 13.7 | 205 |
| FGD400 1RV-R 5G2.5 | 5x2.5 | 7/0.85 | 0.7 | 14.9 | 265 |
| FGD400 1RV-R 5G4 | 5x4 | 7/0.85 | 0.7 | 16.3 | 360 |
| FGD400 1RV-R 5G6 | 5x6 | 7/1.04 | 0.7 | 18.2 | 478 |
| FGD400 1RV-R 5G10 | 5x10 | 7/1.04 | 0.7 | 20.8 | 720 |
| FGD400 1RV-R 5G16 | 5x16 | 7/1.04 | 0.7 | 24.2 | 1050 |
| FGD400 1RV-R 5G25 | 5x25 | 7/1.04 | 0.7 | 29.4 | 1485 |
| FGD400 1RV-R 5G35 | 5x35(S) | 7/2.52 | 0.9 | 30.3 | 1940 |
| FGD400 1RV-R 5G50 | 5x50(S) | 19/1.78 | 1.0 | 34 | 2667 |
| FGD400 1RV-R 5G70 | 5x70(S) | 19/2.14 | 1.1 | 38.5 | 3698 |
| FGD400 1RV-R 5G95 | 5x95(S) | 19/2.52 | 1.1 | 44.6 | 4934 |
| FGD400 1RV-R 5G120 | 5x120(S) | 37/2.03 | 1.2 | 45.8 | 7171 |
| FGD400 1RV-R 5G150 | 5x150(S) | 37/2.25 | 1.4 | 55.6 | 7699 |
| FGD400 1RV-R 5G185 | 5x185(S) | 37/2.52 | 1.6 | 60.4 | 9566 |
| FGD400 1RV-R 5G240 | 5x240(S) | 61/2.25 | 1.7 | 69.1 | 12610 |
| FGD400 1RV-R 5G300 | 5x300(S) | 61/2.52 | 1.8 | 76.4 | 15532 |
| FGD400 1RV-R 5G400 | 5x400(S) | 61/2.85 | 2.0 | 86.1 | 19241 |
| FGD400 1RV-R 5G500 | 5x500(S) | 61/3.20 | 2.2 | 94.4 | 24613 |
Conductor Operating Temperature : 90°C Ambient Temperature : 30°C
| CONDUCTOR CROSS- SECTIONAL AREA | REFERENCE METHOD 4 (ENCLOSED IN CONDUIT IN THERMALLY INSULATING WALL ETC) | REFERENCE METHOD 3 (ENCLOSED IN CONDUIT ON A WALL OR IN TRUNKING ETC) | REFERENCE METHOD 1 (CLIPPED DIRECT) | REFERENCE METHOD 11 (ON A PERFORATED CABLE TRAY, HORIZONTAL OR VERTICAL) | REFERENCE METHOD 12(FREE AIR) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HORIZONTAL FLAT SPACED | VERTICAL FLAT SPACED | TREFOIL | |||||||||
| 2 CABLES, SINGLE- PHASE A.C. OR D.C. | 3 OR 4 CABLES, 3-PHASE A.C. | 2 CABLES, SINGLE- PHASE A.C. OR D.C | 3 OR 4 CABLES, 3- PHASE A.C. | 2 CABLES, SINGLE- PHASE A.C. OR D.C. FLAT AND TOUCHING | 3 OR 4 CABLES, 3-PHASE A.C. FLAT AND TOUCHING OR TREFOIL | 2 CABLES, SINGLE- PHASE A.C. OR D.C. OR FLAT AND TOUCHING | 3 OR 4 CABLES, 3-PHASE A.C. FLAT AND TOUCHING OR TREFOIL | 2 CABLES, SINGLE- PHASE A.C. OR D.C. OR 3 C ABLES THREE PHASE | 2 CABLES, SINGLE- PHASE A.C. OR D.C. OR 3 CABLES THREE PHASE | 3 CABLES, TREFOIL 3-PHASE A.C. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| MM2 | A | A | A | A | A | A | A | A | A | A | A |
| 1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
| 4 | 33 | 30 | 40 | 35 | 46 | 41 | - | - | - | - | - |
| 6 | 43 | 39 | 51 | 45 | 59 | 54 | - | - | - | - | - |
| 10 | 58 | 53 | 71 | 63 | 81 | 74 | - | - | - | - | - |
| 16 | 76 | 70 | 95 | 85 | 109 | 99 | - | - | - | - | - |
| 25 | 100 | 91 | 126 | 111 | 143 | 130 | 158 | 140 | 183 | 163 | 138 |
| 35 | 125 | 111 | 156 | 138 | 176 | 161 | 195 | 176 | 226 | 203 | 171 |
| 50 | 149 | 135 | 189 | 168 | 228 | 209 | 293 | 215 | 274 | 246 | 209 |
| 70 | 189 | 170 | 240 | 214 | 293 | 268 | 308 | 279 | 351 | 318 | 270 |
| 95 | 228 | 205 | 290 | 259 | 355 | 326 | 375 | 341 | 426 | 389 | 330 |
| 120 | 263 | 235 | 336 | 299 | 413 | 379 | 436 | 398 | 495 | 453 | 385 |
| 150 | 300 | 270 | 375 | 328 | 476 | 436 | 505 | 461 | 570 | 524 | 445 |
| 185 | 341 | 306 | 426 | 370 | 545 | 500 | 579 | 530 | 651 | 600 | 511 |
| 240 | 400 | 358 | 500 | 433 | 644 | 590 | 686 | 630 | 769 | 711 | 606 |
| 300 | 459 | 410 | 573 | 493 | 743 | 681 | 794 | 730 | 886 | 824 | 701 |
| 400 | - | - | 684 | 584 | 868 | 793 | 915 | 849 | 1065 | 994 | 820 |
| 500 | - | - | 783 | 666 | 990 | 904 | 1044 | 973 | 1228 | 1150 | 936 |
Voltage Drop (Per Amp Per Meter)
| SIZE OF CONDUCTOR | 2 CABLES D.C. | 2 CABLES, SINGLE-PHASE A.C. | 3 OR 4 CABLES, 3-PHASE A.C. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| REF. METHODS 3 AND 4 (ENCLOSED IN CONDUIT ETC, IN OR ON A WALL) | REF. METHODS 1 AND 11 (CLIPPED DIRECT OR ON TRAYS TOUCHING) | REF. METHODS 3 AND 4 (ENCLOSED IN CONDUIT ETC, IN OR ON A WALL) | REF. METHODS 1, 11 AND 12 (IN TREFOIL) | REF. METHODS 1 AND 11 (FLAT AND TOUCHING) | ||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||||
| MM2 | MV/A/M | MV/A/M | MV/A/M | MV/A/M | MV/A/M | MV/A/M | ||||||||||
| 1.5 | 31 | 31 | 27 | 27 | 27 | 27 | ||||||||||
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 | ||||||||||
| 4 | 33 | 12 | 10 | 10 | 10 | 10 | ||||||||||
| 6 | 7.8 | 7.9 | 6.8 | 6.8 | 6.8 | 6.8 | ||||||||||
| 10 | 4.7 | 4.7 | 4.7 | 4 | 4 | 4 | ||||||||||
| 16 | 2.9 | 2.9 | 2.9 | 2.5 | 2.5 | 2.5 | ||||||||||
| r | x | z | r | x | z | r | x | z | r | x | z | r | x | z | ||
| 25 | 1.85 | 1.85 | 0.31 | 1.90 | 1.85 | 0.190 | 1.85 | 1.60 | 0.27 | 1.65 | 1.600 | 0.165 | 1.600 | 1.600 | 0.190 | 1.600 |
| 35 | 1.35 | 1.35 | 0.29 | 1.35 | 1.35 | 0.180 | 1.35 | 1.15 | 0.25 | 1.15 | 1.150 | 0.155 | 1.50 | 1.150 | 0.180 | 1.150 |
| 50 | 0.99 | 1.00 | 0.29 | 1.05 | 0.99 | 0.180 | 1.00 | 0.87 | 0.25 | 0.90 | 0.860 | 0.155 | 0.870 | 0.860 | 0.180 | 0.870 |
| 70 | 0.68 | 0.70 | 0.28 | 0.75 | 0.68 | 0.175 | 0.71 | 0.60 | 0.24 | 0.65 | 0.590 | 0.150 | 0.610 | 0.590 | 0.175 | 0.620 |
| 95 | 0.49 | 0.51 | 0.27 | 0.58 | 0.49 | 0.170 | 0.52 | 0.44 | 0.23 | 0.50 | 0.430 | 0.145 | 0.450 | 0.430 | 0.170 | 0.460 |
| 120 | 0.39 | 0.41 | 0.26 | 0.48 | 0.39 | 0.165 | 0.43 | 0.35 | 0.23 | 0.42 | 0.340 | 0.140 | 0.370 | 0.340 | 0.165 | 0.380 |
| 150 | 0.32 | 0.33 | 0.26 | 0.43 | 0.32 | 0.165 | 0.36 | 0.29 | 0.23 | 0.37 | 0.280 | 0.140 | 0.310 | 0.280 | 0.165 | 0.320 |
| 185 | 0.25 | 0.27 | 0.26 | 0.37 | 0.26 | 0.165 | 0.30 | 0.23 | 0.23 | 0.32 | 0.220 | 0.140 | 0.260 | 0.220 | 0.165 | 0.280 |
| 240 | 0.19 | 0.21 | 0.26 | 0.33 | 0.20 | 0.160 | 0.25 | 0.185 | 0.22 | 0.29 | 0.170 | 0.140 | 0.220 | 0.170 | 0.165 | 0.240 |
| 300 | 0.155 | 0.175 | 0.25 | 0.31 | 0.16 | 0.160 | 0.22 | 0.150 | 0.22 | 0.27 | 0.140 | 0.140 | 0.195 | 0.135 | 0.160 | 0.210 |
| 400 | 0.12 | 0.140 | 0.25 | 0.29 | 0.13 | 0.155 | 0.20 | 0.125 | 0.22 | 0.25 | 0.110 | 0.135 | 0.175 | 0.110 | 0.160 | 0.195 |
| 500 | 0.093 | 0.120 | 0.25 | 0.28 | 0.105 | 0.155 | 0.185 | 0.100 | 0.22 | 0.24 | 0.090 | 0.135 | 0.160 | 0.088 | 0.160 | 0.180 |
Note : r = conductor resistance at operating temperature x = reactance z = impedance
+852 6230 0392
Caledonian Cables
live:1cb87739a29fb08c
