APPLICATIONS

The cables are single pair stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings.

STANDARDS

VOLTAGE RATING

300/500V

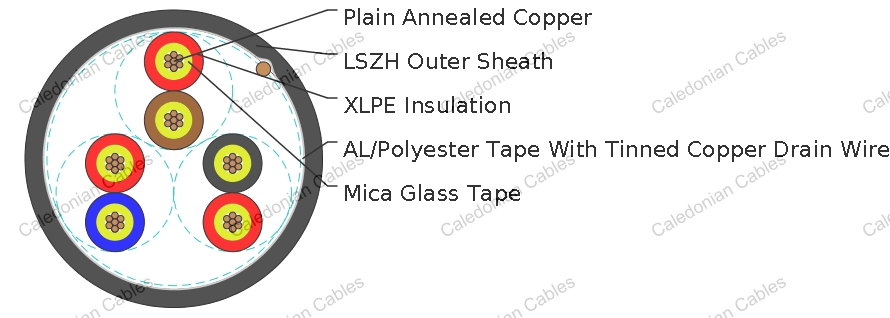

CONSTRUCTION

Conductors : Plain annealed copper wire, stranded according to EN 60228 class 2 or class 5.

Insulation : Mica glass tape covered by extruded cross-linked XLPE compound.

Cable elements : Insulated cores are twisted to form pairs.

Cabling : Pairs are cabled together.

Overall screen : Aluminum/polyester tape with copper drain wire.

Outer sheath : Thermoplastic LSZH compound.

COLOUR CODE

Insulation Colour : According to IEC 60189-2 (other colour code on request).

Sheath Colour : Colour red (other colours on request).

ELECTRICAL PROPERTIES

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation (fixed state) : -30°C – +90°C

Temperature range during installation (mobile state) : -20°C – +50°C

Minimum bending radius : 8 × Overall Diameter

CONSTRUCTION PARAMETERS

FFX200 05mROZ1-R 3P0.75

FFX200 05mROZ1-F 3P0.75
