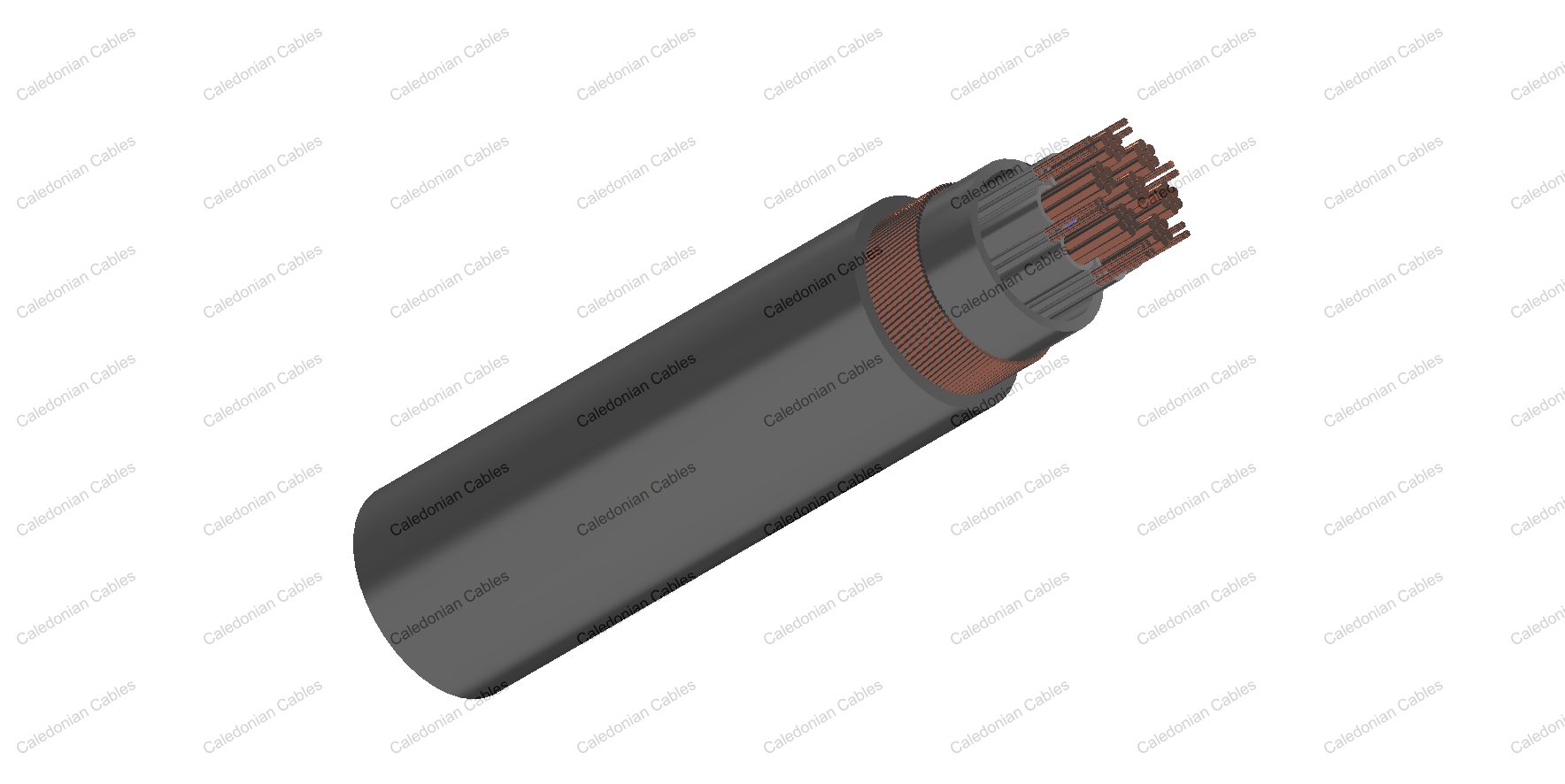

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
VDE 0295

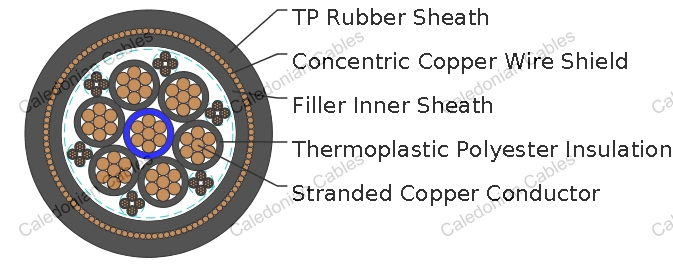

Conductor : Stranded bare copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation : XLPE.
Control Core : 1mm² stranded copper conductor with PVC insulation.
Inner Sheath : Filler.
Shield : Concentric copper conductor (25mm²).
Outer Sheath : TP rubber.
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -55℃~+85℃ |
| Minimum Bending Radius | static: 8×OD; dynamic: 12×OD |
| Flame Retardant | Yes |
| Construction | Nominal Diameter of Power Core | Nominal Diameter of Control Core | Nominal Diameter Under Shield | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 7×35+6×(4×1) | 10.5 | 2.1 | 40.8 | 42.8 | 3000 |
