These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
BS 6724
BS 5467

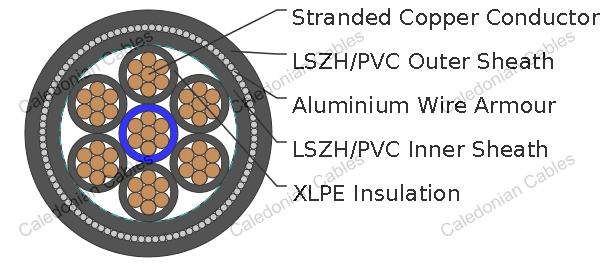

Conductor: Stranded bare copper conductor, Class 2.
Insulation: XLPE.
Inner Sheath: LSZH. PVC can be offered upon request.
Armour: Aluminium wire armour.
Outer Sheath: LSZH. PVC can be offered upon request.
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 9×OD; dynamic: 12×OD |
| Halogen Free | Yes |
| No Corrosive & Toxic Gases | Yes |
| Low Smoke | Yes |
| Construction | Nominal Diameter of Single Core | Nominal Diameter Under Armour | Nominal Diameter Over Armour | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 7×35 | 8.6 | 30.0 | 32.4 | 36.6 | 3355 |
