    400Hz Airport Cables Single Core

    Applications

    These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

    Standards

    VDE 0295

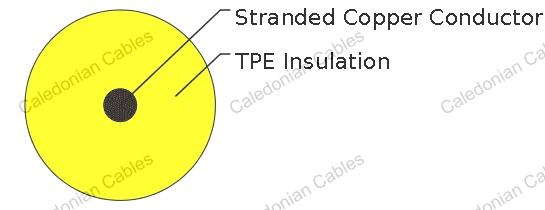

    Construction

    Conductor : Stranded copper conductor, Class 5 to VDE 0295/IEC 60228.

    Insulation : TPE.

    Technical Data

    Rated Voltage Uo/U (Um) 600/1000V
    Operating Temperatures -40℃ ~ +90℃
    Minimum Bending Radius static : 6×OD ; dynamic : 7×OD
    Halogen Free Yes
    Abrasion Resistant Yes
    UV Resistant Yes
    Oil Resistant Yes

    Dimensions and Weight

    Construction Nominal Overall Diameter Nominal Weight
    No. ×mm² mm kg/km
    1×35 11.5 430
    1×50 12.6 665
    1×70 14.0 910
    1×120 23.0 1545
