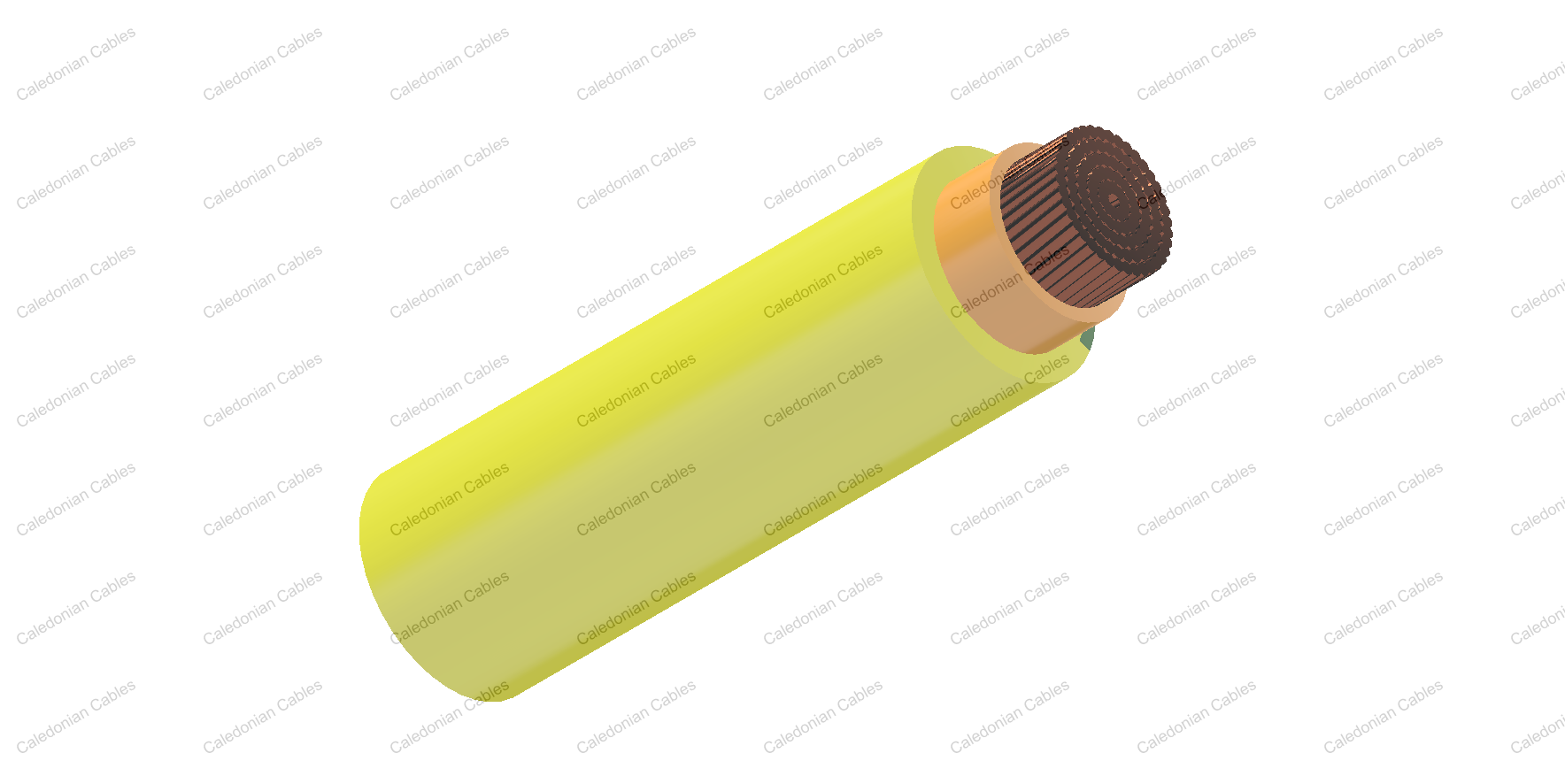

    400Hz Single Core Grounding Cable

    400Hz Single Core Grounding Cable

    Applications

    These cables are designed to be used for grounding the aircraft in hangars or on passenger bridges, connecting aircraft and mobile refueling systems and provide an equipotential bonding.

    Standards

    VDE 0295

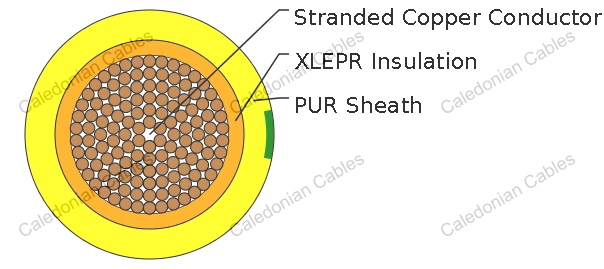

    Construction

    Conductor : Stranded copper conductor, Class5 to VDE 0295/IEC 60228.

    Insulation : XLEPR.

    Outer Sheath : PUR.

    Technical Data

    Rated Voltage Uo/U (Um) 600/1000V
    Operating Temperatures -40℃~+90℃
    Minimum Bending Radius static: 6×OD; dynamic: 9×OD
    Halogen Free Yes
    No Corrosive & Toxic Gases Yes
    Abrasion Resistant Yes
    Weather Resistant Yes
    Oil Resistant Yes

    Dimensions and Weight

    Construction Nominal Overall Diameter Nominal Weight
    No. ×mm² mm kg/km
    1×16 10.7 216
