Airport Cable |  |
|
|
|||
 |
|
RG 6/U
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design to MIL-C-17
FIRE PERFORMANCE
FlameRetardance (SingleVerticalWireTest)** |
EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** |
EN60332-3-24(cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

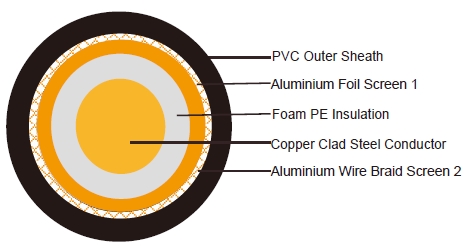

CABLE CONSTRUCTION
Conductors: Copper clad steel
Insulation: Foam PE compound.
Screen 1: Aluminium foil
Screen 2: Aluminium wire braid
Outer Sheath: Thermoplastic PVC compound.
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -5ºC - +60ºC
Minimum bending radius: 8 x Overall Diameter
Electrical Properties
Impedance |
75±5Ω |
Capacitance |
54NF/kM |
Velocityratio(%) |
82 |
Insulationresistance |
>5000Mohm.km |
Shieldcoverage |
70% |
DC resistance |
|
Innerconductor |
23.1Ω/km |
Outerconductor |
31 Ω/km |
Attenuation
Frequency(MHz) |
Attenuation(dB/100m) |
Attenuation(dB/100ft) |
50 |
5.0 |
1.5 |
100 |
6.4 |
1.96 |
200 |
9.2 |
2.8 |
500 |
14.5 |
4.4 |
600 |
15.9 |
4.9 |
800 |
17.7 |
5.4 |
1000 |
21.9 |
6.7 |
1350 |
24.9 |
7.6 |
1750 |
29.0 |
8.8 |
2050 |
33.1 |
10.1 |
2400 |
36.4 |
11.1 |
CONSTRUCTION PARAMETERS
CableCode |
ConductorDiameter |
NominalInsulation Diameter |
NominalScreen No.xDiameter |
NominalOverall Diameter |
Approx. Weight |
|
mm |
mm |
No. x mm |
mm |
kg/km |
RG6/U |
1.02 |
4.8 |
96*×0.12 |
7.0 |
43 |
