300/500V PVC Insulated, PVC Sheathed, Screened Cables (1 Pair)
RE-Y(St)Y (CU/PVC/OS/PVC 300/500V Class 5)
APPLICATION
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control
Circuits.
STANDARDS
Basic design to BS 5308
FIRE PERFORMANCE
FlameRetardance (SingleVerticalWireTest)** |
EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** |
EN60332-3-24(cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
300/500V

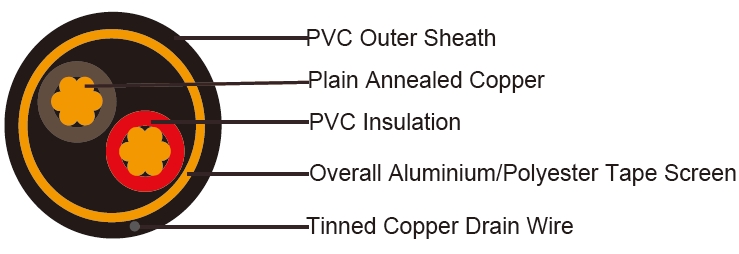

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5
Insulation: PVC (polyvinyl chloride), type TI1 to BS 6746
Overall Screen: 100% Aluminium/polyester tape is applied over the laid up pairs metallic side down
in contact with tinned copper drain wire, 20 AWG
Outer Sheath: PVC Sheath, type TM 1 or type 6 to BS 6746
COLOUR CODE
Insulation Color: Black,Red
Jacket Color: Gray, Black, Green, Brown, Orange,Red, Yellow, Violet, Blue
Electrical & Environmenta l Properties
Operating Temperature Range: -20˚C up to + 60˚C
Max.Capacitance Between Conductors @ 1 KHz: 180pf/m Nom.
Capacitance Between Conductors to Shield @ 1 KHz: 325pf/m Nom.
Minimum Bending Radius: 6 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor |
RE-Y(St)Y |
|
||||||
No. of Cross |
No./ |
Conductor |
Nominal |
Nominal |
Nominal |
Nominal |
Approx. Weight |
DcResistanceper conductor @20℃ |
NoxAWG |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
1x2x22 |
14/0.2 |
0.698 |
0.4 |
0.05 |
0.8 |
5.4 |
40 |
39 |
