Airport Cable

   2491X to BS 6004 Cables

450/750V PVC Insulated, PVC Sheathed Power Cables (2 core & 3 core)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings. The cables can be offered
with the ability to restrict the propagation of the flame in the event of a fire.
STANDARDS
Basic design to BS 6004, BS6500
FIRE PERFORMANCE



FlameRetardance (SingleVerticalWireTest)**

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*



Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)**



EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
450/750V

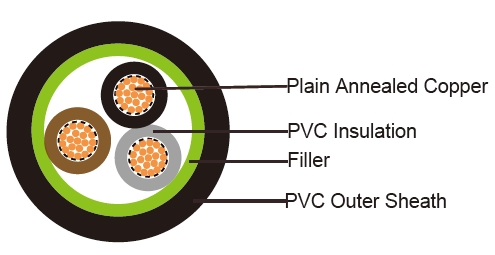

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5
Insulation: PVC insulation type TI1 to BS 7655
Filler, binder (if any): PP, PET
Outer Sheath: PVC sheath type T6 to BS 7655

COLOUR CODE
Insulation Colour as per BS7671



withearth conductor

withoutearth conductor

2Cores

-

Brown,Blue

3Cores

Yellow/Green,Brown,Blue

Brown,Gray,Black

4Cores

Yellow/Green,Brown,Gray,Black

Brown,Gray,Black,Blue

5Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray,Black,Blue,Black

above 5 Cores

Yellow/Green,BlackNumbers

Black Numbers

Outer sheath: Black or as order
Physical AND THERMAL PROPERTIES
Operating temperature: -15º C to +70º C
Short circuit temperature: +160º C
Minimum bending radius: 4x Overall Diameter
Insulation resistance: 20 MΩxkm
CONSTRUCTION PARAMETERS

Conductor

fGD20007VV-f



No.of
CoreXCross
Section





No./
Nominal
Diameterof
Strands





Conductor
Diameter





Nominal
Insulation Thickness





Nominal
Sheath Thickness





Nominal
Overall Diameter



Max.DC resistance ofconductor

@20°C





Approx. Weight

Noxmm2

No./mm

mm

mm

mm

mm

Ω/km

kg/km

2x1.5

30/0.25

1.6

0.7

0.9

9.3

12.1

108

3x2.5

50/0.25

2.0

0.8

1.2

10.8

7.41

179

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)





Conductor
cross- sectional area





Reference Method4
(enclosed inconduit in thermally
insulating
walletc)

Reference
Method3 (enclosed inconduit ona wallorin

trunkingetc)







Reference
Method1
(clipped direct)



Reference
Method11
(onaperforated cabletray,
horizontalorvertical)

Reference
Method 12
(freeair)



Horizontal
flat spaced



Vertical
flat spaced





Trefoil

2cables, single- phase

a.c.ord.c.

3 or 4cables, 3-phasea.c.

2cables, single- phase

a.c.ord.c

3 or 4cables, 3-phasea.c.

2cables, single- phase
a.c.or

d.c. flat

andtouching

3 or 4cables, 3-phase
a.c. flat
andtouching or trefoil

2
cables, single- phase
a.c.or
d.c.orflat and touching

3 or 4cables, 3-phase
a.c. flat
andtouching or trefoil

2cables, single- phase
a.c.ord.c.or 3cablesthree phase

2cables, single- phase
a.c.ord.c.or 3
cables three phase

3 cables, trefoil 3-

phasea.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

Voltage Drop(PerAmp PerMeter)





Nominal
CrossSection Area







2cables d.c.

2cables,single-phasea.c.

3or 4cables,3-phase a.c.

Ref.Methods3
and 4 (enclosed
inconduitetc,
inoron a wall)

Ref.Methods1

and11(clipped
director ontray
stouching)

Ref.Methods3
and 4 (enclosed
inconduitetc
,inoron a wall)

Ref.Methods1,

Ref.Methods1and11

11 and12 (intrefoil)



(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16
