Airport Cable

   2491X to BS 6004 Cables

450/750V PVC Insulated, PVC Sheathed Controlling Cables (2 core & 6 core)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

APPLICATION
The cables are multicore stranded flexible cables sheathed with thermoplastic PVC compound. The
cables are designed specially for fire alarm systems where the integrity of the electrical circuit is
critical in maintaining power supply. Applications can be found in emergency lightings, control and
power circuits, power stations, fire alarm systems, underground.
STANDARDS
Basic design to BS 6004, BS6500
FIRE PERFORMANCE



FlameRetardance (SingleVerticalWireTest)**

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*



Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)**



EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
450/750V

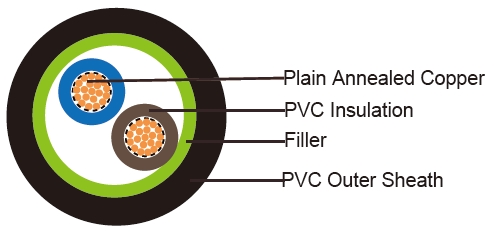

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5
Insulation: PVC insulation type TI1 to BS 7655
Filler, binder (if any): PP, PET
Outer Sheath: PVC sheath type T6 to BS 7655

COLOUR CODE
Insulation Colour as per BS7671



withearth conductor

withoutearth conductor

2Cores

-

Brown,Blue

3Cores

Yellow/Green,Brown,Blue

Brown,Gray,Black

4Cores

Yellow/Green,Brown,Gray,Black

Brown,Gray,Black,Blue

5Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray,Black,Blue,Black

above 5 Cores

Yellow/Green,BlackNumbers

Black Numbers

Outer sheath: Black or as order
Physical AND THERMAL PROPERTIES
Operating temperature: -15º C to +70º C
Short circuit temperature: +160º C
Minimum bending radius: 4x Overall Diameter
Insulation resistance: 20 MΩxkm
CONSTRUCTION PARAMETERS

Conductor

fGD20007VV-f



No.of
CoreXCross
Section





No./
Nomina
lDiameter
of
Strands





Conductor
Diameter





Nominal
Insulation Thickness





Nominal
Sheath Thickness





Nominal
Overall Diameter



Max.DC resistance ofconductor

@20°C





Approx. Weight

Noxmm2

No./mm

mm

mm

mm

mm

Ω/km

kg/km

2x1.0

32/0.20

1.32

0.6

0.9

7.0

18.1

66

6x1.0

32/0.20

1.32

0.6

1.0

10..2

18.1

159

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Currnt-Carrying Capacities (Amp)

Conductor cross- sectional area

Reference Method4
(enclosed inconduit in thermally
insulating
walletc)

Reference
Method3 (enclosed inconduit ona wallorin

trunkingetc)

Reference
Method1
(clipped direct)

Reference
Method11
(onaperforated cabletray,
horizontalor
vertical)

Reference
Method 12
(freeair)

Horizontal
flat spaced

Vertical
flat spaced





Trefoil

2cables, single- phase
a.c.ord.c.

3 or
cables, 3-phasea.c.

2
cables, single- phase
a.c.ord.c

3 or 4cables, 3-phasea.c.

2cables, single- phase
a.c.or
d.c. flat
and
touching

3 or 4cables,
3-phase
a.c. flat
and
touching or trefoil

2cables,
single- phase
a.c.or
d.c.orflat
and
touching

3 or 4cables,
3-phase
a.c. flat
and
touching or trefoil

2cables, single- phase
a.c.ord.c.or 3cables
three phase

2cables, single- phase
a.c.ord.c
.or
3cables three phase

3cables,
trefoil 3-phasea.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.0

13

-

-

-

15

-

-

-

-

-

-

Voltage Drop (Per Amp Per Meter)







Nominal
Cross
Section Area









2cables d.c.

2cables,
single-
phasea.c.

3or
4cables,
3-phase a.c.





Ref.Methods3

and 4 (enclosed
inconduitetc ,inoron a wall)





Ref.Methods1

and11
(clipped
director ontray
stouching)





Ref.
Methods3

and 4 (enclosed
inconduitetc,
inoron a wall)



Ref.Methods1,

Ref.
Methods
1and11



11 and12 (intrefoil)





(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.0

46

46

-

-

-

-
