450/750V PVC Insulated, PVC Sheathed Controlling Cables (4 core)
RE-YY (CU/PVC/PVC 300/500V Class 5)
APPLICATION
The unarmoured versions are generally use for indoor installation and suitable for wet and damp
areas. Generally used within industrial process manufacturing plants for communication, data and
voice transmission signals and services, Also used for the interconnection of electrical equipment
and instruments, typically in chemical or petrolchemical industry.
STANDARDS
Basic design adapted to BS 5308 and VDE 0812
FIRE PERFORMANCE
FlameRetardance (SingleVerticalWireTest)** |
EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** |
EN60332-3-24(cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note:
Asterisk * denotes superseded standard
Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
300/500V

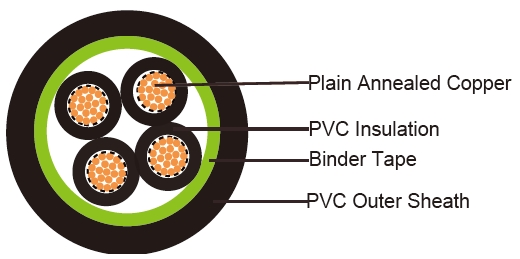

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5
Insulation: PVC (polyvinyl chloride), type TI1 to BS 6746
Binder Tape: PETP transparent tape
Outer Sheath: PVC Sheath, type TM 1 or type 6 to BS 6746
COLOUR CODE
Insulation Colour as per BS 7671
Black with Arabic numbers printing in white colour
Outer sheath: Black or as order
Physical AND THERMAL PROPERTIES
Operating Temperature: -40˚C up to + 70˚C( fixed installation)
0˚C to +50˚C(during operation )
Minimum Bending Radius: 5 x Overall Diameter
Insulation Resistance Min.: 25 Mohm/km
CONSTRUCTION PARAMETERS
Conductor |
RE-YY |
||||||
No.of Cross Section |
No./ |
Conductor |
Nominal |
Nominal |
Nominal |
Approx. Weight |
DcResistanceper conductor @20℃ |
NO.×mm2 |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
4x1.0 |
30/0.2 |
1.32 |
0.6 |
0.9 |
8.2 |
92 |
19.5 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
