   600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (Multicore)
FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC CLASS 2 )
Outdoor Cabling

APPLICATION
The cables are mainly used in power stations,
mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals,
and high-rise buildings.
STANDARDS
Basic design to BS 5467
FIRE PERFORMANCE



FlameRetardance (SingleVerticalWireTest)**



EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*



Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)**



EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

VOLTAGE RATING
600/1000V

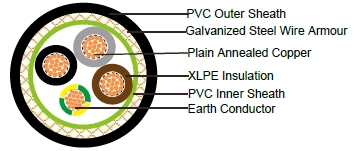

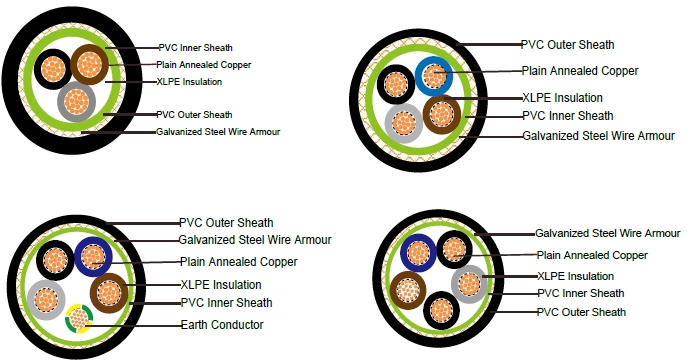

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath: PVC Compound
Armouring: Galvanized Steel Wire
Outer Sheath: PVC Compound.
COLOUR CODE
Insulation Colour as per BS7671



WithEarth Conductor

WithoutEarth Conductor

2 Cores

-

Brown,Blue

3 Cores

Yellow/Green,Brown,Blue

Brown,Gray, Black

4 Cores

Yellow/Green,Brown,Gray, Black

Brown,Gray, Black,Blue

5 Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray, Black,Blue,Black

Above5 Cores

Yellow/Green,BlackNumbered

Black Numbered

Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -40°C ~ 70°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 8 x OD
Electrical PROPERTIES

DielectricTest:

3500 Vr.m.s.x 5’(core/core)

Insulation Resistance

500 MΩ x km ( at 20°C )

ShortcircuitTemperature

250°C ( up to5secs)

CONSTRUCTION PARAMETERS







Cable
Code

Conductor





Nominal
Insulation Thickness





Diameter
Under
Armour





Armour Wire Diameter





Nominal
Overall Diameter







Approx. Weight

No. of CoreX

CrossSection/ CPCCrossSection



No./Nominal
Diameter
of
Strands



No.×mm2

No./mm

mm

mm

mm

mm

kg/km

3 CORES

FGD4001RVMV-R 3G1.5

3x1.5

7/0.53

0.6

9.0

0.9

12.6

340

FGD4001RVMV-R 3G2.5

3x2.5

7/0.67

0.7

9.9

0.9

14.1

408

FGD4001RVMV-R 3G4

3x4

7/0.85

0.7

11.0

0.9

15.3

498

FGD4001RVMV-R 3G6

3x6

7/1.04

0.7

11.6

1.25

16.6

600

FGD4001RVMV-R 3G10

3x10

7/1.35

0.7

14.3

1.25

19.5

915

FGD4001RVMV-R 3G16

3x16

7/1.70

0.7

16.5

1.25

21.6

1130

FGD4001RVMV-R 3G25

3x25

7/2.14

0.9

20.2

1.6

26.7

1710

FGD4001RVMV-R 3G35

3x35

7/2.52

0.9

22.4

1.6

29.4

2100

FGD4001RVMV-R 3G50

3x50(S)

19/1.78

1.0

24.2

1.6

28.5

2450

FGD4001RVMV-R 3G70

3x70(S)

19/2.14

1.1

28.2

2.0

32.2

3120

FGD4001RVMV-R 3G95

3x95(S)

19/2.52

1.1

31.7

2.0

37.0

4310

FGD4001RVMV-R 3G120

3x120(S)

37/2.03

1.2

36.0

2.0

40.4

5160

FGD4001RVMV-R 3G150

3x150(S)

37/2.25

1.4

39.5

2.5

45.5

7160

FGD4001RVMV-R 3G185

3x185(S)

37/2.52

1.6

43.3

2.5

49.8

8600

FGD4001RVMV-R 3G240

3x240(S)

61/2.25

1.7

48.4

2.5

55.1

10750

FGD4001RVMV-R 3G300

3x300(S)

61/2.52

1.8

54.4

2.5

60.2

13080

FGD4001RVMV-R 3G400

3x400(S)

61/2.85

2.0

57.8

2.5

66.6

15810

3CORES + 1EARTHCONDUCTOR

FGD4001RVMV-R 3G16/6

3×16/6

7/1.70

0.7

17.6

1.25

22.6

1342

FGD4001RVMV-R 3G16/10

3x16/10

7/1.70

0.7

20.6

1.25

23.0

1567

FGD4001RVMV-R 3G25/6

3x25/6

7/2.14

0.9

26.3

1.25

27.1

1876

FGD4001RVMV-R 3G25/10

3x25/10

7/2.14

0.9

26.3

1.25

27.6

2091

FGD4001RVMV-R 3G25/16

3x25/16

7/2.14

0.9

26.6

1.25

28.3

2150

FGD4001RVMV-R 3G35/10

3x35/10

7/2.52

0.9

26.8

1.6

28.9

2210

FGD4001RVMV-R 3G35/16

3x35/16

7/2.52

0.9

26.8

1.6

29.5

2390

FGD4001RVMV-R 3G35/25

3x35/25

7/2.52

0.9

27.2

1.6

30.0

2505

FGD4001RVMV-R 3G50/16

3×50/16

19/1.78

0.9

28.5

1.6

29.0

2916

FGD4001RVMV-R 3G50/25

3x50/25

19/1.78

1.0

29.2

1.6

30.0

3107

FGD4001RVMV-R 3G50/35

3x50/35

19/1.78

1.0

30.0

1.6

31.0

3175

FGD4001RVMV-R 3G70/25

3×70/25

19/2.14

1.1

34.0

2.0

32.9

3203

FGD4001RVMV-R 3G70/35

3x70/35

19/2.14

1.1

34.5

2.0

34.5

4067

FGD4001RVMV-R 3G70/50

3x70/50

19/2.14

1.1

35

2.0

36.3

4310

FGD4001RVMV-R 3G95/25

3×95/25

19/2.52

1.1

36.7

2.0

38.0

5047

FGD4001RVMV-R 3G95/35

3×95/35

19/2.52

1.1

37.2

2.0

38.6

5115

FGD4001RVMV-R 3G95/50

3x95/50

19/2.52

1.1

37.6

2.0

39.2

5289

FGD4001RVMV-R 3G95/70

3x95/70

19/2.52

1.1

37.6

2.0

40.0

5360

FGD4001RVMV-R 3G120/35

3×120/35

37/2.03

1.2

39.4

2.5

41.2

6160

FGD4001RVMV-R 3G120/50

3×120/50

37/2.03

1.2

39.9

2.5

42.3

6473

FGD4001RVMV-R 3G120/70

3x120/70

37/2.03

1.2

40.3

2.5

44.6

6793

FGD4001RVMV-R 3G120/95

3×120/95

37/2.03

1.2

41.2

2.5

46.2

7120

FGD4001RVMV-R 3G150/50

3×150/50

37/2.25

1.4

45.2

2.5

57.0

7431

FGD4001RVMV-R 3G150/70

3×150/70

37/2.25

1.4

45.2

2.5

58.1

7565

FGD4001RVMV-R 3G150/95

3x150/95

37/2.25

1.4

45.5

2.5

59.4

8196

FGD4001RVMV-R 3G150/120

3x150/120

37/2.25

1.4

46.0

2.5

50.6

8590

FGD4001RVMV-R 3G185/70

3×185/70

37/2.52

1.6

50.4

2.5

51.6

8950

FGD4001RVMV-R 3G185/95

3xI85/95

37/2.52

1.6

50.6

2.5

53.2

9573

FGD4001RVMV-R 3G185/120

3x185/120

37/2.52

1.6

51.0

2.5

54.3

9968

FGD4001RVMV-R 3G185/150

3x185/150

37/2.52

1.6

51.6

2.5

55.3

1023

FGD4001RVMV-R 3G240/95

3×240/95

61/2.25

1.7

58.0

2.5

56.7

11620

FGD4001RVMV-R 3G240/120

3x240/120

61/2.25

1.7

59.0

2.5

58.3

12015

FGD4001RVMV-R 3G240/150

3x240/150

61/2.25

1.7

60.0

2.5

60.4

12373

FGD4001RVMV-R 3G240/185

3x240/185

61/2.25

1.7

60.0

2.5

62.1

1350

FGD4001RVMV-R 3G300/120

3x300/120

61/2.52

1.8

64.2

2.5

63.5

14197

FGD4001RVMV-R 3G300/150

3x300/150

61/2.52

1.8

65.7

2.5

64.9

14556

FGD4001RVMV-R 3G300/185

3x300/I85

61/2.52

1.8

67

2.5

66.2

15015

FGD4001RVMV-R 3G300/240

3x300/240

61/2.52

1.8

67

2.5

67.4

15697

4 CORES

FGD4001RVMV-R 4G1.5

4x1.5

7/0.53

0.7

10.0

0.9

13.3

390

FGD4001RVMV-R 4G2.5

4x2.5

7/0.67

0.7

10.8

0.9

15.0

470

FGD4001RVMV-R 4G4

4x4

7/0.85

0.7

12.1

0.9

16.4

580

FGD4001RVMV-R 4G6

4x6

7/1.04

0.7

13.5

1.25

18.7

705

FGD4001RVMV-R 4G10

4x10

7/1.35

0.7

15.7

1.25

21.1

1090

FGD4001RVMV-R 4G16

4x16

7/1.70

0.7

18.2

1.6

23.4

1320

FGD4001RVMV-R 4G25

4x25

7/2.14

0.9

22.4

1.6

28.9

1840

FGD4001RVMV-R 4G35

4x35(S)

7/2.52

0.9

24.4

1.6

31.9

2310

FGD4001RVMV-R 4G50

4x50(S)

19/1.78

1.0

28.0

1.6

32

2970

FGD4001RVMV-R 4G70

4x70(S)

19/2.14

1.1

32.2

2.0

37.7

4240

FGD4001RVMV-R 4G95

4x95(S)

19/2.52

1.1

36.0

2.0

41.7

5400

FGD4001RVMV-R 4G120

4x120(S)

37/2.03

1.2

38.0

2.5

47.1

7000

FGD4001RVMV-R 4G150

4x150(S)

37/2.25

1.4

42.8

2.5

51.4

8350

FGD4001RVMV-R 4G185

4x185(S)

37/2.52

1.6

48.4

2.5

56.6

10130

FGD4001RVMV-R 4G240

4x240(S)

61/2.25

1.7

55.0

2.5

63.0

12840

FGD4001RVMV-R 4G300

4x300(S)

61/2.52

1.8

59.6

2.5

68.8

15530

FGD4001RVMV-R 4G400

4x400(S)

61/2.85

2.0

66.1

3.15

78.1

19950

4CORES + 1EARTHCONDUCTOR

FGD4001RVMV-R 4G16/6

4x16/6

7/1.35

0.7

17.9

1.25

25.1

1356

FGD4001RVMV-R 4G16/10

4x16/l0

7/1.70

0.7

20.6

1.25

26.0

1390

FGD4001RVMV-R 4G25/6

4x25/6

7/2.14

0.7

24.1

1.25

29.0

1900

FGD4001RVMV-R 4G25/10

4x25/10

7/2.14

0.9

24.9

1.25

29.4

1956

FGD4001RVMV-R 4G25/16

4x25/16

7/2.14

0.9

25.3

1.25

30.0

2012

FGD4001RVMV-R 4G35/10

4×35/10

7/2.52

0.9

25.4

1.25

32.1

2710

FGD4001RVMV-R 4G35/16

4×35/16

7/2.52

0.9

25.6

1.6

33.4

2940

FGD4001RVMV-R 4G35/25

4×35/25

7/2.52

0.9

26.2

1.6

34.0

3050

FGD4001RVMV-R 4G50/16

4×50/16

19/1.78

1.0

28.5

1.6

33

3560

FGD4001RVMV-R 4G50/25

4×50/25

19/1.78

1.0

29.2

1.6

35.6

3670

FGD4001RVMV-R 4G50/35

4x50/35

19/1.78

1.0

30.0

1.6

38.2

3759

FGD4001RVMV-R 4G70/25

4×70/25

19/2.14

1.1

34

2.0

38.6

4980

FGD4001RVMV-R 4G70/35

4x70/35

19/2.14

1.1

34.5

2.0

40.6

5036

FGD4001RVMV-R 4G70/50

4x70/50

19/2.14

1.1

35

2.0

42.9

5468

FGD4001RVMV-R 4G95/25

4×95/25

19/2.52

1.1

36.7

2.0

43.2

6215

FGD4001RVMV-R 4G95/35

4×95/35

19/2.52

1.1

37.2

2.0

46.3

6325

FGD4001RVMV-R 4G95/50

4×95/50

19/2.52

1.1

37.6

2.0

48.5

6455

FGD4001RVMV-R 4G95/70

4×95/50

19/2.52

1.1

38.0

2.0

50.7

6954

FGD4001RVMV-R 3G120/35

3×120/35

37/2.03

1.2

39.4

2.5

54.2

7968

FGD4001RVMV-R 4G120/50

4×120/50

37/2.03

1.2

39.9

2.5

55.3

8280

FGD4001RVMV-R 4G120/70

4x120/70

37/2.03

1.2

40.3

2.5

55.9

8511

FGD4001RVMV-R 4G120/95

4×120/95

37/2.03

1.2

41.2

2.5

56.4

8790

FGD4001RVMV-R 4G150/50

4×150/50

37/2.25

1.4

44.9

2.5

55.3

8723

FGD4001RVMV-R 4G150/70

4×150/70

37/2.25

1.4

45.2

2.5

56.48

8879

FGD4001RVMV-R 4G150/95

4x150/95

37/2.25

1.4

45.5

2.5

57.59

10179

FGD4001RVMV-R 4G150/120

4x150/120

37/2.25

1.4

46.0

2.5

58.65

10739

FGD4001RVMV-R 4G185/70

4×185/70

37/2.52

1.6

50.4

2.5

62.03

11200

FGD4001RVMV-R 4G185/95

4xI85/95

37/2.52

1.6

50.6

2.5

63.19

1263

FGD4001RVMV-R 4G185/120

4x185/120

37/2.52

1.6

51.0

2.5

64.23

13050

FGD4001RVMV-R 4G185/150

4x185/150

37/2.52

1.6

51.6

2.5

65.38

13680

FGD4001RVMV-R 4G240/95

4×240/95

61/2.25

1.7

58.0

2.5

71.53

14420

FGD4001RVMV-R 4G240/120

4x240/120

61/2.25

1.7

59.0

2.5

72.76

14763

FGD4001RVMV-R 4G240/150

4x240/150

61/2.25

1.7

60.0

2.5

73.10

15241

FGD4001RVMV-R 4G240/185

4x240/185

61/2.25

1.7

61.5

2.5

74.0

1682

FGD4001RVMV-R 4G300/120

4x300/150

61/2.52

1.8

64.2

2.5

75.08

18050

FGD4001RVMV-R 4G300/150

4x300/150

61/2.52

1.8

65.7

2.5

76.44

18662

FGD4001RVMV-R 4G300/185

4x300/I85

61/2.52

1.8

67

2.5

77.30

19031

FGD4001RVMV-R 4G300/240

4x300/240

61/2.52

1.8

67

2.5

78.55

19878

5 CORES

FGD4001RVMV-R 5G1.5

5x1.5

7/0.53

0.6

9.9

0.9

14.3

430

FGD4001RVMV-R 5G2.5

5x2.5

7/0.67

0.7

10.8

0.9

16.1

545

FGD4001RVMV-R 5G4

5x4

7/0.85

0.7

12.1

0.9

17.8

680

FGD4001RVMV-R 5G6

5x6

7/1.04

0.7

15.8

1.5

20

840

FGD4001RVMV-R 5G10

5x10

7/1.35

0.7

24

2.8

22.9

1105

FGD4001RVMV-R 5G16

5x16

7/1.70

0.7

27

2.8

26.6

1450

FGD4001RVMV-R 5G25

5x25

7/2.14

0.9

34

2.8

31.5

2245

FGD4001RVMV-R 5G35

5x35(S)

7/2.52

0.9

24.4

1.6

34.8

2840

FGD4001RVMV-R 5G50

5x50(S)

19/1.78

1.0

28.0

1.6

40.4

3895

FGD4001RVMV-R 5G70

5x70(S)

19/2.14

1.1

32.2

2.0

46.3

5145

FGD4001RVMV-R 5G95

5x95(S)

19/2.52

1.1

36.0

2.0

53.2

6941

FGD4001RVMV-R 5G120

5x120(S)

37/2.03

1.2

38.0

2.5

58.3

9154

FGD4001RVMV-R 5G150

5x150(S)

37/2.25

1.4

42.8

2.5

64.3

10372

FGD4001RVMV-R 5G185

5x185(S)

37/2.52

1.6

48.4

2.5

71.5

12828

FGD4001RVMV-R 5G240

5x240(S)

61/2.25

1.7

55.0

2.5

80

15980

FGD4001RVMV-R 5G300

5x300(S)

61/2.52

1.8

59.6

2.5

86.1

19521

FGD4001RVMV-R 5G400

5x400(S)

61/2.85

2.0

66.1

3.15

96.3

25116

(S) - Sectoral Stranded Conductors

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)











Conductorcross- sectional area



Reference Method1(clipped

direct)

Reference Method11(ona perforated

horizontal cabletrayorReference Method 13[freeair])





Insingle-way ducts





Laiddirectinground

one2-corecable single phase

a.c.ord.c.



one

3-coreor4-corecable

3-phasea.c.





one2-corecablesingle phasea.c.ord.c.





one3-coreor4-corecable

3-phasea.c.

one2-corecable single phase

a.c.ord.c.



one

3-core or4-corecable

3-phasea.c.

one2-corecable single phase

a.c.ord.c.



one

3-coreor4-corecable

3-phasea.c.

1

2

3

4

5

6

7

8

9

mm2

A

A

A

A

A

A

A

A

1.5

27

23

29

25

-

23

-

28

2.5

36

31

39

33

-

30

-

36

4

49

42

52

44

-

40

-

48

6

62

53

66

56

-

50

-

60

10

85

73

90

78

-

65

-

80

16

110

94

115

99

115

94

140

115

25

146

124

152

131

145

125

180

150

35

180

154

188

162

175

150

215

180

50

219

187

228

197

210

175

255

215

70

279

238

291

251

260

215

315

265

95

338

289

354

304

310

260

380

315

120

392

335

410

353

355

300

430

360

150

451

386

472

406

400

335

480

405

185

515

441

539

463

455

380

540

460

240

607

520

636

546

520

440

630

530

300

698

599

732

628

590

495

700

590

400

787

673

847

728

660

560

790

670

Voltage Drop (Per Amp Per Meter)





Conductorcross-sectional area







2-corecabled.c.







2cables,single-phase a.c.







3 or 4cables, 3-phasea.c.

2cables, single- phasea.c.

3 or 4cables, 3-phasea.c.

Inducts oringround

Inductsor

inground

1

2

3

4

5

6

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31.0

31.0

27.0

31.0

25.0

2.5

19.0

19.0

16.0

19.0

15.0

4

12.0

12.0

10.0

12.0

9.7

6

7.9

7.9

6.8

7.9

6.5

10

4.7

4.7

4.0

4.7

3.9

16

2.9

2.9

2.5

2.9

2.6





r

x

z

r

x

z





25

1.850

1.350

0.160

1.900

1.600

0.140

1.650

1.900

1.600

35

1.350

1.350

0.155

1.350

1.150

0.135

1.150

1.350

1.200

50

0.980

0.990

0.155

1.000

0.860

0.135

0.870

1.000

0.870

70

0.670

0.670

0.150

0.690

0.590

0.130

0.600

0.690

0.610

95

0.490

0.500

0.150

0.520

0.430

0.130

0.450

0.520

0.450

120

0.390

0.400

0.145

0.420

0.340

0.130

0.370

0.420

0.360

150

0.310

0.320

0.145

0.350

0.280

0.125

0.300

0.350

0.300

185

0.250

0.260

0.145

0.290

0.220

0.125

0.260

0.290

0.250

240

0.195

0.200

0.140

0.240

0.175

0.125

0.210

0.240

0.210

300

0.155

0.160

0.140

0.210

0.140

0.120

0.185

0.210

0.190

400

0.120

0.130

0.140

0.190

0.115

0.120

0.165

0.190

0.180
Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
