FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC 600/1000V Multicore)

APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design to IEC 60502-1
FIRE PERFORMANCE

FlameRetardance (SingleVerticalWireTest)**

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)**

EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
600/1000V

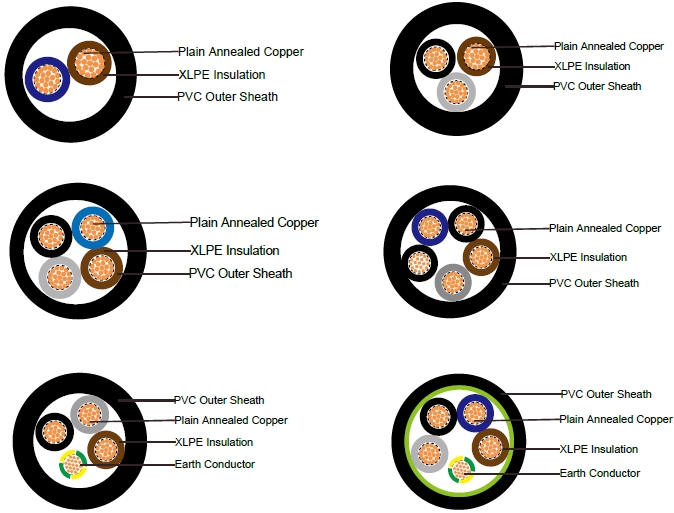

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Outer Sheath: Thermoplastic PVC compound.
COLOUR CODE
Insulation Colour as per BS7671



WithEarth Conductor

WithoutEarth Conductor

2 Cores

-

Brown,Blue

3 Cores

Yellow/Green,Brown,Blue

Brown,Gray, Black

4 Cores

Yellow/Green,Brown,Gray, Black

Brown,Gray, Black,Blue

5 Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray, Black,Blue,Black

Above5 Cores

Yellow/Green,BlackNumbered

Black Numbered

Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -40°C ~ 70°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 6 x OD
Electrical PROPERTIES

DielectricTest:

3500 Vr.m.s.x 5’(core/core)

Insulation Resistance

500 MΩ x km ( at20°C )

ShortcircuitTemperature

250°C ( up to5secs)

CONSTRUCTION PARAMETERS

 Cable
Code

Conductor

 Nominal
Overall Diameter

 Approx. Weight

No. of CoreX

Cross
Section/CPC
Cross
Section

 No./Nominal
Diameter
of
Strands

 Nominal
Insulation Thickness



No.×mm2

No./mm

mm

mm

mm

2 CORES

FGD4001RV-R 2G1.5

2x1.5

7/0.53

0.7

10.0

126

FGD4001RV-R 2G2.5

2x2.5

7/0.67

0.7

10.8

158

FGD4001RV-R 2G4

2x4

7/0.85

0.7

11.9

205

FGD4001RV-R 2G6

2x6

7/1.04

0.7

13.0

264

FGD4001RV-R 2G10

2x10

7/1.35

0.7

14.9

378

FGD4001RV-R 2G16

2x16

7/1.70

0.7

17.0

534

FGD4001RV-R 2G25

2x25

7/2.14

0.9

20.4

650

FGD4001RV-R 2G35

2x35

7/2.52

0.9

22.7

880

3 CORES

FGD4001RV-R 3G1.5

3x1.5

7/0.53

0.7

10.5

145

FGD4001RV-R 3G2.5

3x2.5

7/0.67

0.7

11.4

185

FGD4001RV-R 3G4

3x4

7/0.85

0.7

12.5

247

FGD4001RV-R 3G6

3x6

7/1.04

0.7

13.8

323

FGD4001RV-R 3G10

3x10

7/1.35

0.7

15.8

474

FGD4001RV-R 3G16

3x16

7/1.70

0.7

18.0

682

FGD4001RV-R 3G25

3x25

7/2.14

0.9

21.7

910

FGD4001RV-R 3G35

3x35

7/2.52

0.9

24.0

1180

FGD4001RV-R 3G50

3x50(S)

19/1.78

1.0

25.5

1600

FGD4001RV-R 3G70

3x70(S)

19/2.14

1.1

29.0

2240

FGD4001RV-R 3G95

3x95(S)

19/2.52

1.1

33.5

3050

FGD4001RV-R 3G120

3x120(S)

37/2.03

1.2

37.5

3800

FGD4001RV-R 3G150

3x150(S)

37/2.25

1.4

40.5

4640

FGD4001RV-R 3G185

3x185(S)

37/2.52

1.6

45.0

5870

FGD4001RV-R 3G40

3x240(S)

61/2.25

1.7

50.5

7670

FGD4001RV-R 3G300

3x300(S)

61/2.52

1.8

57.0

9460

FGD4001RV-R 3G400

3x400(S)

61/2.85

2.0

63.0

11945

3CORE + 1EARTHCONDUCTOR

FGD4001RV-R 3G16/6

3x16/6

7/1.70

0.7

16.5

698

FGD4001RV-R 3G16/10

3x16/10

7/1.70

0.7

18.85

793

FGD4001RV-R 3G25/6

3x25/6

7/2.14

0.9

21.7

956

FGD4001RV-R 3G25/10

3x25/10

7/2.14

0.9

22.1

1021

FGD4001RV-R 3G25/16

3x25/16

7/2.14

0.9

23.0

1070

FGD4001RV-R 3G35/10

3x35/10

19/1.53

0.9

22.9

1263

FGD4001RV-R 3G35/16

3x35/16

19/1.53

0.9

24.3

1349

FGD4001RV-R 3G35/25

3x35/25

19/1.53

0.9

25.2

1470

FGD4001RV-R 3G50/16

3x50/16

19/1.78

1.0

26.1

1769

FGD4001RV-R 3G50/25

3x50/25

19/1.78

1.0

27.3

1890

FGD4001RV-R 3G50/35

3x50/35

19/1.78

1.0

27.8

1995

FGD4001RV-R 3G70/25

3x70/25

19/2.14

1.1

30.2

2530

FGD4001RV-R 3G70/35

3x70/35

19/2.14

1.1

30.9

2660

FGD4001RV-R 3G70/50

3x70/50

19/2.14

1.1

31.5

2840

FGD4001RV-R 3G95/25

3x95/25

19/2.52

1.1

35.1

3340

FGD4001RV-R 3G95/35

3x95/35

19/2.52

1.1

36.0

3470

FGD4001RV-R 3G95/50

3x95/50

19/2.52

1.1

36.8

3650

FGD4001RV-R 3G95/70

3x95/70

19/2.52

1.1

36.9

3890

FGD4001RV-R 3G120/35

3x120/35

37/2.03

1.2

38.2

3920

FGD4001RV-R 3G120/50

3x120/50

37/2.03

1.2

39.1

4400

FGD4001RV-R 3G120/70

3x120/70

37/2.03

1.2

40.0

4610

FGD4001RV-R 3G120/95

3x120/95

37/2.03

1.2

41.2

4820

FGD4001RV-R 3G150/50

3x150/50

37/2.25

1.4

41.5

5240

FGD4001RV-R 3G150/70

3x150/70

37/2.25

1.4

42.3

5450

FGD4001RV-R 3G150/95

3x150/95

37/2.25

1.4

43.6

5660

FGD4001RV-R 3G150/120

3x150/120

37/2.25

1.4

44.8

6240

FGD4001RV-R 3G185/70

3x185/70

37/2.52

1.6

47.5

6680

FGD4001RV-R 3G185/95

3x185/95

37/2.52

1.6

47.9

6990

FGD4001RV-R 3G185/120

3x185/120

37/2.52

1.6

48.5

7395

FGD4001RV-R 3G185/150

3x185/150

37/2.52

1.6

49.2

7580

FGD4001RV-R 3G240/95

3x240/95

61/2.25

1.7

53.4

8690

FGD4001RV-R 3G240/120

3x240/120

61/2.25

1.7

54.9

9095

FGD4001RV-R 3G240/150

3x240/150

61/2.25

1.7

55.6

9380

FGD4001RV-R 3G240/185

3x240/185

61/2.25

1.7

56.8

9687

FGD4001RV-R 3G300/120

3x300/120

61/2.52

1.8

58.1

10480

FGD4001RV-R 3G300/150

3x300/150

61/2.52

1.8

57.3

11170

FGD4001RV-R 3G300/185

3x300/185

61/2.52

1.8

58.7

11480

FGD4001RV-R 3G300/240

3x300/240

61/2.52

1.8

62.4

11290

4 CORES

FGD4001RV-R 4G1.5

4x1.5

7/0.53

0.7

11.3

169

FGD4001RV-R 4G2.5

4x2.5

7/0.67

0.7

12.3

220

FGD4001RV-R 4G4

4x4

7/0.85

0.7

13.6

297

FGD4001RV-R 4G6

4x6

7/1.04

0.7

15.0

392

FGD4001RV-R 4G10

4x10

7/1.35

0.7

17.2

585

FGD4001RV-R 4G16

4x16

7/1.70

0.7

19.7

851

FGD4001RV-R 4G25

4x25

7/2.14

0.9

23.9

1200

FGD4001RV-R 4G35

4x35(S)

7/2.52

0.9

25.0

1600

FGD4001RV-R 4G50

4x50(S)

19/1.78

1.0

28.0

2200

FGD4001RV-R 4G70

4x70(S)

19/2.14

1.1

32.0

3050

FGD4001RV-R 4G95

4x95(S)

19/2.52

1.1

37.0

4070

FGD4001RV-R 4G120

4x120(S)

37/2.03

1.2

42.0

5915

FGD4001RV-R 4G150

4x150(S)

37/2.25

1.4

46.0

6350

FGD4001RV-R 4G185

4x185(S)

37/2.52

1.6

50.0

7890

FGD4001RV-R 4G240

4x240(S)

61/2.25

1.7

57.0

10400

FGD4001RV-R 4G300

4x300(S)

61/2.52

1.8

63.0

12810

FGD4001RV-R 4G400

4x400(S)

61/2.85

2.0

71.0

15869

FGD4001RV-R 4G500

4x500(S)

61/3.20

2.2

78.0

20300

4CORE + 1EARTHCONDUCTOR

FGD4001RV-R 4G16/6

4x16/6

7/1.70

0.7

19

654

FGD4001RV-R 4G16/10

4x16/10

7/1.70

0.7

21.9

962

FGD4001RV-R 4G25/6

4x25/10

7/2.14

0.7

25.3

1256

FGD4001RV-R 4G25/10

4x25/10

7/2.14

0.7

26.6

1311

FGD4001RV-R 4G25/16

4x25/16

7/2.14

0.7

27.3

1369

FGD4001RV-R 4G35/10

4x35/10

19/1.53

0.9

26.8

1658

FGD4001RV-R 4G35/16

4x35/16

19/1.53

0.9

27.6

1769

FGD4001RV-R 4G35/25

4x35/25

19/1.53

0.9

28.4

1890

FGD4001RV-R 4G50/16

4x50/16

19/1.78

1.0

29.4

2369

FGD4001RV-R 4G50/25

4x50/25

19/1.78

1.0

31.6

2490

FGD4001RV-R 4G50/35

4x50/35

19/1.78

1.0

33.2

2599

FGD4001RV-R 4G70/25

4x70/25

19/2.14

1.1

34.2

3340

FGD4001RV-R 4G70/35

4x70/35

19/2.14

1.1

35.6

3470

FGD4001RV-R 4G70/50

4x70/50

19/2.14

1.1

37.8

3650

FGD4001RV-R 4G95/25

4x95/25

19/2.52

1.1

42.6

4360

FGD4001RV-R 4G95/35

4x95/35

19/2.52

1.1

43.3

4510

FGD4001RV-R 4G95/50

4x95/50

19/2.52

1.1

44.1

4670

FGD4001RV-R 4G95/70

4x95/70

19/2.52

1.1

45.3

4783

FGD4001RV-R 4G120/35

4x120/35

37/2.03

1.2

42.6

6335

FGD4001RV-R 4G120/50

4x120/50

37/2.03

1.2

43.8

6515

FGD4001RV-R 4G120/70

4x120/70

37/2.03

1.2

45.9

6725

FGD4001RV-R 4G120/95

4x120/95

37/2.03

1.2

46.4

6920

FGD4001RV-R 4G150/50

4x150/50

37/2.25

1.4

47.3

6950

FGD4001RV-R 4G150/70

4x150/70

37/2.25

1.4

48.5

7160

FGD4001RV-R 4G150/95

4x150/95

37/2.25

1.4

50.2

7370

FGD4001RV-R 4G150/120

4x150/120

37/2.25

1.4

53.7

7965

FGD4001RV-R 4G185/70

4x185/70

37/2.52

1.6

52.4

8490

FGD4001RV-R 4G185/95

4x185/95

37/2.52

1.6

53.9

8700

FGD4001RV-R 4G185/120

4x185/120

37/2.52

1.6

55.6

8910

FGD4001RV-R 4G185/150

4x185/150

37/2.52

1.6

59.4

9260

FGD4001RV-R 4G240/95

4x240/95

61/2.25

1.7

61.9

11210

FGD4001RV-R 4G240/120

4x240/120

61/2.25

1.7

63.4

11420

FGD4001RV-R 4G240/150

4x240/150

61/2.25

1.7

63.9

12010

FGD4001RV-R 4G240/185

4x240/185

61/2.25

1.7

64.3

12090

FGD4001RV-R 4G300/120

4x300/120

61/2.52

1.8

64.0

12110

FGD4001RV-R 4G300/150

4x300/150

61/2.52

1.8

66.1

13830

FGD4001RV-R 4G300/185

4x300/185

61/2.52

1.8

71.5

14520

FGD4001RV-R 4G300/240

4x300/240

61/2.52

1.8

72.0

14830

5 CORES

FGD4001RV-R 5G1.5

5x1.5

7/0.53

0.7

13.7

205

FGD4001RV-R 5G2.5

5x2.5

7/0.85

0.7

14.9

265

FGD4001RV-R 5G4

5x4

7/0.85

0.7

16.3

360

FGD4001RV-R 5G6

5x6

7/1.04

0.7

18.2

478

FGD4001RV-R 5G10

5x10

7/1.04

0.7

20.8

720

FGD4001RV-R 5G16

5x16

7/1.04

0.7

24.2

1050

FGD4001RV-R 5G25

5x25

7/1.04

0.7

29.4

1485

FGD4001RV-R 5G35

5x35(S)

7/2.52

0.9

30.3

1940

FGD4001RV-R 5G50

5x50(S)

19/1.78

1.0

34

2667

FGD4001RV-R 5G70

5x70(S)

19/2.14

1.1

38.5

3698

FGD4001RV-R 5G95

5x95(S)

19/2.52

1.1

44.6

4934

FGD4001RV-R 5G120

5x120(S)

37/2.03

1.2

45.8

7171

FGD4001RV-R 5G150

5x150(S)

37/2.25

1.4

55.6

7699

FGD4001RV-R 5G185

5x185(S)

37/2.52

1.6

60.4

9566

FGD4001RV-R 5G240

5x240(S)

61/2.25

1.7

69.1

12610

FGD4001RV-R 5G300

5x300(S)

61/2.52

1.8

76.4

15532

FGD4001RV-R 5G400

5x400(S)

61/2.85

2.0

86.1

19241

FGD4001RV-R 5G500

5x500(S)

61/3.20

2.2

94.4

24613

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)



Conductor
cross- sectional area

Reference
Method4(enclosed

in conduitin thermally

insulatingwalletc)

Reference

Method3 (enclosed inconduit ona wallorin

trunkingetc)

 Reference
Method1
(clipped direct)

Reference
Method11
(onaperforated cabletray,
horizontalorvertical)

Reference
Method 12(freeair)

Horizontalflat spaced

Verticalflat spaced



Trefoil

 2cables, single- phase

a.c.ord.c.

 3 or 4cables, 3-phasea.c.

 2cables, single- phase

a.c.ord.c

 3 or 4cables, 3-phasea.c.

  2cables, single- phase
a.c.or
d.c. flat
and
touching

 3 or 4cables, 3-phase
a.c. flat
and
touching or trefoil

 2cables,
single- phase
a.c.or
d.c.orflat and touching

 3 or 4cables, 3-phase
a.c. flat
and
touching or trefoil

 2cables, single- phase
a.c.ord.c.or 3cables
three phase

2cables, single- phase
a.c.ord.c.or 3cables three phase

 3cables, trefoil
3-phasea.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

6

43

39

51

45

59

54

-

-

-

-

-

10

58

53

71

63

81

74

-

-

-

-

-

16

76

70

95

85

109

99

-

-

-

-

-

25

100

91

126

111

143

130

158

140

183

163

138

35

125

111

156

138

176

161

195

176

226

203

171

50

149

135

189

168

228

209

293

215

274

246

209

70

189

170

240

214

293

268

308

279

351

318

270

95

228

205

290

259

355

326

375

341

426

389

330

120

263

235

336

299

413

379

436

398

495

453

385

150

300

270

375

328

476

436

505

461

570

524

445

185

341

306

426

370

545

500

579

530

651

600

511

240

400

358

500

433

644

590

686

630

769

711

606

300

459

410

573

493

743

681

794

730

886

824

701

400

-

-

684

584

868

793

915

849

1065

994

820

500

-

-

783

666

990

904

1044

973

1228

1150

936

Voltage Drop (Per Amp Per Meter)





Size
of
conductor





2cablesd.c.

2cables,
single-phasea.c.

3or 4cables,3-phase a.c.

Ref.
Methods3

and 4(enclosed
inconduitetc, inoron a wall)

Ref.Methods1

and11
(clippeddirector ontraystouching)

Ref.Methods3

and 4(enclosed
inconduitetc, inoron a wall)



Ref.Methods1,

11 and12 (intrefoil)



Ref.
Methods1and11

(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10

6

7.8

7.9

6.8

6.8

6.8

6.8

10

4.7

4.7

4.7

4

4

4

16

2.9

2.9

2.9

2.5

2.5

2.5





r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

25

1.85

1.85

0.31

1.90

1.85

0.190

1.85

1.60

0.27

1.65

1.600

0.165

1.600

1.600

0.190

1.600

35

1.35

1.35

0.29

1.35

1.35

0.180

1.35

1.15

0.25

1.15

1.150

0.155

1.50

1.150

0.180

1.150

50

0.99

1.00

0.29

1.05

0.99

0.180

1.00

0.87

0.25

0.90

0.860

0.155

0.870

0.860

0.180

0.870

70

0.68

0.70

0.28

0.75

0.68

0.175

0.71

0.60

0.24

0.65

0.590

0.150

0.610

0.590

0.175

0.620

95

0.49

0.51

0.27

0.58

0.49

0.170

0.52

0.44

0.23

0.50

0.430

0.145

0.450

0.430

0.170

0.460

120

0.39

0.41

0.26

0.48

0.39

0.165

0.43

0.35

0.23

0.42

0.340

0.140

0.370

0.340

0.165

0.380

150

0.32

0.33

0.26

0.43

0.32

0.165

0.36

0.29

0.23

0.37

0.280

0.140

0.310

0.280

0.165

0.320

185

0.25

0.27

0.26

0.37

0.26

0.165

0.30

0.23

0.23

0.32

0.220

0.140

0.260

0.220

0.165

0.280

240

0.19

0.21

0.26

0.33

0.20

0.160

0.25

0.185

0.22

0.29

0.170

0.140

0.220

0.170

0.165

0.240

300

0.155

0.175

0.25

0.31

0.16

0.160

0.22

0.150

0.22

0.27

0.140

0.140

0.195

0.135

0.160

0.210

400

0.12

0.140

0.25

0.29

0.13

0.155

0.20

0.125

0.22

0.25

0.110

0.135

0.175

0.110

0.160

0.195

500

0.093

0.120

0.25

0.28

0.105

0.155

0.185

0.100

0.22

0.24

0.090

0.135

0.160

0.088

0.160

0.180
Note :
r = conductor resistance at operating temperature
x = reactance z = impedance
