450/750V LSZH Insulated, Non-sheathed Power Cables (Single Core)

APPLICATION
This cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design to BS 7211
FIRE PERFORMANCE

FlameRetardance (SingleVerticalWireTest)	EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)	EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*
NoCorrosive GasEmission	IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*
MinimumSmokeEmission	IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2;BS 7622-1&2
NoToxic Gases	NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
450/750V

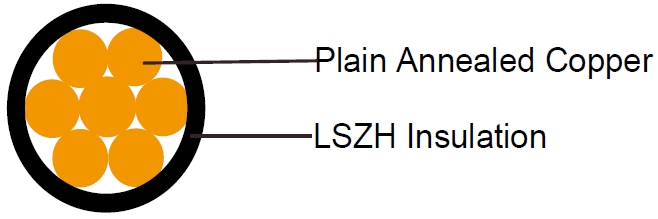

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: LSZH compound
COLOUR CODE
Insulation Colour : Natural
Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius : 6 x OD
Electrical PROPERTIES

DielectricTest:	2500 Vr.m.s.x 5’(core/core)
Insulation Resistance	500 MΩ x km ( at 20°C )
ShortcircuitTemperature	250°C ( up to5secs)

CONSTRUCTION PARAMETERS

Cable Code	Conductor
Cable Code	No.of Core XCross Section	No./ Nominal Diameterof Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
	Noxmm2	No./mm	mm	mm	kg/km
FTX100 07Z1-R1G1.5	1x1.5	7/0.53	0.7	3.1	23
FTX100 07Z1-R1G2.5	1x2.5	7/0.67	0.8	3.7	35
FTX100 07Z1-R1G4	1x4	7/0.85	0.8	4.3	52
FTX100 07Z1-R1G6	1x6	7/1.04	0.8	4.8	73
FTX100 07Z1-R1G10	1x10	7/1.35	1.0	6.2	120
FTX100 07Z1-R1G16	1x16	7/1.70	1.0	7.2	180
FTX100 07Z1-R1G25	1x25	7/2.24	1.2	9.0	285
FTX100 07Z1-R1G35	1x35	19/1.53	1.2	10.2	375
FTX100 07Z1-R1G50	1x50	19/1.78	1.4	12.0	510
FTX100 07Z1-R1G70	1x70	19/2.14	1.4	14.0	720
FTX100 07Z1-R1G95	1x95	19/2.52	1.6	16.0	995
FTX100 07Z1-R1G120	1x120	37/2.03	1.6	18.0	1230
FTX100 07Z1-R1G150	1x150	37/2.25	1.8	20.0	1520
FTX100 07Z1-R1G185	1x185	37/2.52	2.0	22.0	1900
FTX100 07Z1-R1G240	1x240	61/2.25	2.2	25.0	2480
FTX100 07Z1-R1G300	1x300	61/2.52	2.4	28.0	3100
FTX100 07Z1-R1G400	1x400	61.2.85	2.6	31.5	3950
FTX100 07Z1-R1G500	1x500	61/3.20	2.8	35.0	4950
FTX100 07Z1-R1G630	1x630	127/2.52	2.8	39.0	6360

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area	Reference Method4 (enclosed inconduitin thermally insulating walletc)		Reference Method3 (enclosed inconduit ona wallorin trunkingetc)		Reference Method1 (clipped direct)		Reference Method11 (onaperforated cabletray, horizontalorvertical)		Reference Method 12 (freeair)
Conductor cross- sectional area					Reference Method1 (clipped direct)				Horizontalflat spaced	Verticalflat spaced	Trefoil
	2cables, single- phase a.c.ord.c.	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.ord.c	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.or d.c. flat and touching	3 or 4cables, 3-phase a.c. flat and touching or trefoil	2cables, single- phase a.c.or d.c.orflat and touching	3 or cables, 3-phase a.c. flat and touching or trefoil	2cables, single- phase a.c.ord.c.or 3cables three phase	2cables, single- phase a.c.ord.c. or 3 cables three phase	3 cables, trefoil 3- phasea.c.
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	18	17	22	19	25	23	-	-	-	-	-
2.5	24	23	30	26	34	31	-	-	-	-	-
4	33	30	40	35	46	41	-	-	-	-	-
6	43	39	51	45	59	54	-	-	-	-	-
10	58	53	71	63	81	74	-	-	-	-	-
16	76	70	95	85	109	99	-	-	-	-	-

25	100	91	126	111	143	130	158	140	183	163	138
35	125	111	156	138	176	161	195	176	226	203	171
50	149	135	189	168	228	209	293	215	274	246	209
70	189	170	240	214	293	268	308	279	351	318	270
95	228	205	290	259	355	326	375	341	426	389	330
120	263	235	336	299	413	379	436	398	495	453	385
150	300	270	375	328	476	436	505	461	570	524	445
185	341	306	426	370	545	500	579	530	651	600	511
240	400	358	500	433	644	590	686	630	769	711	606
300	459	410	573	493	743	681	794	730	886	824	701
400	-	-	684	584	868	793	915	849	1065	994	820
500	-	-	783	666	990	904	1044	973	1228	1150	936
630	-	-	900	764	1130	1033	1191	1115	1423	1338	1069

Voltage Drop (Per Amp Per Meter)

Nominal CrossSection Area	2cables d.c.	2cables, single-phasea.c.		3or 4cables,3-phase a.c.
		Ref. Methods3 and 4 (enclosed inconduitetc ,inoron a wall)	Ref. Methods1 and11 (clippeddirector ontray stouching)	Ref. Methods3 and 4 (enclosed inconduitetc, inoron a wall)	Ref. Methods1,	Ref. Methods1and11
		Ref. Methods3 and 4 (enclosed inconduitetc ,inoron a wall)	Ref. Methods1 and11 (clippeddirector ontray stouching)	Ref. Methods3 and 4 (enclosed inconduitetc, inoron a wall)	11 and12 (in trefoil)	(Flat and touching)
1	2	3	4	5	6	7
mm2	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m

1.5	31	31			27			27			27			27
2.5	19	19			16			16			16			16
4	33	12			10			10			10			10
6	7.8	7.9			6.8			6.8			6.8			6.8
10	4.7	4.7			4.7			4			4			4
16	2.9	2.9			2.9			2.5			2.5			2.5
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
25	1.85	1.85	0.31	1.9	1.85	0.19	1.85	1.6	0.27	1.65	1.6	0.165	1.6	1.6	0.19	1.6
35	1.35	1.35	0.29	1.35	1.35	0.18	1.35	1.15	0.25	1.15	1.15	0.155	1.5	1.15	0.18	1.15
50	0.99	1	0.29	1.05	0.99	0.18	1	0.87	0.25	0.9	0.86	0.155	0.87	0.86	0.18	0.87
70	0.68	0.7	0.28	0.75	0.68	0.175	0.71	0.6	0.24	0.65	0.59	0.15	0.61	0.59	0.175	0.62
95	0.49	0.51	0.27	0.58	0.49	0.17	0.52	0.44	0.23	0.5	0.43	0.145	0.45	0.43	0.17	0.46
120	0.39	0.41	0.26	0.48	0.39	0.165	0.43	0.35	0.23	0.42	0.34	0.14	0.37	0.34	0.165	0.38
150	0.32	0.33	0.26	0.43	0.32	0.165	0.36	0.29	0.23	0.37	0.28	0.14	0.31	0.28	0.165	0.32
185	0.25	0.27	0.26	0.37	0.26	0.165	0.3	0.23	0.23	0.32	0.22	0.14	0.26	0.22	0.165	0.28
240	0.19	0.21	0.26	0.33	0.2	0.16	0.25	0.185	0.22	0.29	0.17	0.14	0.22	0.17	0.165	0.24
300	0.155	0.175	0.25	0.31	0.16	0.16	0.22	0.15	0.22	0.27	0.14	0.14	0.195	0.135	0.16	0.21
400	0.12	0.14	0.25	0.29	0.13	0.155	0.2	0.125	0.22	0.25	0.11	0.135	0.175	0.11	0.16	0.195
500	0.093	0.12	0.25	0.28	0.105	0.155	0.185	0.1	0.22	0.24	0.09	0.135	0.16	0.088	0.16	0.18
630	0.072	0.1	0.25	0.27	0.086	0.155	0.175	0.088	0.21	0.23	0.074	0.135	0.15	0.071	0.16	0.17

Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
