FTX400 1RZ1-R (CU/XLPE/LSZH 600/1000V Multicore)

APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design to IEC 60502-1
FIRE PERFORMANCE

FlameRetardance (SingleVerticalWireTest)

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)

EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*

NoCorrosive GasEmission

IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*

MinimumSmokeEmission

IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2*

NoToxic Gases

NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
600/1000V

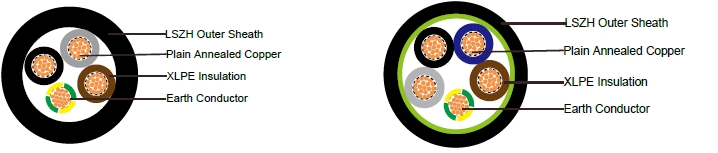

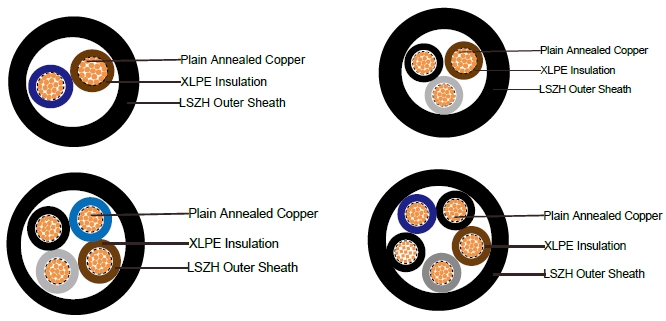

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.
COLOUR CODE
Insulation Colour as per BS7671



WithEarth Conductor

WithoutEarth Conductor

2 Cores

-

Brown,Blue

3 Cores

Yellow/Green,Brown,Blue

Brown,Gray, Black

4 Cores

Yellow/Green,Brown,Gray, Black

Brown,Gray, Black,Blue

5 Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray, Black,Blue,Black

Above5 Cores

Yellow/Green,BlackNumbered

Black Numbered

Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 6 x OD
Electrical PROPERTIES

DielectricTest:

3500 Vr.m.s.x 5’(core/core)

Insulation Resistance

500 MΩ x km ( at 20°C )

ShortcircuitTemperature

250°C ( up to5secs)

CONSTRUCTION PARAMETERS







Cable
Code

Conductor





Nominal
Overall Diameter







Approx. Weight

No. of CoreX

Cross
Section/CPC
Cross
Section





No./
Nominal
Diameter
of
Strands





Nominal
Insulation Thickness



No.×mm2

No./mm

mm

mm

mm

2 CORES

FTX400 1RZ1-R2G1.5

2x1.5

7/0.53

0.7

10.0

126

FTX400 1RZ1-R2G2.5

2x2.5

7/0.67

0.7

10.8

158

FTX400 1RZ1-R2G4

2x4

7/0.85

0.7

11.9

205

FTX400 1RZ1-R2G6

2x6

7/1.04

0.7

13.0

264

FTX400 1RZ1-R2G10

2x10

7/1.35

0.7

14.9

378

FTX400 1RZ1-R2G16

2x16

7/1.70

0.7

17.0

534

FTX400 1RZ1-R2G25

2x25

7/2.14

0.9

20.4

650

FTX400 1RZ1-R2G35

2x35

7/2.52

0.9

22.7

880

3 CORES

FTX400 1RZ1-R3G1.5

3x1.5

7/0.53

0.7

10.5

145

FTX400 1RZ1-R3G2.5

3x2.5

7/0.67

0.7

11.4

185

FTX400 1RZ1-R3G4

3x4

7/0.85

0.7

12.5

247

FTX400 1RZ1-R3G6

3x6

7/1.04

0.7

13.8

323

FTX400 1RZ1-R3G10

3x10

7/1.35

0.7

15.8

474

FTX400 1RZ1-R3G16

3x16

7/1.70

0.7

18.0

682

FTX400 1RZ1-R3G25

3x25

7/2.14

0.9

21.7

910

FTX400 1RZ1-R3G35

3x35

7/2.52

0.9

24.0

1180

FTX400 1RZ1-R3G50

3x50(S)

19/1.78

1.0

25.5

1600

FTX400 1RZ1-R3G70

3x70(S)

19/2.14

1.1

29.0

2240

FTX400 1RZ1-R3G95

3x95(S)

19/2.52

1.1

33.5

3050

FTX400 1RZ1-R3G120

3x120(S)

37/2.03

1.2

37.5

3800

FTX400 1RZ1-R3G150

3x150(S)

37/2.25

1.4

40.5

4640

FTX400 1RZ1-R3G185

3x185(S)

37/2.52

1.6

45.0

5870

FTX400 1RZ1-R3G40

3x240(S)

61/2.25

1.7

50.5

7670

FTX400 1RZ1-R3G300

3x300(S)

61/2.52

1.8

57.0

9460

FTX400 1RZ1-R3G400

3x400(S)

61/2.85

2.0

63.0

11945

3CORE + 1EARTHCONDUCTOR

FTX400 1RZ1-R3G16/6

3x16/6

7/1.70

0.7

16.5

698

FTX400 1RZ1-R3G16/10

3x16/10

7/1.70

0.7

18.85

793

FTX400 1RZ1-R3G25/6

3x25/6

7/2.14

0.9

21.7

956

FTX400 1RZ1-R3G25/10

3x25/10

7/2.14

0.9

22.1

1021

FTX400 1RZ1-R3G25/16

3x25/16

7/2.14

0.9

23.0

1070

FTX400 1RZ1-R3G35/10

3x35/10

19/1.53

0.9

22.9

1263

FTX400 1RZ1-R3G35/16

3x35/16

19/1.53

0.9

24.3

1349

FTX400 1RZ1-R3G35/25

3x35/25

19/1.53

0.9

25.2

1470

FTX400 1RZ1-R3G50/16

3x50/16

19/1.78

1.0

26.1

1769

FTX400 1RZ1-R3G50/25

3x50/25

19/1.78

1.0

27.3

1890

FTX400 1RZ1-R3G50/35

3x50/35

19/1.78

1.0

27.8

1995

FTX400 1RZ1-R3G70/25

3x70/25

19/2.14

1.1

30.2

2530

FTX400 1RZ1-R3G70/35

3x70/35

19/2.14

1.1

30.9

2660

FTX400 1RZ1-R3G70/50

3x70/50

19/2.14

1.1

31.5

2840

FTX400 1RZ1-R3G95/25

3x95/25

19/2.52

1.1

35.1

3340

FTX400 1RZ1-R3G95/35

3x95/35

19/2.52

1.1

36.0

3470

FTX400 1RZ1-R3G95/50

3x95/50

19/2.52

1.1

36.8

3650

FTX400 1RZ1-R3G95/70

3x95/70

19/2.52

1.1

36.9

3890

FTX400 1RZ1-R3G120/35

3x120/35

37/2.03

1.2

38.2

3920

FTX400 1RZ1-R3G120/50

3x120/50

37/2.03

1.2

39.1

4400

FTX400 1RZ1-R3G120/70

3x120/70

37/2.03

1.2

40.0

4610

FTX400 1RZ1-R3G120/95

3x120/95

37/2.03

1.2

41.2

4820

FTX400 1RZ1-R3G150/50

3x150/50

37/2.25

1.4

41.5

5240

FTX400 1RZ1-R3G150/70

3x150/70

37/2.25

1.4

42.3

5450

FTX400 1RZ1-R3G150/95

3x150/95

37/2.25

1.4

43.6

5660

FTX400 1RZ1-R3G150/120

3x150/120

37/2.25

1.4

44.8

6240

FTX400 1RZ1-R3G185/70

3x185/70

37/2.52

1.6

47.5

6680

FTX400 1RZ1-R3G185/95

3x185/95

37/2.52

1.6

47.9

6990

FTX400 1RZ1-R3G185/120

3x185/120

37/2.52

1.6

48.5

7395

FTX400 1RZ1-R3G185/150

3x185/150

37/2.52

1.6

49.2

7580

FTX400 1RZ1-R3G240/95

3x240/95

61/2.25

1.7

53.4

8690

FTX400 1RZ1-R3G240/120

3x240/120

61/2.25

1.7

54.9

9095

FTX400 1RZ1-R3G240/150

3x240/150

61/2.25

1.7

55.6

9380

FTX400 1RZ1-R3G240/185

3x240/185

61/2.25

1.7

56.8

9687

FTX400 1RZ1-R3G300/120

3x300/120

61/2.52

1.8

58.1

10480

FTX400 1RZ1-R3G300/150

3x300/150

61/2.52

1.8

57.3

11170

FTX400 1RZ1-R3G300/185

3x300/185

61/2.52

1.8

58.7

11480

FTX400 1RZ1-R3G300/240

3x300/240

61/2.52

1.8

62.4

11290

4 CORES

FTX400 1RZ1-R4G1.5

4x1.5

7/0.53

0.7

11.3

169

FTX400 1RZ1-R4G2.5

4x2.5

7/0.67

0.7

12.3

220

FTX400 1RZ1-R4G4

4x4

7/0.85

0.7

13.6

297

FTX400 1RZ1-R4G6

4x6

7/1.04

0.7

15.0

392

FTX400 1RZ1-R4G10

4x10

7/1.35

0.7

17.2

585

FTX400 1RZ1-R4G16

4x16

7/1.70

0.7

19.7

851

FTX400 1RZ1-R4G25

4x25

7/2.14

0.9

23.9

1200

FTX400 1RZ1-R4G35

4x35(S)

7/2.52

0.9

25.0

1600

FTX400 1RZ1-R4G50

4x50(S)

19/1.78

1.0

28.0

2200

FTX400 1RZ1-R4G70

4x70(S)

19/2.14

1.1

32.0

3050

FTX400 1RZ1-R4G95

4x95(S)

19/2.52

1.1

37.0

4070

FTX400 1RZ1-R4G120

4x120(S)

37/2.03

1.2

42.0

5915

FTX400 1RZ1-R4G150

4x150(S)

37/2.25

1.4

46.0

6350

FTX400 1RZ1-R4G185

4x185(S)

37/2.52

1.6

50.0

7890

FTX400 1RZ1-R4G240

4x240(S)

61/2.25

1.7

57.0

10400

FTX400 1RZ1-R4G300

4x300(S)

61/2.52

1.8

63.0

12810

FTX400 1RZ1-R4G400

4x400(S)

61/2.85

2.0

71.0

15869

FTX400 1RZ1-R4G500

4x500(S)

61/3.20

2.2

78.0

20300

4CORE + 1EARTHCONDUCTOR

FTX400 1RZ1-R4G16/6

4x16/6

7/1.70

0.7

19

654

FTX400 1RZ1-R4G16/10

4x16/10

7/1.70

0.7

21.9

962

FTX400 1RZ1-R4G25/6

4x25/10

7/2.14

0.7

25.3

1256

FTX400 1RZ1-R4G25/10

4x25/10

7/2.14

0.7

26.6

1311

FTX400 1RZ1-R4G25/16

4x25/16

7/2.14

0.7

27.3

1369

FTX400 1RZ1-R4G35/10

4x35/10

19/1.53

0.9

26.8

1658

FTX400 1RZ1-R4G35/16

4x35/16

19/1.53

0.9

27.6

1769

FTX400 1RZ1-R4G35/25

4x35/25

19/1.53

0.9

28.4

1890

FTX400 1RZ1-R4G50/16

4x50/16

19/1.78

1.0

29.4

2369

FTX400 1RZ1-R4G50/25

4x50/25

19/1.78

1.0

31.6

2490

FTX400 1RZ1-R4G50/35

4x50/35

19/1.78

1.0

33.2

2599

FTX400 1RZ1-R4G70/25

4x70/25

19/2.14

1.1

34.2

3340

FTX400 1RZ1-R4G70/35

4x70/35

19/2.14

1.1

35.6

3470

FTX400 1RZ1-R4G70/50

4x70/50

19/2.14

1.1

37.8

3650

FTX400 1RZ1-R4G95/25

4x95/25

19/2.52

1.1

42.6

4360

FTX400 1RZ1-R4G95/35

4x95/35

19/2.52

1.1

43.3

4510

FTX400 1RZ1-R4G95/50

4x95/50

19/2.52

1.1

44.1

4670

FTX400 1RZ1-R4G95/70

4x95/70

19/2.52

1.1

45.3

4783

FTX400 1RZ1-R4G120/35

4x120/35

37/2.03

1.2

42.6

6335

FTX400 1RZ1-R4G120/50

4x120/50

37/2.03

1.2

43.8

6515

FTX400 1RZ1-R4G120/70

4x120/70

37/2.03

1.2

45.9

6725

FTX400 1RZ1-R4G120/95

4x120/95

37/2.03

1.2

46.4

6920

FTX400 1RZ1-R4G150/50

4x150/50

37/2.25

1.4

47.3

6950

FTX400 1RZ1-R4G150/70

4x150/70

37/2.25

1.4

48.5

7160

FTX400 1RZ1-R4G150/95

4x150/95

37/2.25

1.4

50.2

7370

FTX400 1RZ1-R4G150/120

4x150/120

37/2.25

1.4

53.7

7965

FTX400 1RZ1-R4G185/70

4x185/70

37/2.52

1.6

52.4

8490

FTX400 1RZ1-R4G185/95

4x185/95

37/2.52

1.6

53.9

8700

FTX400 1RZ1-R4G185/120

4x185/120

37/2.52

1.6

55.6

8910

FTX400 1RZ1-R4G185/150

4x185/150

37/2.52

1.6

59.4

9260

FTX400 1RZ1-R4G240/95

4x240/95

61/2.25

1.7

61.9

11210

FTX400 1RZ1-R4G240/120

4x240/120

61/2.25

1.7

63.4

11420

FTX400 1RZ1-R4G240/150

4x240/150

61/2.25

1.7

63.9

12010

FTX400 1RZ1-R4G240/185

4x240/185

61/2.25

1.7

64.3

12090

FTX400 1RZ1-R4G300/120

4x300/120

61/2.52

1.8

64.0

12110

FTX400 1RZ1-R4G300/150

4x300/150

61/2.52

1.8

66.1

13830

FTX400 1RZ1-R4G300/185

4x300/185

61/2.52

1.8

71.5

14520

FTX400 1RZ1-R4G300/240

4x300/240

61/2.52

1.8

72.0

14830

5 CORES

FTX400 1RZ1-R5G1.5

5x1.5

7/0.53

0.7

13.7

205

FTX400 1RZ1-R5G2.5

5x2.5

7/0.85

0.7

14.9

265

FTX400 1RZ1-R5G4

5x4

7/0.85

0.7

16.3

360

FTX400 1RZ1-R5G6

5x6

7/1.04

0.7

18.2

478

FTX400 1RZ1-R5G10

5x10

7/1.04

0.7

20.8

720

FTX400 1RZ1-R5G16

5x16

7/1.04

0.7

24.2

1050

FTX400 1RZ1-R5G25

5x25

7/1.04

0.7

29.4

1485

FTX400 1RZ1-R5G35

5x35(S)

7/2.52

0.9

30.3

1940

FTX400 1RZ1-R5G50

5x50(S)

19/1.78

1.0

34

2667

FTX400 1RZ1-R5G70

5x70(S)

19/2.14

1.1

38.5

3698

FTX400 1RZ1-R5G95

5x95(S)

19/2.52

1.1

44.6

4934

FTX400 1RZ1-R5G120

5x120(S)

37/2.03

1.2

45.8

7171

FTX400 1RZ1-R5G150

5x150(S)

37/2.25

1.4

55.6

7699

FTX400 1RZ1-R5G185

5x185(S)

37/2.52

1.6

60.4

9566

FTX400 1RZ1-R5G240

5x240(S)

61/2.25

1.7

69.1

12610

FTX400 1RZ1-R5G300

5x300(S)

61/2.52

1.8

76.4

15532

FTX400 1RZ1-R5G400

5x400(S)

61/2.85

2.0

86.1

19241

FTX400 1RZ1-R5G500

5x500(S)

61/3.20

2.2

94.4

24613

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)



Conductor
cross- sectional area

Reference
Method4
(enclosed

in conduitin thermally

insulatingwalletc)

Reference

Method3 (enclosed inconduit ona wallorin

trunkingetc)





Reference
Method1
(clipped direct)

Reference
Method11
(onaperforated cabletray,
horizontalorvertical)

Reference
Method 12
(freeair)

Horizontalflat spaced

Verticalflat spaced



Trefoil

 2
cables, single- phase

a.c.ord.c.

3 or 4cables, 3-phasea.c.

 2
cables, single- phase

a.c.ord.c

 3 or 4cables, 3-phasea.c.

 2cables, single- phase
a.c.or
d.c. flat
and
touching

 3 or 4cables, 3-phase
a.c. flat
and
touching or trefoil

 2cables,
single- phase
a.c.or
d.c.orflat and touching

 3 or 4cables, 3-phase
a.c. flat
and
touching or trefoil

 2cables, single- phase
a.c.ord.c.or 3cables
three phase

2cables, single- phase
a.c.ord.c.or 3cables three phase

 3cables, trefoil
3-phasea.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

6

43

39

51

45

59

54

-

-

-

-

-

10

58

53

71

63

81

74

-

-

-

-

-

16

76

70

95

85

109

99

-

-

-

-

-

25

100

91

126

111

143

130

158

140

183

163

138

35

125

111

156

138

176

161

195

176

226

203

171

50

149

135

189

168

228

209

293

215

274

246

209

70

189

170

240

214

293

268

308

279

351

318

270

95

228

205

290

259

355

326

375

341

426

389

330

120

263

235

336

299

413

379

436

398

495

453

385

150

300

270

375

328

476

436

505

461

570

524

445

185

341

306

426

370

545

500

579

530

651

600

511

240

400

358

500

433

644

590

686

630

769

711

606

300

459

410

573

493

743

681

794

730

886

824

701

400

-

-

684

584

868

793

915

849

1065

994

820

500

-

-

783

666

990

904

1044

973

1228

1150

936

Voltage Drop (Per Amp Per Meter)





Size
of
conductor

 2
cables d.c.

2cables,
single-phasea.c.

3or 4cables,3-phase a.c.

Ref.
Methods3
and 4(enclosed
inconduitetc, inoron a wall)

Ref.Methods1

and11
(clippeddirector ontray
stouching)

Ref.Methods3
and 4(enclosedin
conduitetc, inoron a wall)

 Ref.
Methods1,
11 and12 (intrefoil)

 Ref.
Methods1
and11
(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10

6

7.8

7.9

6.8

6.8

6.8

6.8

10

4.7

4.7

4.7

4

4

4

16

2.9

2.9

2.9

2.5

2.5

2.5





r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

25

1.85

1.85

0.31

1.90

1.85

0.190

1.85

1.60

0.27

1.65

1.600

0.165

1.600

1.600

0.190

1.600

35

1.35

1.35

0.29

1.35

1.35

0.180

1.35

1.15

0.25

1.15

1.150

0.155

1.50

1.150

0.180

1.150

50

0.99

1.00

0.29

1.05

0.99

0.180

1.00

0.87

0.25

0.90

0.860

0.155

0.870

0.860

0.180

0.870

70

0.68

0.70

0.28

0.75

0.68

0.175

0.71

0.60

0.24

0.65

0.590

0.150

0.610

0.590

0.175

0.620

95

0.49

0.51

0.27

0.58

0.49

0.170

0.52

0.44

0.23

0.50

0.430

0.145

0.450

0.430

0.170

0.460

120

0.39

0.41

0.26

0.48

0.39

0.165

0.43

0.35

0.23

0.42

0.340

0.140

0.370

0.340

0.165

0.380

150

0.32

0.33

0.26

0.43

0.32

0.165

0.36

0.29

0.23

0.37

0.280

0.140

0.310

0.280

0.165

0.320

185

0.25

0.27

0.26

0.37

0.26

0.165

0.30

0.23

0.23

0.32

0.220

0.140

0.260

0.220

0.165

0.280

240

0.19

0.21

0.26

0.33

0.20

0.160

0.25

0.185

0.22

0.29

0.170

0.140

0.220

0.170

0.165

0.240

300

0.155

0.175

0.25

0.31

0.16

0.160

0.22

0.150

0.22

0.27

0.140

0.140

0.195

0.135

0.160

0.210

400

0.12

0.140

0.25

0.29

0.13

0.155

0.20

0.125

0.22

0.25

0.110

0.135

0.175

0.110

0.160

0.195

500

0.093

0.120

0.25

0.28

0.105

0.155

0.185

0.100

0.22

0.24

0.090

0.135

0.160

0.088

0.160

0.180
Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
