FlameRetardance(SingleVerticalWireTest)

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)

EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*

NoCorrosive GasEmission

IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*

MinimumSmokeEmission

IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2*

NoToxic Gases

NES02-713;NF C 20-454

WithEarth Conductor

WithoutEarth Conductor

2 Cores

-

Brown,Blue

3 Cores

Yellow/Green,Brown,Blue

Brown,Gray, Black

4 Cores

Yellow/Green,Brown,Gray, Black

Brown,Gray, Black,Blue

5 Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray, Black,Blue,Black

Above5 Cores

Yellow/Green,BlackNumbered

Black Numbered

DielectricTest:

3500 Vr.m.s.x 5’(core/core)

Insulation Resistance

500 MΩ x km ( at 20°C)

ShortcircuitTemperature

250°C ( up to5secs)

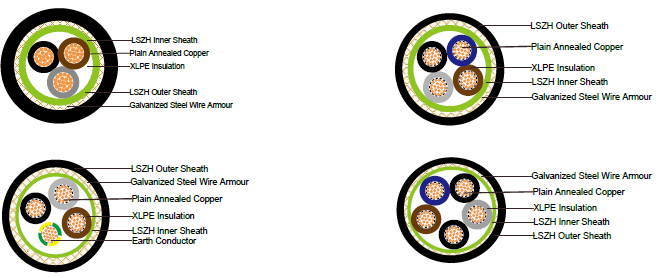

Cable
Code

Conductor

Nominal
Insulation Thickness

Diameter
Under
Armour

Armour Wire Diameter

Nominal
Overall Diameter

Approx. Weight

No.of
CoreX
Cross
Section/CPC
Cross
Section

No./
Nomina
lDiameter
of
Strands

No.×mm2

No./mm

mm

mm

mm

mm

kg/km

3 CORES

FTX4001RZ1MZ1-R 3G1.5

3x1.5

7/0.53

0.6

9.0

0.9

12.6

340

FTX4001RZ1MZ1-R 3G2.5

3x2.5

7/0.67

0.7

9.9

0.9

14.1

408

FTX4001RZ1MZ1-R 3G4

3x4

7/0.85

0.7

11.0

0.9

15.3

498

FTX4001RZ1MZ1-R 3G6

3x6

7/1.04

0.7

11.6

1.25

16.6

600

FTX4001RZ1MZ1-R 3G10

3x10

7/1.35

0.7

14.3

1.25

19.5

915

FTX4001RZ1MZ1-R 3G16

3x16

7/1.70

0.7

16.5

1.25

21.6

1130

FTX4001RZ1MZ1-R 3G25

3x25

7/2.14

0.9

20.2

1.6

26.7

1710

FTX4001RZ1MZ1-R 3G35

3x35

7/2.52

0.9

22.4

1.6

29.4

2100

FTX4001RZ1MZ1-R 3G50

3x50(S)

19/1.78

1.0

24.2

1.6

28.5

2450

FTX4001RZ1MZ1-R 3G70

3x70(S)

19/2.14

1.1

28.2

2.0

32.2

3120

FTX4001RZ1MZ1-R 3G95

3x95(S)

19/2.52

1.1

31.7

2.0

37.0

4310

FTX4001RZ1MZ1-R 3G120

3x120(S)

37/2.03

1.2

36.0

2.0

40.4

5160

FTX4001RZ1MZ1-R 3G150

3x150(S)

37/2.25

1.4

39.5

2.5

45.5

7160

FTX4001RZ1MZ1-R 3G185

3x185(S)

37/2.52

1.6

43.3

2.5

49.8

8600

FTX4001RZ1MZ1-R 3G240

3x240(S)

61/2.25

1.7

48.4

2.5

55.1

10750

FTX4001RZ1MZ1-R 3G300

3x300(S)

61/2.52

1.8

54.4

2.5

60.2

13080

FTX4001RZ1MZ1-R 3G400

3x400(S)

61/2.85

2.0

57.8

2.5

66.6

15810

3CORES + 1EARTHCONDUCTOR

FTX4001RZ1MZ1-R 3G16/6

3xl6/6

7/1.70

0.7

17.6

1.25

22.6

1342

FTX4001RZ1MZ1-R 3G16/10

3x16/l0

7/1.70

0.7

20.6

1.25

23.0

1567

FTX4001RZ1MZ1-R 3G25/6

3x25/6

7/2.14

0.9

26.3

1.25

27.1

1876

FTX4001RZ1MZ1-R 3G25/10

3x25/10

7/2.14

0.9

26.3

1.25

27.6

2091

FTX4001RZ1MZ1-R 3G25/16

3x25/16

7/2.14

0.9

26.6

1.25

28.3

2150

FTX4001RZ1MZ1-R 3G35/10

3x35/10

7/2.52

0.9

26.8

1.6

28.9

2210

FTX4001RZ1MZ1-R 3G35/16

3x35/16

7/2.52

0.9

26.8

1.6

29.5

2390

FTX4001RZ1MZ1-R 3G35/25

3x35/25

7/2.52

0.9

27.2

1.6

30.0

2505

FTX4001RZ1MZ1-R 3G50/16

3×50/16

19/1.78

0.9

28.5

1.6

29.0

2916

FTX4001RZ1MZ1-R 3G50/25

3x50/25

19/1.78

1.0

29.2

1.6

30.0

3107

FTX4001RZ1MZ1-R 3G50/35

3x50/35

19/1.78

1.0

30.0

1.6

31.0

3175

FTX4001RZ1MZ1-R 3G70/25

3×70/25

19/2.14

1.1

34.0

2.0

32.9

3203

FTX4001RZ1MZ1-R 3G70/35

3x70/35

19/2.14

1.1

34.5

2.0

34.5

4067

FTX4001RZ1MZ1-R 3G70/50

3x70/50

19/2.14

1.1

35

2.0

36.3

4310

FTX4001RZ1MZ1-R 3G95/25

3×95/25

19/2.52

1.1

36.7

2.0

38.0

5047

FTX4001RZ1MZ1-R 3G95/35

3×95/35

19/2.52

1.1

37.2

2.0

38.6

5115

FTX4001RZ1MZ1-R 3G95/50

3x95/50

19/2.52

1.1

37.6

2.0

39.2

5289

FTX4001RZ1MZ1-R 3G95/70

3x95/70

19/2.52

1.1

37.6

2.0

40.0

5360

FTX4001RZ1MZ1-R 3G120/35

3×120/35

37/2.03

1.2

39.4

2.5

41.2

6160

FTX4001RZ1MZ1-R 3G120/50

3×120/50

37/2.03

1.2

39.9

2.5

42.3

6473

FTX4001RZ1MZ1-R 3G120/70

3x120/70

37/2.03

1.2

40.3

2.5

44.6

6793

FTX4001RZ1MZ1-R 3G120/95

3×120/95

37/2.03

1.2

41.2

2.5

46.2

7120

FTX4001RZ1MZ1-R 3G150/50

3×150/50

37/2.25

1.4

45.2

2.5

57.0

7431

FTX4001RZ1MZ1-R 3G150/70

3×150/70

37/2.25

1.4

45.2

2.5

58.1

7565

FTX4001RZ1MZ1-R 3G150/95

3x150/95

37/2.25

1.4

45.5

2.5

59.4

8196

FTX4001RZ1MZ1-R 3G150/120

3x150/120

37/2.25

1.4

46.0

2.5

50.6

8590

FTX4001RZ1MZ1-R 3G185/70

3×185/70

37/2.52

1.6

50.4

2.5

51.6

8950

FTX4001RZ1MZ1-R 3G185/95

3xI85/95

37/2.52

1.6

50.6

2.5

53.2

9573

FTX4001RZ1MZ1-R 3G185/120

3x185/120

37/2.52

1.6

51.0

2.5

54.3

9968

FTX4001RZ1MZ1-R 3G185/150

3x185/150

37/2.52

1.6

51.6

2.5

55.3

1023

FTX4001RZ1MZ1-R 3G240/95

3×240/95

61/2.25

1.7

58.0

2.5

56.7

11620

FTX4001RZ1MZ1-R 3G240/120

3x240/120

61/2.25

1.7

59.0

2.5

58.3

12015

FTX4001RZ1MZ1-R 3G240/150

3x240/150

61/2.25

1.7

60.0

2.5

60.4

12373

FTX4001RZ1MZ1-R 3G240/185

3x240/185

61/2.25

1.7

60.0

2.5

62.1

1350

FTX4001RZ1MZ1-R 3G300/120

3x300/120

61/2.52

1.8

64.2

2.5

63.5

14197

FTX4001RZ1MZ1-R 3G300/150

3x300/150

61/2.52

1.8

65.7

2.5

64.9

14556

FTX4001RZ1MZ1-R 3G300/185

3x300/I85

61/2.52

1.8

67

2.5

66.2

15015

FTX4001RZ1MZ1-R 3G300/240

3x300/240

61/2.52

1.8

67

2.5

67.4

15697

4 CORES

FTX4001RZ1MZ1-R 4G1.5

4x1.5

7/0.53

0.7

10.0

0.9

13.3

390

FTX4001RZ1MZ1-R 4G2.5

4x2.5

7/0.67

0.7

10.8

0.9

15.0

470

FTX4001RZ1MZ1-R 4G4

4x4

7/0.85

0.7

12.1

0.9

16.4

580

FTX4001RZ1MZ1-R 4G6

4x6

7/1.04

0.7

13.5

1.25

18.7

705

FTX4001RZ1MZ1-R 4G10

4x10

7/1.35

0.7

15.7

1.25

21.1

1090

FTX4001RZ1MZ1-R 4G16

4x16

7/1.70

0.7

18.2

1.6

23.4

1320

FTX4001RZ1MZ1-R 4G25

4x25

7/2.14

0.9

22.4

1.6

28.9

1840

FTX4001RZ1MZ1-R 4G35

4x35(S)

7/2.52

0.9

24.4

1.6

31.9

2310

FTX4001RZ1MZ1-R 4G50

4x50(S)

19/1.78

1.0

28.0

1.6

32

2970

FTX4001RZ1MZ1-R 4G70

4x70(S)

19/2.14

1.1

32.2

2.0

37.7

4240

FTX4001RZ1MZ1-R 4G95

4x95(S)

19/2.52

1.1

36.0

2.0

41.7

5400

FTX4001RZ1MZ1-R 4G120

4x120(S)

37/2.03

1.2

38.0

2.5

47.1

7000

FTX4001RZ1MZ1-R 4G150

4x150(S)

37/2.25

1.4

42.8

2.5

51.4

8350

FTX4001RZ1MZ1-R 4G185

4x185(S)

37/2.52

1.6

48.4

2.5

56.6

10130

FTX4001RZ1MZ1-R 4G240

4x240(S)

61/2.25

1.7

55.0

2.5

63.0

12840

FTX4001RZ1MZ1-R 4G300

4x300(S)

61/2.52

1.8

59.6

2.5

68.8

15530

FTX4001RZ1MZ1-R 4G400

4x400(S)

61/2.85

2.0

66.1

3.15

78.1

19950

4CORES + 1EARTHCONDUCTOR

FTX4001RZ1MZ1-R 4G16/6

4xl6/6

7/1.35

0.7

17.9

1.25

25.1

1356

FTX4001RZ1MZ1-R 4G16/10

4x16/l0

7/1.70

0.7

20.6

1.25

26.0

1390

FTX4001RZ1MZ1-R 4G25/6

4x25/6

7/2.14

0.7

24.1

1.25

29.0

1900

FTX4001RZ1MZ1-R 4G25/10

4x25/10

7/2.14

0.9

24.9

1.25

29.4

1956

FTX4001RZ1MZ1-R 4G25/16

4x25/16

7/2.14

0.9

25.3

1.25

30.0

2012

FTX4001RZ1MZ1-R 4G35/10

4×35/10

7/2.52

0.9

25.4

1.25

32.1

2710

FTX4001RZ1MZ1-R 4G35/16

4×35/16

7/2.52

0.9

25.6

1.6

33.4

2940

FTX4001RZ1MZ1-R 4G35/25

4×35/25

7/2.52

0.9

26.2

1.6

34.0

3050

FTX4001RZ1MZ1-R 4G50/16

4×50/16

19/1.78

1.0

28.5

1.6

33

3560

FTX4001RZ1MZ1-R 4G50/25

4×50/25

19/1.78

1.0

29.2

1.6

35.6

3670

FTX4001RZ1MZ1-R 4G50/35

4x50/35

19/1.78

1.0

30.0

1.6

38.2

3759

FTX4001RZ1MZ1-R 4G70/25

4×70/25

19/2.14

1.1

34

2.0

38.6

4980

FTX4001RZ1MZ1-R 4G70/35

4x70/35

19/2.14

1.1

34.5

2.0

40.6

5036

FTX4001RZ1MZ1-R 4G70/50

4x70/50

19/2.14

1.1

35

2.0

42.9

5468

FTX4001RZ1MZ1-R 4G95/25

4×95/25

19/2.52

1.1

36.7

2.0

43.2

6215

FTX4001RZ1MZ1-R 4G95/35

4×95/35

19/2.52

1.1

37.2

2.0

46.3

6325

FTX4001RZ1MZ1-R 4G95/50

4×95/50

19/2.52

1.1

37.6

2.0

48.5

6455

FTX4001RZ1MZ1-R 4G95/70

4×95/50

19/2.52

1.1

38.0

2.0

50.7

6954

FTX4001RZ1MZ1-R 3G120/35

3×120/35

37/2.03

1.2

39.4

2.5

54.2

7968

FTX4001RZ1MZ1-R 4G120/50

4×120/50

37/2.03

1.2

39.9

2.5

55.3

8280

FTX4001RZ1MZ1-R 4G120/70

4x120/70

37/2.03

1.2

40.3

2.5

55.9

8511

FTX4001RZ1MZ1-R 4G120/95

4×120/95

37/2.03

1.2

41.2

2.5

56.4

8790

FTX4001RZ1MZ1-R 4G150/50

4×150/50

37/2.25

1.4

44.9

2.5

55.3

8723

FTX4001RZ1MZ1-R 4G150/70

4×150/70

37/2.25

1.4

45.2

2.5

56.48

8879

FTX4001RZ1MZ1-R 4G150/95

4x150/95

37/2.25

1.4

45.5

2.5

57.59

10179

FTX4001RZ1MZ1-R 4G150/120

4x150/120

37/2.25

1.4

46.0

2.5

58.65

10739

FTX4001RZ1MZ1-R 4G185/70

4×185/70

37/2.52

1.6

50.4

2.5

62.03

11200

FTX4001RZ1MZ1-R 4G185/95

4xI85/95

37/2.52

1.6

50.6

2.5

63.19

1263

FTX4001RZ1MZ1-R 4G185/120

4x185/120

37/2.52

1.6

51.0

2.5

64.23

13050

FTX4001RZ1MZ1-R 4G185/150

4x185/150

37/2.52

1.6

51.6

2.5

65.38

13680

FTX4001RZ1MZ1-R 4G240/95

4×240/95

61/2.25

1.7

58.0

2.5

71.53

14420

FTX4001RZ1MZ1-R 4G240/120

4x240/120

61/2.25

1.7

59.0

2.5

72.76

14763

FTX4001RZ1MZ1-R 4G240/150

4x240/150

61/2.25

1.7

60.0

2.5

73.10

15241

FTX4001RZ1MZ1-R 4G240/185

4x240/185

61/2.25

1.7

61.5

2.5

74.0

1682

FTX4001RZ1MZ1-R 4G300/120

4x300/150

61/2.52

1.8

64.2

2.5

75.08

18050

FTX4001RZ1MZ1-R 4G300/150

4x300/150

61/2.52

1.8

65.7

2.5

76.44

18662

FTX4001RZ1MZ1-R 4G300/185

4x300/I85

61/2.52

1.8

67

2.5

77.30

19031

FTX4001RZ1MZ1-R 4G300/240

4x300/240

61/2.52

1.8

67

2.5

78.55

19878

5 CORES

FTX4001RZ1MZ1-R 5G1.5

5x1.5

7/0.53

0.6

9.9

0.9

14.3

430

FTX4001RZ1MZ1-R 5G2.5

5x2.5

7/0.67

0.7

10.8

0.9

16.1

545

FTX4001RZ1MZ1-R 5G4

5x4

7/0.85

0.7

12.1

0.9

17.8

680

FTX4001RZ1MZ1-R 5G6

5x6

7/1.04

0.7

15.8

1.5

20

840

FTX4001RZ1MZ1-R 5G10

5x10

7/1.35

0.7

24

2.8

22.9

1105

FTX4001RZ1MZ1-R 5G16

5x16

7/1.70

0.7

27

2.8

26.6

1450

FTX4001RZ1MZ1-R 5G25

5x25

7/2.14

0.9

34

2.8

31.5

2245

FTX4001RZ1MZ1-R 5G35

5x35(S)

7/2.52

0.9

24.4

1.6

34.8

2840

FTX4001RZ1MZ1-R 5G50

5x50(S)

19/1.78

1.0

28.0

1.6

40.4

3895

FTX4001RZ1MZ1-R 5G70

5x70(S)

19/2.14

1.1

32.2

2.0

46.3

5145

FTX4001RZ1MZ1-R 5G95

5x95(S)

19/2.52

1.1

36.0

2.0

53.2

6941

FTX4001RZ1MZ1-R 5G120

5x120(S)

37/2.03

1.2

38.0

2.5

58.3

9154

FTX4001RZ1MZ1-R 5G150

5x150(S)

37/2.25

1.4

42.8

2.5

64.3

10372

FTX4001RZ1MZ1-R 5G185

5x185(S)

37/2.52

1.6

48.4

2.5

71.5

12828

FTX4001RZ1MZ1-R 5G240

5x240(S)

61/2.25

1.7

55.0

2.5

80

15980

FTX4001RZ1MZ1-R 5G300

5x300(S)

61/2.52

1.8

59.6

2.5

86.1

19521

FTX4001RZ1MZ1-R 5G400

5x400(S)

61/2.85

2.0

66.1

3.15

96.3

25116

Conducto
rcross- sectional area

Reference Method1
(clipped

direct)

Reference
Method11(ona perforated

horizontal cabletrayo
rReference Method 13[freeair])

Insingle-way
ducts

Laiddirect
in
ground

one2-corecable single phase

a.c.ord.c.

one

3-coreor4-corecable

3-phasea.c.

 one2-corecablesingle phasea.c.ord.c.

 one3-coreor4-corecable

3-phasea.c.

one2-corecable single phase

a.c.ord.c.

one

3-core or4-corecable

3-phasea.c.

one2-corecable single phase

a.c.ord.c.

one

3-coreor4-corecable

3-phasea.c.

1

2

3

4

5

6

7

8

9

mm2

A

A

A

A

A

A

A

A

1.5

27

23

29

25

-

23

-

28

2.5

36

31

39

33

-

30

-

36

4

49

42

52

44

-

40

-

48

6

62

53

66

56

-

50

-

60

10

85

73

90

78

-

65

-

80

16

110

94

115

99

115

94

140

115

25

146

124

152

131

145

125

180

150

35

180

154

188

162

175

150

215

180

50

219

187

228

197

210

175

255

215

70

279

238

291

251

260

215

315

265

95

338

289

354

304

310

260

380

315

120

392

335

410

353

355

300

430

360

150

451

386

472

406

400

335

480

405

185

515

441

539

463

455

380

540

460

240

607

520

636

546

520

440

630

530

300

698

599

732

628

590

495

700

590

400

787

673

847

728

660

560

790

670

Conductor
cross-sectional area

2-core
cabled.c.

2cables,
single-phase a.c.

3 or 4
cables, 3-phasea.c.

2cables, single- phasea.c.

3 or 4cables, 3-phasea.c.

Inducts oringround

Inductsor

inground

1

2

3

4

5

6

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31.0

31.0

27.0

31.0

25.0

2.5

19.0

19.0

16.0

19.0

15.0

4

12.0

12.0

10.0

12.0

9.7

6

7.9

7.9

6.8

7.9

6.5

10

4.7

4.7

4.0

4.7

3.9

16

2.9

2.9

2.5

2.9

2.6

r

x

z

r

x

z

25

1.850

1.350

0.160

1.900

1.600

0.140

1.650

1.900

1.600

35

1.350

1.350

0.155

1.350

1.150

0.135

1.150

1.350

1.200

50

0.980

0.990

0.155

1.000

0.860

0.135

0.870

1.000

0.870

70

0.670

0.670

0.150

0.690

0.590

0.130

0.600

0.690

0.610

95

0.490

0.500

0.150

0.520

0.430

0.130

0.450

0.520

0.450

120

0.390

0.400

0.145

0.420

0.340

0.130

0.370

0.420

0.360

150

0.310

0.320

0.145

0.350

0.280

0.125

0.300

0.350

0.300

185

0.250

0.260

0.145

0.290

0.220

0.125

0.260

0.290

0.250

240

0.195

0.200

0.140

0.240

0.175

0.125

0.210

0.240

0.210

300

0.155

0.160

0.140

0.210

0.140

0.120

0.185

0.210

0.190

400

0.120

0.130

0.140

0.190

0.115

0.120

0.165

0.190

0.180
