400Hz Single Core Grounding Cable
Applications
These cables are designed to be used for grounding the aircraft in hangars or on passenger bridges, connecting aircraft and mobile refueling systems and provide an equipotential bonding.
Standards
VDE 0295

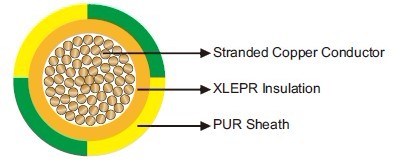

Construction
Conductor: Stranded copper conductor, Class
5 to VDE 0295/IEC 60228.
Insulation: XLEPR.
Outer Sheath: PUR.
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40℃~+90℃ |
Minimum Bending Radius |
static: 6×OD; dynamic: 9×OD |
Halogen Free |
Yes |
No Corrosive & Toxic Gases |
Yes |
Abrasion Resistant |
Yes |
Weather Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
1×16 |
10.7 |
216 |
