FLGG
Applications
These cables are used as airfield lighting cable for secondary electrical circuits.
Standards
IEC 60502-2

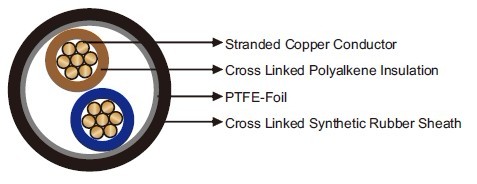

Construction
Conductor: Stranded tinned copper
conductor.
Insulation: Cross linked polyalkene.
Separator: PTFE-Foil.
Outer Sheath: Cross linked synthetic rubber compound
Technical Data
Rated Voltage Uo/U (Um) |
500V |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-20℃~+90℃ |
Minimum Bending Radius |
5×OD |
Halogen Free |
Yes |
No Toxicity & Corrosivity |
Yes |
Low Smoke |
Yes |
Flame Retardant |
Yes |
Dimensions and Weight
Construction |
Nominal Sheath Thickness |
Nominal Sheath Thickness |
Maximum Overall |
Nominal Weight |
No. ×mm² |
mm |
mm |
mm |
kg/km |
2×4 |
0.5 |
1.1 |
9.8 |
167 |
