600/1000V Mica+XLPE Insulated, LSZH Sheathed Power Cables (Multicore)
FFX400 1mRZ1-R (CU/MGT+XLPE/LSZH 600/1000V Class 2)

APPLICATION
This cable is designed for areas where the integrity of the electrical properties circuit is critical in
maintaining power supply. Applications can be found in emergency lightings, control and power
circuits, power stations, fire alarm systems, underground tunnels, communications systems,
sewage treatment plants, lifts, escalators, and high-rise buildings.
STANDARDS
Basic design to IEC 60502-1
FIRE PERFORMANCE



Circuit Integrity

IEC60331-21;BS6387 CWZ;DINVDE0472-814(FE180);CEI20-36/2-1;SS229-1;NBN C30-004(cat.F3);

NF C32-070-2.3(CR1); BS 7846-(F2)

SystemCircuitIntegrity

DIN4102-12, E30depending on lay system



FlameRetardance (SingleVerticalWireTest)

EN60332-1-2; IEC60332-1-2; BSEN60332-1-2;

VDE0482-332-1 ; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)

EN60332-3-24(cat.C); IEC60332-3-24;BSEN60332-3-24; VDE0482-332-3; NBN C30-004 (cat.F2);NF C32-070-

2.2(C1); CEI 20-22/3-4; EN50266-2-4*;DIN VDE 0482-266-

2-4



Halogen Free

IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*



NoCorrosive GasEmission

IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*

MinimumSmokeEmission

IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2*

NoToxic Gases

NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
600/1000V

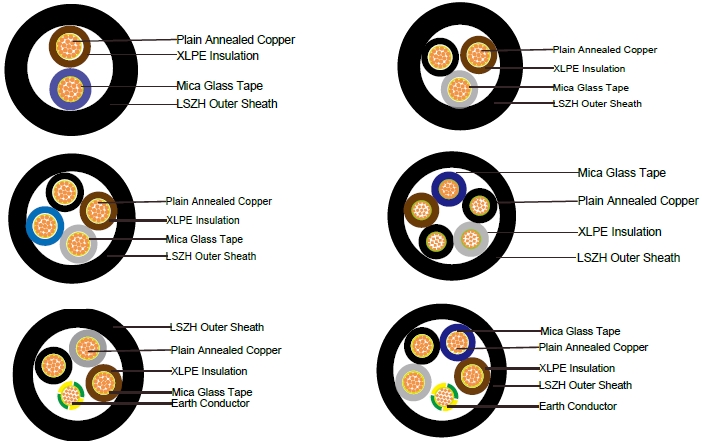

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Mica glass tape covered by extruded cross-linked XLPE compound
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
COLOUR CODE
Insulation Colour as per BS7671



WithEarth Conductor

WithoutEarth Conductor

2 Cores

-

Brown,Blue

3 Cores

Yellow/Green,Brown,Blue

Brown,Gray, Black

4 Cores

Yellow/Green,Brown,Gray, Black

Brown,Gray, Black,Blue

5 Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray, Black,Blue,Black

Above5 Cores

Yellow/Green,BlackNumbered

Black Numbered

Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 6 x OD
Electrical PROPERTIES

Dielectric Test: 3500 V r.m.s. x 5’ ( core / core )

Insulation Resistance

1000 MΩ x km ( at 20°C )

ShortCircuitTemperature

250°C( up to5secs)

CONSTRUCTION PARAMETERS







Cable
Code

Conductor





Nominal
Insulation Thickness





Nominal
Overall Diameter







Approx.
Weight

No.of
Core

×Cross Section/CPC
Cross
Section



No./Nominal
Diameter
of
Strands





Dia.
of
Conductor





No./mm

mm

mm

mm

kg/km

2 CORES

FFX400 1mRZ1-R2G1.5

2×1.5

7/0.53

1.59

0.7

12.2

150

FFX400 1mRZ1-R2G2.5

2×2.5

7/0.67

2.01

0.7

12.6

180

FFX400 1mRZ1-R2G4

2×4

7/0.85

2.55

0.7

14.7

250

FFX400 1mRZ1-R2G6

2×6

7/1.04

3.12

0.7

16.2

290

FFX400 1mRZ1-R2G10

2×10

7/1.35

4.05

0.7

17.1

450

FFX400 1mRZ1-R2G16

2×16

7/1.70

5.1

0.7

19.2

550

FFX400 1mRZ1-R2G25

2×25

7/2.14

6.42

0.9

20

680

FFX400 1mRZ1-R2G35

2×35

19/1.53

7.65

0.9

22

940

FFX400 1mRZ1-R2G50

2×50

19/1.78

8.9

1

24

1250

FFX400 1mRZ1-R2G70

2×70

19/2.14

10.7

1.1

27

1700

FFX400 1mRZ1-R2G95

2×95

19/2.52

12.6

1.1

31

2300

FFX400 1mRZ1-R2G120

2×120

37/2.03

14.21

1.2

36

3150

3 CORES

FFX400 1mRZ1-R3G1.5

3×1.5

7/0.53

1.59

0.7

12.3

170

FFX400 1mRZ1-R3G2.5

3×2.5

7/0.67

2.01

0.7

13.8

200

FFX400 1mRZ1-R3G4

3×4

7/0.85

2.55

0.7

15.2

300

FFX400 1mRZ1-R3G6

3×6

7/1.04

3.12

0.7

16.8

380

FFX400 1mRZ1-R3G10

3×10

7/1.35

4.05

0.7

18

550

FFX400 1mRZ1-R3G16

3×16

1/1.70

5.1

0.7

21

760

FFX400 1mRZ1-R3G25

3×25

7/2.14

6.42

0.9

22

960

FFX400 1mRZ1-R3G35

3×35

19/1.53

7.65

0.9

24

1300

FFX400 1mRZ1-R3G50

3×50

19/1.78

8.9

1

28

1700

FFX400 1mRZ1-R3G70

3×70

19/2.14

10.7

1.1

31

2400

FFX400 1mRZ1-R3G95

3×95

19/2.52

12.6

1.1

36

3250

FFX400 1mRZ1-R3G120

3×120

37/2.03

14.21

1.2

38

4000

FFX400 1mRZ1-R3G150

3×150

37/2.25

15.75

1.4

42

5000

FFX400 1mRZ1-R3G185

3×185

37/2.52

17.64

1.6

47

6100

FFX400 1mRZ1-R3G240

3×240

61/2.25

20.25

1.7

52

8000

FFX400 1mRZ1-R3G300

3×300

61/2.52

22.68

1.8

59

9850

FFX400 1mRZ1-R3G400

3×400

61/2.85

25.65

2

63

13000

3 CORES+ 1EARTHCONDUCTOR

FFX400 1mRZ1-R3G16/6

3×16/6

7/1.70

5.1

0.7

22.9

1230

FFX400 1mRZ1-R3G16/10

3×16/10

7/1.70

5.1

0.7

25.7

1385

FFX400 1mRZ1-R3G25/6

3×25/6

7/2.14

6.42

0.9

26.1

1810

FFX400 1mRZ1-R3G25/10

3×25/10

7/2.14

6.42

0.9

26.8

1890

FFX400 1mRZ1-R3G25/16

3×25/16

7/2.14

6.42

0.9

27.3

1980

FFX400 1mRZ1-R3G35/10

3×35/10

19/1.53

7.65

0.9

28.1

2010

FFX400 1mRZ1-R3G35/16

3×35/16

19/1.53

7.65

0.9

29.8

2070

FFX400 1mRZ1-R3G35/25

3×35/25

19/1.53

7.65

0.9

30.5

2190

FFX400 1mRZ1-R3G50/16

3×50/16

19/1.78

8.9

0.9

32.8

2400

FFX400 1mRZ1-R3G50/25

3×50/25

19/1.78

8.9

1

29

1800

FFX400 1mRZ1-R3G50/35

3×50/35

19/1.78

8.9

0.9

28.4

1870

FFX400 1mRZ1-R3G70/25

3×70/25

19/2.14

10.7

1

31

1920

FFX400 1mRZ1-R3G70/35

3×70/35

19/2.14

10.7

1.1

32

2200

FFX400 1mRZ1-R3G70/50

3×70/50

19/2.14

10.7

1.1

33

2400

FFX400 1mRZ1-R3G95/25

3×95/25

19/2.52

12.6

1.1

36

3300

FFX400 1mRZ1-R3G95/35

3×95/35

19/2.52

12.6

1.1

37

3560

FFX400 1mRZ1-R3G95/50

3×95/50

19/2.52

12.6

1.1

38

3700

FFX400 1mRZ1-R3G95/70

3×95/70

19/2.52

12.6

1.1

38.4

3809

FFX400 1mRZ1-R3G120/35

3×120/35

37/2.03

14.21

1.1

39

3910

FFX400 1mRZ1-R3G120/50

3×120/50

37/2.03

14.21

1.1

40

4200

FFX400 1mRZ1-R3G120/70

3×120/70

37/2.03

14.21

1.1

40

4250

FFX400 1mRZ1-R3G120/95

3×120/95

37/2.03

14.21

1.2

41

6990

FFX400 1mRZ1-R3G150/50

3×150/50

37/2.25

15.75

1.2

42

7200

FFX400 1mRZ1-R3G150/70

3×150/70

37/2.25

15.75

1.2

43

7600

FFX400 1mRZ1-R3G150/95

3×150/95

37/2.25

15.75

1.4

44

9000

FFX400 1mRZ1-R3G150/120

3×150/120

37/2.25

15.75

1.4

45

10600

FFX400 1mRZ1-R3G185/70

3×185/70

37/2.25

17.64

1.4

47

11100

FFX400 1mRZ1-R3G185/95

3×185/95

37/2.52

17.64

1.6

49

11650

FFX400 1mRZ1-R3G185/120

3×185/120

37/2.52

17.64

1.6

50

12000

FFX400 1mRZ1-R3G185/150

3×185/150

37/2.52

17.64

1.6

51

12300

FFX400 1mRZ1-R3G240/95

3×240/95

61/2.25

20.25

1.7

52

12900

FFX400 1mRZ1-R3G240/120

3×240/120

61/2.25

20.25

1.7

57

13500

FFX400 1mRZ1-R3G240/150

3×240/150

61/2.25

20.25

1.7

58

14000

FFX400 1mRZ1-R3G240/185

3×240/185

61/2.25

20.25

1.7

58.4

14700

FFX400 1mRZ1-R3G300/120

3×300/120

61/2.52

22.68

1.8

58.9

15100

FFX400 1mRZ1-R3G300/150

3×300/150

61/2.52

22.68

1.8

60

15600

FFX400 1mRZ1-R3G300/180

3×300/180

61/2.52

22.68

1.8

61

15720

FFX400 1mRZ1-R3G300/240

3×300/240

61/2.52

22.68

1.8

62

16000

4 CORES

FFX400 1mRZ1-R4G1.5

4×1.5

7/0.53

1.59

0.7

14.3

210

FFX400 1mRZ1-R4G2.5

4×2.5

7/0.67

2.01

0.7

15.2

270

FFX400 1mRZ1-R4G4

4×4

7/0.85

2.55

0.7

17.2

380

FFX400 1mRZ1-R4G6

4×6

7/1.04

3.12

0.7

19

440

FFX400 1mRZ1-R4G10

4×10

7/1.35

4.05

0.7

20.6

670

FFX400 1mRZ1-R4G16

4×16

1/1.70

5.1

0.7

23.6

820

FFX400 1mRZ1-R4G25

4×25

7/2.14

6.42

0.9

26

1320

FFX400 1mRZ1-R4G35

4×35

19/1.53

7.65

0.9

29

1730

FFX400 1mRZ1-R4G50

4×50

19/1.78

8.9

1

32

2300

FFX400 1mRZ1-R4G70

4×70

19/2.14

10.7

1.1

38

3180

FFX400 1mRZ1-R4G95

4×95

19/2.52

12.6

1.1

41.9

4370

FFX400 1mRZ1-R4G120

4×120

37/2.03

14.21

1.2

44

5400

FFX400 1mRZ1-R4G150

4×150

37/2.25

15.75

1.4

50.8

6500

FFX400 1mRZ1-R4G185

4×185

37/2.52

17.64

1.6

55

8200

FFX400 1mRZ1-R4G240

4×240

61/2.25

20.25

1.7

60.5

10600

FFX400 1mRZ1-R4G300

4×300

61/2.52

22.68

1.8

68.5

13200

FFX400 1mRZ1-R4G400

4×400

61/2.85

25.65

2

76

17000

4CORES + 1EARTHCONDUCTOR

FFX400 1mRZ1-R4G16/16

4×16/6

7/1.70

5.1

0.7

21

1300

FFX400 1mRZ1-R4G16/10

4×16/10

7/1.70

5.1

0.7

22

1600

FFX4001mRZ1-R 4G25/6

4×25/6

7/2.14

6.42

0.7

23

1820

FFX4001mRZ1-R 4G25/10

4×25/10

7/2.14

6.42

0.7

24

2015

FFX400 1mRZ1-R4G25/16

4×25/16

7/2.14

6.42

0.7

25

2450

FFX400 1mRZ1-R4G35/10

4×35/10

19/1.53

7.65

0.9

28.9

2810

FFX400 1mRZ1-R4G35/16

4×35/16

19/1.53

7.65

0.9

29.4

3000

FFX400 1mRZ1-R4G35/25

4×35/25

19/1.53

7.65

0.9

29.6

3170

FFX400 1mRZ1-R4G50/16

4×50/16

19/1.78

8.9

1

33

3800

FFX400 1mRZ1-R4G50/25

4×50/25

19/1.78

8.9

1

35.8

4100

FFX400 1mRZ1-R4G50/35

4×50/35

19/1.78

8.9

1

36.9

4400

FFX400 1mRZ1-R4G70/25

4×70/25

19/2.14

10.7

1.1

40

6270

FFX400 1mRZ1-R4G70/35

4×70/35

19/2.14

10.7

1.1

41

6900

FFX400 1mRZ1-R4G70/50

4×70/50

19/2.14

10.7

1.1

41.5

7200

FFX400 1mRZ1-R4G95/25

4×95/25

19/2.52

12.6

1.1

41.8

8000

FFX400 1mRZ1-R4G95/35

4×95/35

19/2.52

12.6

1.1

42.6

8100

FFX400 1mRZ1-R4G95/50

4×95/50

19/2.52

12.6

1.1

43.4

8250

FFX400 1mRZ1-R4G95/70

4×95/70

19/2.52

12.6

1.1

43.6

8310

FFX400 1mRZ1-R4G120/35

4×120/35

37/2.03

14.21

1.1

43.9

8390

FFX400 1mRZ1-R4G120/50

4×120/50

37/2.03

14.21

1.2

44

8600

FFX400 1mRZ1-R4G120/70

4×120/70

37/2.03

14.21

1.2

45

8800

FFX400 1mRZ1-R4G120/95

4×120/95

37/2.03

14.21

1.2

46

9100

FFX400 1mRZ1-R4G150/50

4×150/50

37/2.25

15.75

1.2

47

9400

FFX400 1mRZ1-R4G150/70

4×150/70

37/2.25

15.75

1.4

52

10800

FFX400 1mRZ1-R4G150/95

4×150/95

37/2.25

15.75

1.4

53

11100

FFX400 1mRZ1-R4G150/120

4×150/120

37/2.25

15.75

1.4

54

11500

FFX400 1mRZ1-R4G185/70

4×185/70

37/2.52

17.64

1.4

55

11900

FFX400 1mRZ1-R4G185/95

4×185/95

37/2.52

17.64

1.6

56

12900

FFX400 1mRZ1-R4G185/120

4×185/120

37/2.52

17.64

1.6

57

13600

FFX400 1mRZ1-R4G185/150

4×185/150

37/2.52

17.64

1.6

58

14700

FFX400 1mRZ1-R4G240/95

4×240/95

61/2.25

20.25

1.7

62

16000

FFX400 1mRZ1-R4G240/120

4×240/120

61/2.25

20.25

1.7

65

16600

FFX400 1mRZ1-R4G240/150

4×240/150

61/2.25

20.25

1.7

66

16900

FFX400 1mRZ1-R4G240/185

4×240/185

61/2.25

20.25

1.7

67

17100

FFX400 1mRZ1-R4G300/120

4×300/120

61/2.52

22.68

1.7

68

17200

FFX400 1mRZ1-R4G300/150

4×300/150

61/2.52

22.68

1.8

69

19700

FFX400 1mRZ1-R4G300/180

4×300/185

61/2.52

22.68

1.8

70

20700

FFX400 1mRZ1-R4G300/240

4×300/240

61/2.52

22.68

1.8

71

21060

5 CORES

FFX400 1mRZ1-R5G1.5

5×1.5

7/0.53

1.59

0.7

16.8

247

FFX400 1mRZ1-R5G2.5

5×2.5

7/0.67

2.01

0.7

17.9

317

FFX400 1mRZ1-R5G4

5×4

7/0.85

2.55

0.7

20.2

447

FFX400 1mRZ1-R5G6

5×6

7/1.04

3.12

0.7

22.3

517

FFX400 1mRZ1-R5G10

5×10

7/1.35

4.05

0.7

24.2

787

FFX400 1mRZ1-R5G16

5×16

1/1.70

5.1

0.7

27.7

964

FFX400 1mRZ1-R5G25

5×25

7/2.14

6.42

0.9

30.6

1551

FFX400 1mRZ1-R5G35

5×35

19/1.53

7.65

0.9

34.1

2033

FFX400 1mRZ1-R5G50

5×50

19/1.78

8.9

1

37.6

2703

FFX400 1mRZ1-R5G70

5×70

19/2.14

10.7

1.1

44.7

3737

FFX400 1mRZ1-R5G95

5×95

19/2.52

12.6

1.1

49.2

5135

FFX400 1mRZ1-R5G120

5×120

37/2.03

14.21

1.2

51.7

6345

FFX400 1mRZ1-R5G150

5×150

37/2.25

15.75

1.4

59.7

7638

FFX400 1mRZ1-R5G185

5×185

37/2.52

17.64

1.6

64.6

9635

FFX400 1mRZ1-R5G240

5×240

61/2.25

20.25

1.7

71.1

12455

FFX400 1mRZ1-R5G300

5×300

61/2.52

22.68

1.8

80.5

15510

FFX400 1mRZ1-R5G400

5×400

61/2.85

25.65

2

89.3

19975

ElectricAl PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)











Nominal
Cross
Section Area

Reference
Method4 (enclosed inan conduit
insulated
walletc)



Reference
Method3





Reference Method1
(clipped direct)



Reference
Method11

(enclosed in conduit on awallor ceiling, orin trunking)

(ona perforated cabletray),orReference Method13 (free air)





one3-corecable orone4-core cable3-phasea.c.





one2-corecablesingle phasea.c.ord.c.





one3-corecable orone4-core cable3-phasea.c.





one2-corecablesingle phasea.c.ord.c.





one3-corecable orone4-core cable3-phasea.c.

one2-core

one3-core

cable singlephase

cable orone

a.c.or

4-corecable

d.c.

3-phasea.c.

1

2

3

4

5

6

7

8

mm2

A

A

A

A

A

A

A

1.5

16.5

22

19.5

24

22

26

23

2.5

22

30

26

33

30

36

32

4

30

40

35

45

40

49

42

6

38

51

44

58

52

63

54

10

51

69

60

80

71

86

75

16

68

91

80

107

96

115

100

25

89

119

105

138

119

149

127

35

109

146

128

171

147

185

158

50

130

175

154

209

179

225

192

70

164

221

194

269

229

289

246

95

197

265

233

328

278

352

298

120

227

305

268

382

322

410

346

150

259

334

300

441

371

473

399

185

295

384

340

506

424

542

456

240

346

459

398

599

500

641

538

300

396

532

455

693

576

741

621

400

-

625

536

803

667

865

741

Voltage Drop (Per Amp Per Meter)

Nominal
Cross
Section
Area

2-core
cabled.c.



2-core
cable
single-phasea.c

3-coreor
4-core cable
3-phasea.c.

1

2

3

4

mm2

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

2.5

19

19

16

4

12

12

10

6

7.9

7.9

6.8

10

4.7

4.7

4

16

2.9

2.9

2.5





r

x

z

r

x

z

25

1.85

1.85

0.16

1.9

1.6

0.14

1.65

35

1.35

1.35

0.155

1.35

1.15

0.135

1.15

50

0.98

0.99

0.155

1

0.86

0.135

0.87

70

0.67

0.67

0.15

0.69

0.59

0.13

0.6

95

0.49

0.5

0.15

0.52

0.43

0.13

0.45

120

0.39

0.4

0.145

0.42

0.34

0.13

0.37

150

0.31

0.32

0.145

0.35

0.28

0.125

0.3

185

0.25

0.26

0.145

0.29

0.22

0.125

0.26

240

0.195

0.2

0.14

0.24

0.175

0.125

0.21

300

0.155

0.16

0.14

0.21

0.14

0.12

0.185

400

0.12

0.13

0.14

0.19

0.115

0.12

0.165
Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
