C 33-224 / C33-225



Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

C33-224
C33-225

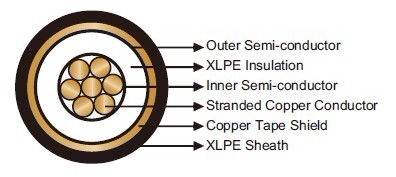

Construction

Conductor: Stranded bare or tinned copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE. EPDM can be offered upon request.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Copper tape shield. Copper wire shield can be offered upon request.
Sheath: XLPE. PVC/HFFR/CR can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um)	3.6/6 (7.2kV); 6/10 (12kV)
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-20℃~+70℃
Minimum Bending Radius	static: 10×OD; dynamic: 20×OD
Impacted Resistant	Yes
Weather Resistant	Yes

Dimensions and Weight

3.6/6 (7.2kV)

Construction	No. of Strand	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
No. ×mm²	-	mm	mm	mm	kg/km
1×6	7	2.7	1.4	12.5	198

6/10 (12kV)

Construction	No. of Strand	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
No. ×mm²	-	mm	mm	mm	kg/km
1×6	7	3.6	1.6	14.7	250
