Secondary Circuit Cable 450/750V to ADP Specification
Applications
These cables are used for connection between transformers and Airfield Lighting Equipment.
Standards
ADP (Aéroport de Paris) specification

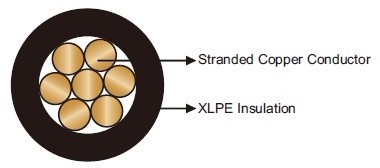

Construction
Conductor: Stranded bare copper.
Insulation: XLPE.
Technical Data
Rated Voltage Uo/U (Um) |
450/750V |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-20℃~+70℃ |
Minimum Bending Radius |
5×OD |
| Impacted Resistant | Yes |
Weather Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Insulation |
Minimum Overall |
Maximum Overall |
Nominal Weight |
No. ×mm² |
mm |
mm |
mm |
kg/km |
1×4 |
0.7 |
3.5 |
4.5 |
42 |
