   600/1000V LSZH Insulated, Non-sheathed Power Cables (Single Core)

FTX100 1Z1-R (CU/LSZH 600/1000V Single Core)

450/750V LSZH Insulated, Non-sheathed Power Cables (Single Core)

APPLICATION
The cables is mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design adapted to BS7211
FIRE PERFORMANCE



FlameRetardance (SingleVerticalWireTest)

EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2);

CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced FirePropagation(Vertically-mountedbundledwires

&cabletest)

EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4



Halogen Free

IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*



NoCorrosive GasEmission

IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*



MinimumSmokeEmission

IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2*

NoToxic Gases

NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
600/1000V

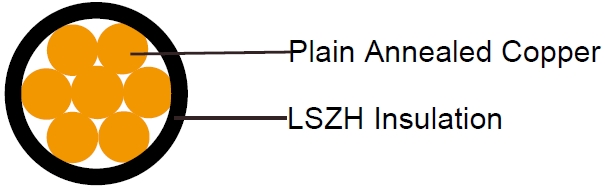

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: LSZH compound.
COLOUR CODE
Insulation Colour : Natural
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 6 x OD
Electrical PROPERTIES

DielectricTest:

3500 Vr.m.s.x 5’(core/core)

Insulation Resistance

500 MΩ x km ( at 20°C )

ShortcircuitTemperature

250°C ( up to5secs)

CONSTRUCTION PARAMETERS





Cable
Code

Conductor





No.of Core XCross Section

No./
Nominal
Diameterof
Strands

Nominal
Insulation Thickness

Nominal
Overall Diameter



Approx. Weight



Noxmm2

No./mm

mm

mm

kg/km

FTX100 1Z1-R1G1.5

1x1.5

7/0.53

0.7

3.3

28

FTX100 1Z1-R1G2.5

1x2.5

7/0.67

0.8

3.9

39

FTX100 1Z1-R1G4

1x4

7/0.85

0.8

4.8

58

FTX100 1Z1-R1G6

1x6

7/1.04

0.8

5.0

79

FTX100 1Z1-R1G10

1x10

7/1.35

1.0

6.6

130

FTX100 1Z1-R1G16

1x16

7/1.70

1.0

7.4

196

FTX100 1Z1-R1G25

1x25

7/2.14

1.2

9.1

299

FTX100 1Z1-R1G35

1x35

7/2.52

1.2

10.7

389

FTX100 1Z1-R1G50

1x50

19/1.78

1.4

12.6

523

FTX100 1Z1-R1G70

1x70

19/2.14

1.4

14.8

739

FTX100 1Z1-R1G95

1x95

19/2.52

1.6

17.2

1023

FTX100 1Z1-R1G120

1x120

37/2.03

1.6

18.9

1321

FTX100 1Z1-R1G150

1x150

37/2.25

1.8

20.4

1591

FTX100 1Z1-R1G185

1x185

37/2.52

2.0

22.3

1969

FTX100 1Z1-R1G240

1x240

61/2.25

2.2

26.5

2568

FTX100 1Z1-R1G300

1x300

61/2.52

2.4

28.9

3260

FTX100 1Z1-R1G400

1x400

61/2.85

2.6

33.4

4120

FTX100 1Z1-R1G500

1x500

61/3.20

2.8

35.6

5198

FTX100 1Z1-R1G630

1x630

127/2.52

2.8

39.4

6510

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)





Conductor
cross- sectional area



Reference
Method4
(enclosed

in conduitin
thermally

insulating
walletc)



Reference
Method3
(enclosed
inconduit ona wallorin

trunkingetc)







Reference Method1
(clipped direct)



Reference
Method11
(onaperforated cabletray,
horizontalorvertical)

Reference
Method 12
(freeair)



Horizontalflat spaced



Verticalflat spaced





Trefoil

 2
cables, single- phase
a.c.ord.c.

 3 or 4cables, 3-phasea.c.

 2
cables, single- phase
a.c.ord.c

 3 or 4cables, 3-phasea.c.

 2cables, single- phase
a.c.or
d.c. flat
and
touching

 3 or
cables, 3-phase
a.c. flat
andtouching or trefoil

 2cables, single- phase
a.c.or
d.c.orflat and touching

 3 or 4cables, 3-phase
a.c. flat
and
touching or trefoil

 2cables,
single- phase

a.c.ord.c.or 3c

ables
threephase

 2cables,
single- phase

a.c.ord.c.
or 3
cables three phase

3cables, trefoil
3-phasea.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

6

43

39

51

45

59

54

-

-

-

-

-

10

58

53

71

63

81

74

-

-

-

-

-

16

76

70

95

85

109

99

-

-

-

-

-

25

100

91

126

111

143

130

158

140

183

163

138

35

125

111

156

138

176

161

195

176

226

203

171

50

149

135

189

168

228

209

293

215

274

246

209

70

189

170

240

214

293

268

308

279

351

318

270

95

228

205

290

259

355

326

375

341

426

389

330

120

263

235

336

299

413

379

436

398

495

453

385

150

300

270

375

328

476

436

505

461

570

524

445

185

341

306

426

370

545

500

579

530

651

600

511

240

400

358

500

433

644

590

686

630

769

711

606

300

459

410

573

493

743

681

794

730

886

824

701

400

-

-

684

584

868

793

915

849

1065

994

820

500

-

-

783

666

990

904

1044

973

1228

1150

936

630

-

-

900

764

1130

1033

1191

1115

1423

1338

1069

Voltage Drop (Per Amp Per Meter)









Sizeof
conductor

 2
cables d.c.

2cables,single-phasea.c.

3or 4cables,3-phase a.c.

 Ref.Methods3
and 4(enclosed
inconduitetc, inoron a wall)

 Ref.Methods1
and11(clippeddirector ontraystouching)

 Ref.
Methods3
and 4(enclosed
inconduitetc,
inoron a wall)

 Ref.
Methods1,
11 and12 (intrefoil)

 Ref.
Methods1
and11
(Flat and touching)

1

2

3

4

5

6

7

mm2



mV/A/m



mV/A/m



mV/A/m



mV/A/m



mV/A/m



mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10

6

7.8

7.9

6.8

6.8

6.8

6.8

10

4.7

4.7

4.7

4

4

4

16

2.9

2.9

2.9

2.5

2.5

2.5





r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

25

1.85

1.85

0.31

1.90

1.85

0.190

1.85

1.60

0.27

1.65

1.600

0.165

1.600

1.600

0.190

1.600

35

1.35

1.35

0.29

1.35

1.35

0.180

1.35

1.15

0.25

1.15

1.150

0.155

1.50

1.150

0.180

1.150

50

0.99

1.00

0.29

1.05

0.99

0.180

1.00

0.87

0.25

0.90

0.860

0.155

0.870

0.860

0.180

0.870

70

0.68

0.70

0.28

0.75

0.68

0.175

0.71

0.60

0.24

0.65

0.590

0.150

0.610

0.590

0.175

0.620

95

0.49

0.51

0.27

0.58

0.49

0.170

0.52

0.44

0.23

0.50

0.430

0.145

0.450

0.430

0.170

0.460

120

0.39

0.41

0.26

0.48

0.39

0.165

0.43

0.35

0.23

0.42

0.340

0.140

0.370

0.340

0.165

0.380

150

0.32

0.33

0.26

0.43

0.32

0.165

0.36

0.29

0.23

0.37

0.280

0.140

0.310

0.280

0.165

0.320

185

0.25

0.27

0.26

0.37

0.26

0.165

0.30

0.23

0.23

0.32

0.220

0.140

0.260

0.220

0.165

0.280

240

0.19

0.21

0.26

0.33

0.20

0.160

0.25

0.185

0.22

0.29

0.170

0.140

0.220

0.170

0.165

0.240

300

0.155

0.175

0.25

0.31

0.16

0.160

0.22

0.150

0.22

0.27

0.140

0.140

0.195

0.135

0.160

0.210

400

0.12

0.140

0.25

0.29

0.13

0.155

0.20

0.125

0.22

0.25

0.110

0.135

0.175

0.110

0.160

0.195

500

0.093

0.120

0.25

0.28

0.105

0.155

0.185

0.100

0.22

0.24

0.090

0.135

0.160

0.088

0.160

0.180

630

0.072

0.100

0.25

0.27

0.086

0.155

0.175

0.088

0.21

0.23

0.074

0.135

0.150

0.071

0.160

0.170

Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
