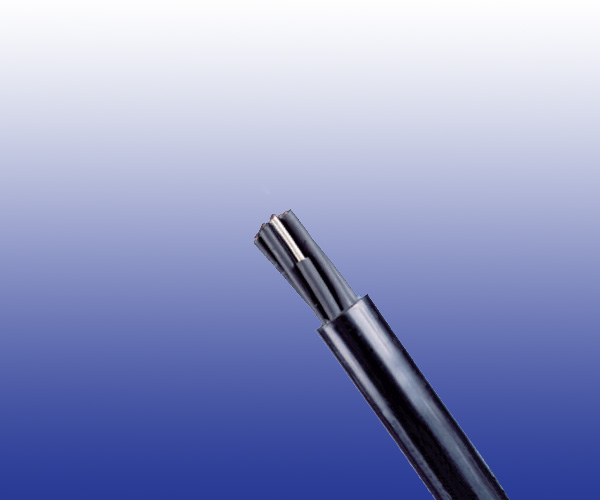

SCG Local Control Cables

Application

The cables are designed as local control or power supply cables for trackside and between the rails equipments inside the equipment shelter

Standard

  • SNCF CT 466

Cable Construction

SCG
  • Conductors: Class 1 tinned solid copper.
  • Insulation: Cross-linked black polyethylene (XLPE) insulation.
  • Sheath: PVC sheath, coloured black.

Electrical Characteristics at 20℃

No of Strands/ Strand Diameter No/mm 1.78 2.76
Nominal Cross Section Area mm² 2.5 6
Maximum Conductor Resistance (DC) Ω/km 7.56 3.11
Operating Voltage V 750

Mechanical and Thermal Properties

  • Minimum Bending Radius: 5×OD (static); 10×OD (dynamic)
  • Operating Temperature: -20℃ to +90℃

Dimensions and Weight

Cable Code Number of Cores Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
1.78mm Conductor, 4mm Insulated Wire
RS/SCG-075-2XY-2G2.5 2 3.0 14 227
RS/SCG-075-2XY-4G2.5 4 3.2 17 336
RS/SCG-075-2XY-6G2.5 6 3.7 19.5 475
RS/SCG-075-2XY-8G2.5 8 3.9 21 542
2.76mm Conductor, 5.4mm Insulated Wire
RS/SCG-075-2XY-2G6 2 3.6 18 384
RS/SCG-075-2XY-4G6 4 3.7 20.5 550
RS/SCG-075-2XY-6G6 6 3.9 23.5 780
RS/SCG-075-2XY-8G6 8 3.1 26 940
