Digicode 30KHz Indoor Signalling Cables

Application

The cables are designed for transmission of track circuit digicode signals up to 30 kHz in electrified lines.

Standard

  • EN 50266-2-4 & IEC 60332-3(Fire performance)
  • EN 50268-2(Smoke density)
  • EN 50267-2-1(Halogen content)
  • EN 50267-2-2(Gases acidity)
  • EN 50265-2-1, IEC 60332-1, NF C 32070 Cat C2 compliant (for PVC sheathed cables)

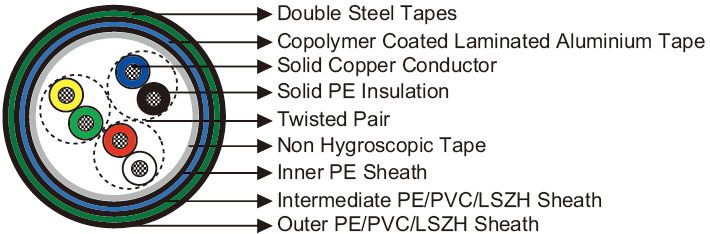

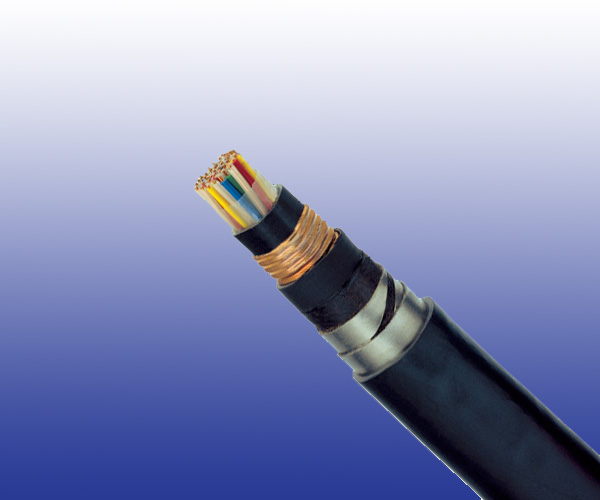

Cable Construction

Digicode
  • Conductors: Solid Annealed copper, 1.4 mm nominal diameter (0.6 mm for the auxiliary pair).
  • Insulation: Polyethylene.
  • Cabling Element: Two insulated conductors are twisted together to form a pair.
  • Stranding: Pairs are helically stranded to get the cable core.
  • Core Wrapping: Plastic tape(s) with overlapping.
  • Inner Sheath: Low density polyethylene.
  • Moisture Barrier: Copolymer coated laminated aluminium tape.
  • Intermediate Sheath: LSZH fi re retardant compound. PE or PVC option can be offered upon request.
  • Mechanical Protection: Two helically applied steel tapes.
  • Outer Sheath: LSZH fi re retardant compound. PE or PVC option can be offered upon request.

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 1.4
Maximum DC Conductor Resistance Ω/km 12.1
Maximum Resistance Unbalance % 3
Minimum Insulation Resistance @500 V DC (1min) MΩ.km 5000
Dielectric Strength (DC voltage 1 min)
Conductor to Conductor V 1000
Conductor to Screen V 3000
Minimum Spark Test On Outer Sheath (AC voltage) V 5000
Maximum Mutual Capacitance (Data pairs) nF/km 45
Nominal Mutual Capacitance (Auxiliary pair) nF/km 50
Maximum Capacitance Unbalance
Pair to Pair nF/500m 400
Pair to Ground nF/500m 1500
Maximum Characteristic Pair Attenuation
@2.1KHz dB/km 0.64
@4.1KHz dB/km 0.76
@9.5KHz dB/km 1.05
@20.7KHz dB/km 1.28
Minimum Near End Crosstalk Attenuation (NEXT)
@4.1KHz dB/km 54
@20.7KHz dB/km 42
Minimum Far End Crosstalk Attenuation (FEXT)
@4.1KHz dB/km 59
@20.7KHz dB/km 48
Minimum Unbalance Attenuation dB 40
Maximum Rated Voltage, between pair conductors V rms 220
Maximum Rated Current A rms 1

Mechanical and Thermal Properties

  • Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
  • Temperature Range: -40℃ to +60℃ (during operation); -20℃ to +50℃ (during installation)

Dimensions and Weight

Cable Code Number of
Pairs		 Nominal Sheath Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal
Weight
kg/km
Inner Interm. Outer
RS/DIG-2Y2Y(L)HBH-1P1.4 1* 0.7 1.3 1.5 17.9 428
RS/DIG-2Y2Y(L)HBH-2P1.4 2* 0.7 1.3 1.5 19.2 497
RS/DIG-2Y2Y(L)HBH-3P1.4 3 0.7 1.3 1.5 20.2 562
