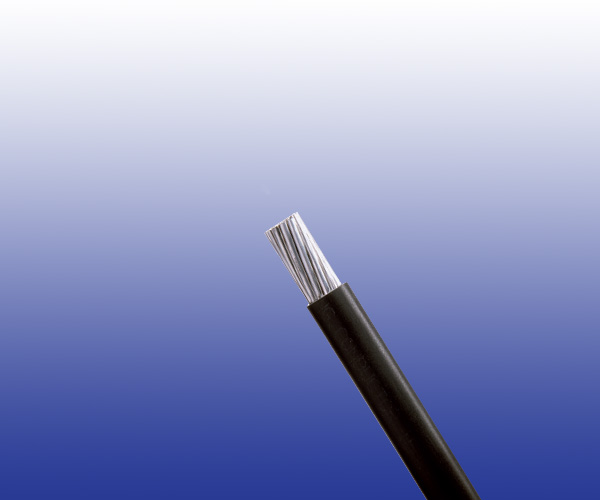

NSGAFOU Cables

Application

The cables are designed for use in switch cabinets, wiring of devices, trains and buses as well as in dry rooms.

Standard

  • DIN VDE 0250-602

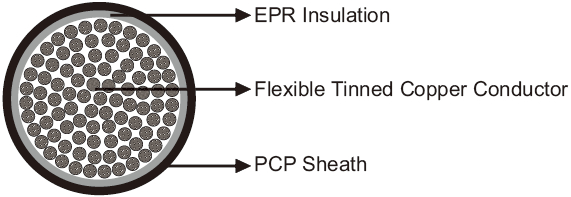

Cable Construction

NSGAFOU
  • Conductors: Flexible tinned copper to IEC 60228 class 5.
  • Insulation: EPR type 3G13.
  • Outer sheath: PCP type 5GM3.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35
Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565
Current Rating A 31 41 58 75 103 145 194 240
Voltage Rating KV 1.8/3
Nominal Conductor Cross Section mm² 50 70 95 120 150 185 240
Conductor Resistance Ω/km 0.393 0.277 0.21 0.164 0.132 0.109 0.0817
Current Rating A 301 372 456 528 607 639 821
Voltage Rating KV 1.8/3

Mechanical and Thermal Properties

  • Minimum Bending Radius: 4×OD
  • Temperature Range: -25℃ to +80℃ (during operation); -10℃ to +60℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 No. & Nominal
Diameter of
Strands
No/mm		 Nominal
Insulation
Thickness
mm		 Nominal
Overall
Diameter
mm		 Nominal
Weight
kg/km
RF602-NSGAFOU-1G1.5 1×1.5 30/0.25 1.3 6.5 59
RF602-NSGAFOU-1G2.5 1×2.5 50/0.25 1.3 6.8 74
RF602-NSGAFOU-1G4 1×4.0 56/0.3 1.3 7.7 94
RF602-NSGAFOU-1G6 1×6.0 84/0.3 1.3 8.3 118
RF602-NSGAFOU-1G10 1×10.0 80/0.4 1.5 9.2 163
RF602-NSGAFOU-1G16 1×16.0 126/0.4 1.5 10.1 220
RF602-NSGAFOU-1G25 1×25.0 196/0.40 1.8 12.5 336
RF602-NSGAFOU-1G35 1×35.0 276/0.40 1.8 14.0 470
RF602-NSGAFOU-1G50 1×50.0 396/0.40 1.8 15.5 581
RF602-NSGAFOU-1G70 1×70.0 360/0.50 1.8 17.0 772
RF602-NSGAFOU-1G95 1×95.0 475/0.50 2.2 19.5 1030
RF602-NSGAFOU-1G120 1×120.0 608/0.50 2.2 21.2 1280
RF602-NSGAFOU-1G150 1×150.0 756/0.50 2.2 23.5 1650
RF602-NSGAFOU-1G185 1×185.0 925/0.50 2.4 25.6 2050
RF602-NSGAFOU-1G240 1×240.0 1221/0.50 2.6 27.3 2590
