300/500V Limited Fire Hazard Track Circuit Feeder Cables to SE895

Application

The cables are designed for making connection across the track at the ballast level to the running rails for the signalling track circuits. They are characterized by being high resistant to mechanical damage, fi re and contaminants such as oil and water.

Standard

  • SE895
  • UNE 21027

Cable Construction

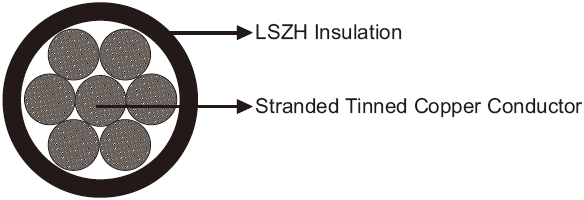

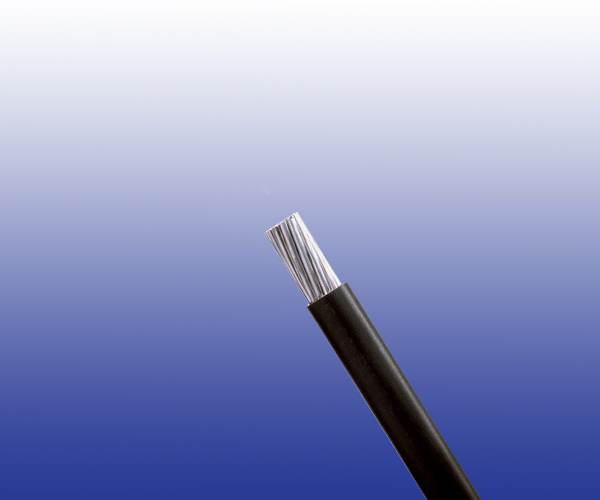

300-500V-Fire-to-SE895
Conductors Stranded tinned copper conductors to IEC 60228 class 2 or 5.
Insulation LSZH Insulation

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 4.0
Maximum DC Conductor Resistance Ω/km 4.7
Voltage Rating KV 0.3/0.5

Mechanical and Thermal Properties

  • Minimum Bending Radius: 7.5×OD
  • Temperature Range: -25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 No. & Nominal
Diameter of
Strands
No/mm		 Nominal
Insulation
Thickness
mm		 Nominal
Overall
Diameter
mm		 Nominal
Weight
kg/km
RF895-ES05Z-U-300/500V-1G4 1×4.0 7/0.85 0.8 6.8 85

U is changed to K if the stranding class is changed from class 2 to class 5
