GKW-RW 300/500V Thin Wall Single Core

Application

Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standard

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

Cable Construction

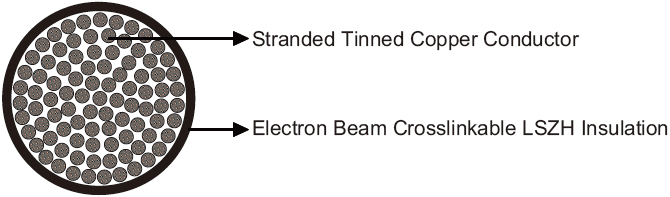

GKW-RW-Single-Core
Conductor Circular Class 5 stranded tinned copper to IEC60228/VDE 0295
Insulation Electron beam crosslinkable LSZH compound

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 0.5 0.75 1 1.5 2.5
Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21
Voltage Rating KV 0.3/0.5

Mechanical and Thermal Properties

  • Minimum Bending Radius: 4xOD (Static); 6xOD (Flexing)
  • Temperature Range: -40℃ ~+120℃ (Static); -35℃ ~+90℃ (Flexing)
  • Short Circuit Temperature: +280℃

Dimensions and Weight

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 Number and Nominal Diameter of Strands
No./mm		 Nominal Insulation Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
1×0.5 16/0.20 0.18 1.3 6
1×0.75 24/0.20 0.18 1.56 9
1×1.0 32/0.20 0.18 1.7 12
1×1.5 30/0.25 0.22 2.04 17
1×2.5 50/0.25 0.28 2.66 27
