GKW-RW/S EMC 300/500V Thin Wall Screened Multicore

Application

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standard

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

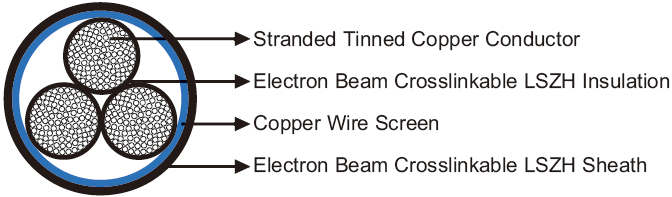

Cable Construction

GKW-RW-EMC-Thin-MultiCore
Conductor Circular Class 5 stranded tinned copper to IEC60228/VDE 0295
Insulation Electron beam crosslinkable LSZH compound
Screen Copper wire screen
Sheath Electron beam crosslinkable LSZH compound

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 0.5 0.75 1 1.5 2.5
Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21
Voltage Rating KV 0.3/0.5

Mechanical and Thermal Properties

  • Minimum Bending Radius: 4xOD (Static); 6xOD (Flexing)
  • Temperature Range: -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
  • Short Circuit Temperature: +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area
No.×mm²		 Number and Nominal Diameter of Strands No/mm Nominal Insulation Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
2×0.5 16/0.20 0.18 4.8 31
3×0.5 16/0.20 0.18 5.0 43
4×0.5 16/0.20 0.18 5.4 50
5×0.5 16/0.20 0.18 6.1 58
6×0.5 16/0.20 0.18 6.5 77
7×0.5 16/0.20 0.18 7.0 81
8×0.5 16/0.20 0.18 7.4 91
9×0.5 16/0.20 0.18 7.7 93
10×0.5 16/0.20 0.18 7.7 97
12×0.5 16/0.20 0.18 8.1 113
14×0.5 16/0.20 0.18 8.5 126
16×0.5 16/0.20 0.18 8.7 140
18×0.5 16/0.20 0.18 9.4 156
22×0.5 16/0.20 0.18 10.3 192
24×0.5 16/0.20 0.18 10.6 198
27×0.5 16/0.20 0.18 11.1 238
36×0.5 16/0.20 0.18 12.3 282
48×0.5 16/0.20 0.18 13.9 362
2×2×0.5 16/0.20 0.18 7.1 89
3×2×0.5 16/0.20 0.18 7.5 103
4×2×0.5 16/0.20 0.18 8.2 130
2×0.75 24/0.20 0.18 5.3 46
3×0.75 24/0.20 0.18 5.6 55
4×0.75 24/0.20 0.18 6.2 63
5×0.75 24/0.20 0.18 6.7 77
6×0.75 24/0.20 0.18 7.4 90
7×0.75 24/0.20 0.18 7.7 103
8×0.75 24/0.20 0.18 8.3 120
9×0.75 24/0.20 0.18 8.7 122
10×0.75 24/0.20 0.18 8.7 129
12×0.75 24/0.20 0.18 9.3 149
14×0.75 24/0.20 0.18 9.6 168
16×0.75 24/0.20 0.18 9.8 187
18×0.75 24/0.20 0.18 10.7 213
22×0.75 24/0.20 0.18 11.7 259
24×0.75 24/0.20 0.18 12.1 269
27×0.75 24/0.20 0.18 12.6 297
36×0.75 24/0.20 0.18 14.1 387
2×2×0.75 24/0.20 0.18 8.0 100
6×2×0.75 24/0.20 0.18 11.6 202
2×1.0 32/0.20 0.18 5.9 63
3×1.0 32/0.20 0.18 6.2 75
4×1.0 32/0.20 0.18 6.8 89
5×1.0 32/0.20 0.18 7.3 108
6×1.0 32/0.20 0.18 7.9 114
7×1.0 32/0.20 0.18 8.5 129
8×1.0 32/0.20 0.18 9.0 146
9×1.0 32/0.20 0.18 9.5 152
10×1.0 32/0.20 0.18 9.5 161
12×1.0 32/0.20 0.18 10.0 209
24×1.0 32/0.20 0.18 13.3 342
27×1.0 32/0.20 0.18 13.8 378
36×1.0 32/0.20 0.18 15.7 515
2×2×1.0 32/0.20 0.18 8.9 116
2×1.5 30/0.25 0.22 6.7 80
3×1.5 30/0.25 0.22 7.1 98
4×1.5 30/0.25 0.22 7.6 118
5×1.5 30/0.25 0.22 8.3 127
6×1.5 30/0.25 0.22 9.1 151
7×1.5 30/0.25 0.22 9.7 175
8×1.5 30/0.25 0.22 10.4 201
9×1.5 30/0.25 0.22 11.1 211
10×1.5 30/0.25 0.22 11.1 225
12×1.5 30/0.25 0.22 11.7 285
24×1.5 30/0.25 0.22 15.9 499
27×1.5 30/0.25 0.22 16.5 552
36×1.5 30/0.25 0.22 18.5 720
2×2.5 50/0.25 0.28 7.7 98
3×2.5 50/0.25 0.28 8.1 120
4×2.5 50/0.25 0.28 8.9 150
5×2.5 50/0.25 0.28 9.7 185
6×1.5 50/0.25 0.28 10.5 220
7×2.5 50/0.25 0.28 11.4 261
8×2.5 50/0.25 0.28 12.3 299
9×2.5 50/0.25 0.28 13.1 309
10×2.5 50/0.25 0.28 13.1 331
12×2.5 50/0.25 0.28 13.7 386
24×2.5 50/0.25 0.28 18.9 755
27×2.5 50/0.25 0.28 19.5 837
36×2.5 50/0.25 0.28 21.9 1100
