3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore

Application

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standard

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

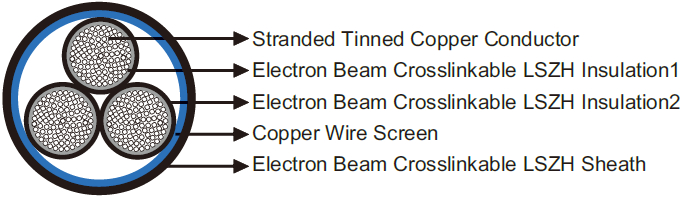

Cable Construction

3GKW-DW-EMC-multi-screen
Conductor Circular Class 5 stranded tinned copper to IEC60228/VDE 0295
Insulation1 Electron beam crosslinkable LSZH compound
Insulation2 Electron beam crosslinkable LSZH compound
Screen Copper wire screen
Sheath Electron beam crosslinkable LSZH compound

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 0.25 0.5 0.75 1 1.5 2.5
Maximum Conductor Resistance Ω/km 88.5 40.1 26.7 20.0 13.7 8.21
Voltage Rating KV 0.6/1

Mechanical and Thermal Properties

  • Minimum Bending Radius: 4xOD (Static); 8xOD (Flexing)
  • Temperature Range: -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
  • Short Circuit Temperature: +280℃

Dimensions and Weight


No. of cores& Nominal Conductor Cross Sectional Area
No.×mm²		 Number and Nominal Diameter of Strands
No/mm		 Nominal Insulation Thickness mm Nominal Overall Diameter mm Nominal kg/km
2×2×0.25 19/0.13 0.2 5.7 48
3×2×0.25 19/0.13 0.2 6.1 57
4×2×0.25 19/0.13 0.2 7.0 72
7×2×0.25 19/0.13 0.2 7.8 92
25×0.25 19/0.13 0.2 8.9 139
2×0.5 19/0.18 16/0.20 0.2 4.3 34
3×0.5 19/0.18 16/0.20 0.2 4.5 40
4×0.5 19/0.18 16/0.20 0.2 4.8 47
5×0.5 19/0.18 16/0.20 0.2 5.4 58
6×0.5 19/0.18 16/0.20 0.2 5.9 70
7×0.5 19/0.18 16/0.20 0.2 6.3 80
8×0.5 19/0.18 16/0.20 0.2 6.8 86
9×0.5 19/0.18 16/0.20 0.2 7.2 95
10×0.5 19/0.18 16/0.20 0.2 7.2 101
12×0.5 19/0.18 16/0.20 0.2 7.4 110
15×0.5 19/0.18 16/0.20 0.2 8.5 135
16×0.5 19/0.18 16/0.20 0.2 8.5 142
18×0.5 19/0.18 16/0.20 0.2 8.9 162
20×0.5 19/0.18 16/0.20 0.2 9.3 183
22×0.5 19/0.18 16/0.20 0.2 9.9 195
25×0.5 19/0.18 16/0.20 0.2 10.3 213
27×0.5 19/0.18 16/0.20 0.2 10.5 231
30×0.5 19/0.18 16/0.20 0.2 11.3 265
36×0.5 19/0.18 16/0.20 0.2 12.1 301
42×0.5 19/0.18 16/0.20 0.2 12.9 359
48×0.5 19/0.18 16/0.20 0.2 13.6 410
50×0.5 19/0.18 16/0.20 0.2 14.2 430
2×2×0.5 19/0.18 16/0.20 0.2 6.4 69
3×2×0.5 19/0.18 16/0.20 0.2 6.7 80
4×2×0.5 19/0.18 16/0.20 0.2 7.4 95
5×2×0.5 19/0.18 16/0.20 0.2 9.2 136
6×2×0.5 19/0.18 16/0.20 0.2 9.2 148
8×2×0.5 19/0.18 16/0.20 0.2 9.7 155
10×2×0.5 19/0.18 16/0.20 0.2 10.9 200
12×2×0.5 19/0.18 16/0.20 0.2 12.1 239
15×2×0.5 19/0.18 16/0.20 0.2 13.0 300
16×2×0.5 19/0.18 16/0.20 0.2 13.0 320
20×2×0.5 19/0.18 16/0.20 0.2 14.4 360
2×3×0.5 19/0.18 16/0.20 0.2 7.3 90
2×0.75 19/0.22 24/0.20 0.2 4.8 40
3×0.75 19/0.22 24/0.20 0.2 5.0 50
4×0.75 19/0.22 24/0.20 0.2 5.5 62
5×0.75 19/0.22 24/0.20 0.2 6.1 75
6×0.75 19/0.22 24/0.20 0.2 6.6 85
7×0.75 19/0.22 24/0.20 0.2 7.2 100
8×0.75 19/0.22 24/0.20 0.2 7.7 113
10×0.75 19/0.22 24/0.20 0.2 8.1 130
12×0.75 19/0.22 24/0.20 0.2 8.4 150
14×0.75 19/0.22 24/0.20 0.2 9.1 169
16×0.75 19/0.22 24/0.20 0.2 9.7 206
18×0.75 19/0.22 24/0.20 0.2 10.1 230
20×0.75 19/0.22 24/0.20 0.2 11.1 256
24×0.75 19/0.22 24/0.20 0.2 12.0 294
25×0.75 19/0.22 24/0.20 0.2 12.3 300
2×2×0.75 19/0.22 24/0.20 0.2 7.1 85
3×2×0.75 19/0.22 24/0.20 0.2 7.6 109
4×2×0.75 19/0.22 24/0.20 0.2 9.9 143
5×2×0.75 19/0.22 24/0.20 0.2 10.7 182
6×2×0.75 19/0.22 24/0.20 0.2 11.9 226
7×2×0.75 19/0.22 24/0.20 0.2 13.2 279
8×2×0.75 19/0.22 24/0.20 0.2 13.4 291
10×2×0.75 19/0.22 24/0.20 0.2 14.8 333
3×3×0.75 19/0.22 24/0.20 0.2 8.9 151
5×4×0.75 19/0.22 24/0.20 0.2 12.8 288
2×1.0 19/0.25 32/0.20 0.2 5.0 50
3×1.0 19/0.25 32/0.20 0.2 5.5 60
4×1.0 19/0.25 32/0.20 0.2 5.8 72
5×1.0 19/0.25 32/0.20 0.2 6.6 88
6×1.0 19/0.25 32/0.20 0.2 7.3 114
7×1.0 19/0.25 32/0.20 0.2 7.9 133
8×1.0 19/0.25 32/0.20 0.2 8.5 150
9×1.0 19/0.25 32/0.20 0.2 8.9 160
10×1.0 19/0.25 32/0.20 0.2 8.9 168
12×1.0 19/0.25 32/0.20 0.2 9.2 188
16×1.0 19/0.25 32/0.20 0.2 10.5 250
18×1.0 19/0.25 32/0.20 0.2 11.2 275
25×1.0 19/0.25 32/0.20 0.2 12.7 355
27×1.0 19/0.25 32/0.20 0.2 13.3 395
30×1.0 19/0.25 32/0.20 0.2 13.8 450
36×1.0 19/0.25 32/0.20 0.2 15.1 530
42×1.0 19/0.25 32/0.20 0.2 16.3 604
50×1.0 19/0.25 32/0.20 0.2 17.8 690
2×2×1.0 19/0.25 32/0.20 0.2 7.8 107
4×2×1.0 19/0.25 32/0.20 0.2 9.4 128
6×2×1.0 19/0.25 32/0.20 0.2 11.6 239
12×2×1.0 19/0.25 32/0.20 0.2 14.3 400
4×3×1.0 19/0.25 32/0.20 0.2 11.5 230
3×4×1.0 19/0.25 32/0.20 0.2 11.3 245
4×4×1.0 19/0.25 32/0.20 0.2 12.5 265
2×1.5 37/0.22 30/0.25 0.3 5.8 70
3×1.5 37/0.22 30/0.25 0.3 6.1 81
4×1.5 37/0.22 30/0.25 0.3 6.7 100
5×1.5 37/0.22 30/0.25 0.3 7.7 134
6×1.5 37/0.22 30/0.25 0.3 8.3 153
7×1.5 37/0.22 30/0.25 0.3 9.1 184
8×1.5 37/0.22 30/0.25 0.3 10.3 222
9×1.5 37/0.22 30/0.25 0.3 10.5 234
10×1.5 37/0.22 30/0.25 0.3 10.5 240
12×1.5 37/0.22 30/0.25 0.3 10.9 268
16×1.5 37/0.22 30/0.25 0.3 12.5 364
18×1.5 37/0.22 30/0.25 0.3 13.2 405
25×1.5 37/0.22 30/0.25 0.3 15.8 562
48×1.5 37/0.22 30/0.25 0.3 20.7 988
2×2×1.5 37/0.22 30/0.25 0.3 9.2 153
3×2×1.5 37/0.22 30/0.25 0.3 9.8 205
7×2×1.5 37/0.22 30/0.25 0.3 12.6 330
2×2.5 37/0.29 50/0.25 0.3 7.0 105
3×2.5 37/0.29 50/0.25 0.3 7.6 130
4×2.5 37/0.29 50/0.25 0.3 8.4 170
5×2.5 37/0.29 50/0.25 0.3 9.4 190
6×2.5 37/0.29 50/0.25 0.3 10.3 225
7×2.5 37/0.29 50/0.25 0.3 11.4 270
8×2.5 37/0.29 50/0.25 0.3 12.6 343
10×2.5 37/0.29 50/0.25 0.3 13.2 370
12×2.5 37/0.29 50/0.25 0.3 13.6 420
16×2.5 37/0.29 50/0.25 0.3 15.6 560
18×2.5 37/0.29 50/0.25 0.3 16.6 620
25×2.5 37/0.29 50/0.25 0.3 19.3 834
27×2.5 37/0.29 50/0.25 0.3 20.5 870
48×2.5 37/0.29 50/0.25 0.3 25.6 1560
