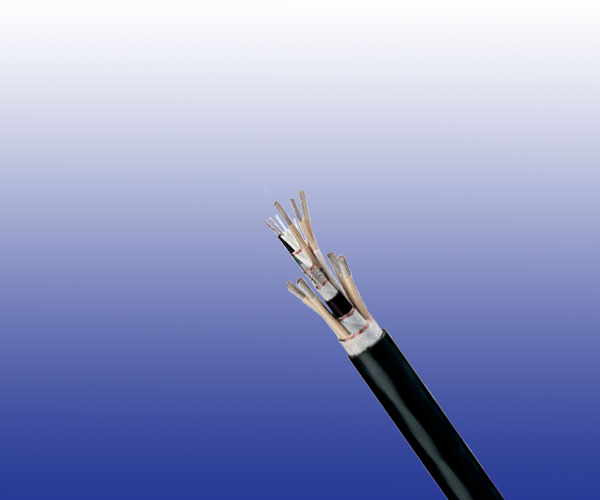

Integrated 9/11/18/20 Cores 0.75mm² UIC Databus Cables

Application

The cables are used as connecting cables to transmit digital signals inside railway rolling stocks.

Standard

  • DIN 5510-1

Cable Construction

UIC

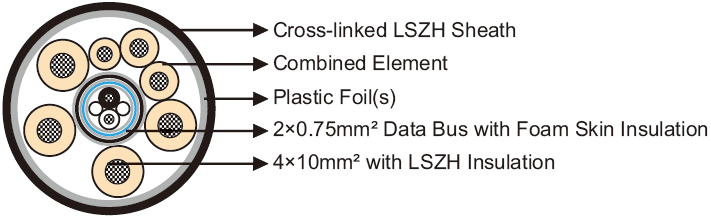

For 9 cores UIC databus cables:

  • 4 cores: 10 mm² stranded tinned copper conductor with LSZH insulation.
  • Combined Element: 3 cores (with Cu-strand 2×6mm², 1×2.5mm²) are twisted with a fi lling element to a combined element. Wrapping: Overlapped plasticfoil(s). Elements sheaths: TPE
  • UIC Data Bus 0.75mm²: Two foam skin insulated tinned copper stranded conductors are twisted together with two fi lling elements to a pair.
  • Wrapping: Overlapped plastic-foil(s).
  • Screen: Tinned copper wire braid screen
  • Element sheaths: TPE.
  • Wrapping: Overlapped plastic-foil(s).
  • Stranding: 4 strands are twisted to a core together with 3 cored element, the UIC data bus and two fi llers
  • Core Wrapping: Overlapped plastic-foil(s).
  • Outer Sheath: Cross-linked oil resistant LSZH compound.

For 11 cores UIC databus cables:

  • 4 cores: 10 mm² stranded tinned copper conductor with LSZH insulation.
  • Combined Element: 5 cores (with Cu-strand 2×6mm², 1×2.5mm² and 2×1.0 mm²) are twisted with a fi lling element to form a combined element.
  • Wrapping: Overlapped plastic-foil(s).
  • Elements sheaths: TPE.
  • UIC Data Bus 0.75mm²: Two foam skin insulated tinned copper r stranded conductors are twisted together with two fi lling elements to a pair.
  • Wrapping: Overlapped plastic-foil(s).
  • Screen: Tinned copper wire braid screen.
  • Element sheaths: TPE.
  • Wrapping: Overlapped plastic-foil(s).
  • Stranding: 4 strands are twisted to a core together with 5 cored element, the UIC data bus and two fi llers.
  • Core Wrapping: Overlapped plastic-foil(s).
  • Outer Sheath: Cross-linked oil resistant LSZH compound.

For 18/20 cores UIC databus cables:

  • Star Quad: Four LSZH insulated 1mm² stranded tinned copper conductors are twisted to form a star quad.
  • UIC Data Bus 0.75mm²: Two foam skin insulated tinned copper stranded conductors are twisted together with two fi lling elements to form a pair.
  • Wrapping: Overlapped plastic-foil(s)
  • Screen: Tinned copper wire braid screen
  • Element sheaths: TPE.
  • Wrapping: Overlapped plastic-foil(s)
  • Stranding: 4 star quads are stranded together with 2 or 4 UIC data bus cable and several fi llers.
  • Core Wrapping: Overlapped plastic-foil(s).
  • Screen: Tinned copper-wire braid screen.
  • Outer Sheath: Cross-linked oil resistant LSZH compound.

Electrical Characteristics at 20℃

Nominal Cross Section mm² 0.75 1 2.5 6 10
No of Strand/Strand Diameter 19/0.22 19/0.25 37/0.29 84/0.3 80/0.4
Maximum Conductor Resistant Ω/km 26.7 20 8.21 3.39 1.95
Impedance@1.0-10MHz Ω 120+/-12 - - - -
Maximum Attenuation @1MHz dB/km 10 - - - -
Maximum Attenuation @1.5MHz dB/km 13 - - - -
Maximum Attenuation @2MHz dB/km 14 - - - -
Maximum Attenuation @3MHz dB/km 18 - - - -
Maximum Transfer Impedance mΩ/m 30 - - - -
Nominal Voltage Rating v 300 - - - -

Mechanical and Thermal Properties

  • Minimum Bending Radius: 6×OD (single); 12×OD (multiple)
  • Temperature Range: -40℃ to +90℃ (during operation); -20℃ +50℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal Conductor
Cross Sectional Area
No.×mm²		 Nominal
Sheath
Thickness
mm		 Nominal
Overall
Diameter
mm		 Nominal
Weight
kg/km
RD-UIC-4C10S+2C6S+1C2.5S+2C0.75S 4×10+2×6+1×2.5+2×0.75 1.8 25 917
RD-UIC-4C10S+2C6S+1C2.5S+2C1S+2C0.75S 4×10+2×6+1×2.5+2×1.0+2×0.75 1.8 25 969
RD-UIC-4Q1S+2C0.75S 4×4×1.0+ 2×0.75 1.8 18.5 498
RD-UIC-4Q1S+2P0.75S 4×4×1.0+ 2×2×0.75 1.8 23 530
