EN 50288-7 Cables

PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Single Pair)

RE-2Y(St)Y 70°C / 300V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note:Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

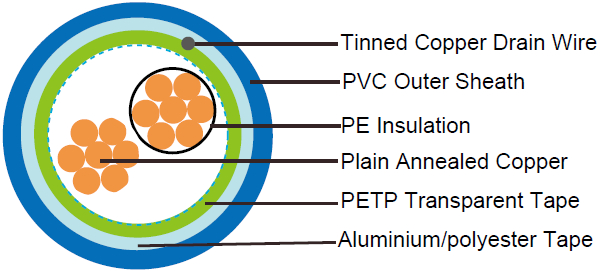

CABLE CONSTRUCTION

EN50288-7

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound as per EN 50290. 2-23..
  • Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
  • Binder tape: PETP transparent tape
  • Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
  • Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +70°C
  • Temperature Range During Installation (Mobile State): -20°C – +50°C
  • Minimum Bending Radius: 7.5 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km (Min.) 5000
Mutual Capacitance (1kHz) pF/m (Max.) 115
≤4 pairs 90 90 90 102 102
all other pairs 75 75 75 85 85
Capacitance unbalance (1kHz) pF/500m (Max.) 500
Inductance mH/km (Max.) 1
L/R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage Urms V 300
Test Voltage Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-2Y(St)Y

No. of Pairsx2 xCross Section

 Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
  No.x2xmm2 mm mm mm kg/km
RE-2Y(St)Y 1P0.5 1x2x0.50 0.35 0.8 5.2 38
RE-2Y(St)Y 1P0.75 1x2x0.75 0.38 0.8 5.6 49
RE-2Y(St)Y 1P1.0 1x2x1.0 0.40 0.9 6.3 56
RE-2Y(St)Y 1P1.3 1x2x1.3 0.45 0.9 6.8 65
RE-2Y(St)Y 1P1.5 1x2x1.5 0.45 0.9 7.1 74

Note:Other conductor sizes & core configurations are available upon request.
