EN 50288-7 Cables

PE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)

RE-2Y(st)YSWAY 70°C / 500V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note:Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

500V

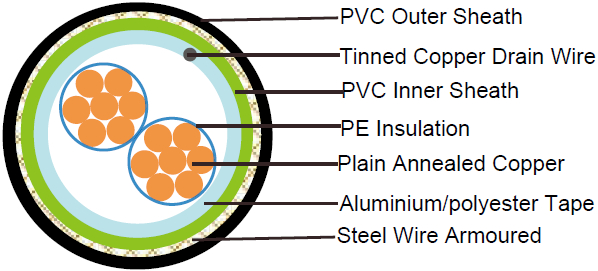

CABLE CONSTRUCTION

EN50288-7

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound as per EN 50290. 2-23.
  • Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
  • Inner Sheath: Thermoplastic PVC compound as per EN 50290-2-22.
  • Armouring: Galvanised steel wire
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black / Blue, continuously numbered on blue core(1, 2..) for wrapped conductor
  • Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +70°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 10 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5 2.5
Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
Conductor resistance (20°C) Ω/km 36.7 25.0 18.5 14.2 12.3 7.4
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Inductance mH/km(Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40 40
Operating voltage V 500
Test Voltage Urms Core to Core V 2000
Core to Screen V 2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-2Y(St)YSWAY
No. of Cores x1xCross Section Nominal Insulation Thick- ness Nominal Inner Sheath Thick- ness NominalOverall Diameter Over Inner Sheath Nominal Armour Wire Diameter Nominal Outer Sheath Thick- ness Nominal Overall Diameter Approx. Weight
  No.x1xmm2 mm mm mm mm mm mm kg/km
0.5mm2, Multicore
RE-2Y(St)YSWAY 2C0.5 2x1x0.5 0.55 0.9 6.2 0.9 1.3 10.6 217
RE-2Y(St)YSWAY 3C0.5 3x1x0.5 0.55 0.9 6.5 0.9 1.3 10.9 230
RE-2Y(St)YSWAY 4C0.5 4x1x0.5 0.55 0.9 7.0 0.9 1.3 11.4 253
RE-2Y(St)YSWAY 5C0.5 5x1x0.5 0.55 0.9 7.6 0.9 1.3 12.0 283
RE-2Y(St)YSWAY 8C0.5 8x1x0.5 0.55 1.0 9.1 0.9 1.4 13.7 337
RE-2Y(St)YSWAY 10C0.5 10x1x0.5 0.55 1.0 10.4 0.9 1.4 15.0 399
RE-2Y(St)YSWAY 12C0.5 12x1x0.5 0.55 1.0 10.7 0.9 1.4 15.3 442
RE-2Y(St)YSWAY 14C0.5 14x1x0.5 0.55 1.0 11.3 0.9 1.4 15.9 474
RE-2Y(St)YSWAY 16C0.5 16x1x0.5 0.55 1.1 11.8 0.9 1.4 16.4 505
RE-2Y(St)YSWAY 20C0.5 20x1x0.5 0.55 1.1 13.3 0.9 1.5 18.1 569
RE-2Y(St)YSWAY 24C0.5 24x1x0.5 0.55 1.1 14.7 0.9 1.5 19.5 659
RE-2Y(St)YSWAY 27C0.5 27x1x0.5 0.55 1.2 15.0 0.9 1.5 19.8 808
RE-2Y(St)YSWAY 30C0.5 30x1x0.5 0.55 1.2 15.7 0.9 1.5 20.5 848
RE-2Y(St)YSWAY 37C0.5 37x1x0.5 0.55 1.2 16.9 0.9 1.6 21.9 963
RE-2Y(St)YSWAY 40C0.5 40x1x0.5 0.55 1.2 17.6 1.25 1.6 23.3 1014
0.75mm2, Multicore
RE-2Y(St)YSWAY 2C0.75 2x1x0.75 0.55 0.9 6.5 0.9 1.3 10.9 345
RE-2Y(St)YSWAY 3C0.75 3x1x0.75 0.55 0.9 6.9 0.9 1.3 11.3 420
RE-2Y(St)YSWAY 4C0.75 4x1x0.75 0.55 0.9 7.4 0.9 1.3 11.8 507
RE-2Y(St)YSWAY 5C0.75 5x1x0.75 0.55 0.9 8.1 0.9 1.4 12.7 609
RE-2Y(St)YSWAY 8C0.75 8x1x0.75 0.55 1.0 9.7 0.9 1.4 14.3 846
RE-2Y(St)YSWAY 10C0.75 10x1x0.75 0.55 1.0 11.1 0.9 1.4 15.7 1035
RE-2Y(St)YSWAY 12C0.75 12x1x0.75 0.55 1.0 11.5 0.9 1.4 16.1 1183
RE-2Y(St)YSWAY 14C0.75 14x1x0.75 0.55 1.1 12.2 0.9 1.5 17.0 1334
RE-2Y(St)YSWAY 16C0.75 16x1x0.75 0.55 1.1 12.9 0.9 1.5 17.7 1495
RE-2Y(St)YSWAY 20C0.75 20x1x0.75 0.55 1.1 14.3 0.9 1.5 19.1 1823
RE-2Y(St)YSWAY 24C0.75 24x1x0.75 0.55 1.2 16.0 0.9 1.5 20.8 2258
RE-2Y(St)YSWAY 27C0.75 27x1x0.75 0.55 1.2 16.3 0.9 1.6 21.3 2482
RE-2Y(St)YSWAY 30C0.75 30x1x0.75 0.55 1.2 16.9 0.9 1.6 21.9 2713
RE-2Y(St)YSWAY 37C0.75 37x1x0.75 0.55 1.2 18.2 1.25 1.6 23.9 3231
RE-2Y(St)YSWAY 40C0.75 40x1x0.75 0.55 1.3 19.1 1.25 1.6 24.8 3483
1.0mm2, Multicore
RE-2Y(St)YSWAY 2C1.0 2x1x1.0 0.55 0.9 6.9 0.9 1.3 11.3 247
RE-2Y(St)YSWAY 3C1.0 3x1x1.0 0.55 0.9 7.3 0.9 1.3 11.7 270
RE-2Y(St)YSWAY 4C1.0 4x1x1.0 0.55 0.9 7.9 0.9 1.4 12.5 299
RE-2Y(St)YSWAY 5C1.0 5x1x1.0 0.55 0.9 8.6 0.9 1.4 13.2 342
RE-2Y(St)YSWAY 8C1.0 8x1x1.0 0.55 1.0 10.3 0.9 1.4 14.9 417
RE-2Y(St)YSWAY 10C1.0 10x1x1.0 0.55 1.0 11.9 0.9 1.4 16.5 514
RE-2Y(St)YSWAY 12C1.0 12x1x1.0 0.55 1.0 12.2 0.9 1.5 17.0 548
RE-2Y(St)YSWAY 14C1.0 14x1x1.0 0.55 1.1 13.0 0.9 1.5 17.8 590
RE-2Y(St)YSWAY 16C1.0 16x1x1.0 0.55 1.1 13.7 0.9 1.5 18.5 649
RE-2Y(St)YSWAY 20C1.0 20x1x1.0 0.55 1.1 15.2 0.9 1.5 20.0 864
RE-2Y(St)YSWAY 24C1.0 24x1x1.0 0.55 1.2 17.0 0.9 1.6 22.0 1005
RE-2Y(St)YSWAY 27C1.0 27x1x1.0 0.55 1.2 17.4 1.25 1.6 23.1 1058
RE-2Y(St)YSWAY 30C1.0 30x1x1.0 0.55 1.2 18.0 1.25 1.6 23.7 1113
RE-2Y(St)YSWAY 37C1.0 37x1x1.0 0.55 1.2 19.6 1.25 1.6 25.3 1271
RE-2Y(St)YSWAY 40C1.0 40x1x1.0 0.55 1.3 20.4 1.25 1.7 26.3 1351
1.3mm2, Multicore
RE-2Y(St)YSWAY 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
RE-2Y(St)YSWAY 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 301
RE-2Y(St)YSWAY 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
RE-2Y(St)YSWAY 5C1.3 5x1x1.3 0.6 1.0 9.5 0.9 1.4 14.1 383
RE-2Y(St)YSWAY 8C1.3 8x1x1.3 0.6 1.0 11.2 0.9 1.4 15.8 436
RE-2Y(St)YSWAY 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18.0 578
RE-2Y(St)YSWAY 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
RE-2Y(St)YSWAY 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
RE-2Y(St)YSWAY 16C1.3 16x1x1.3 0.6 1.1 15.0 0.9 1.5 19.8 870
RE-2Y(St)YSWAY 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
RE-2Y(St)YSWAY 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
RE-2Y(St)YSWAY 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25.0 1227
RE-2Y(St)YSWAY 30C1.3 30x1x1.3 0.6 1.3 20.0 1.25 1.6 25.7 1305
RE-2Y(St)YSWAY 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
RE-2Y(St)YSWAY 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
1.5mm2, Multicore
RE-2Y(St)YSWAY 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
RE-2Y(St)YSWAY 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 312
RE-2Y(St)YSWAY 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 358
RE-2Y(St)YSWAY 5C1.5 5x1x1.5 0.6 1.0 9.8 0.9 1.4 14.4 403
RE-2Y(St)YSWAY 8C1.5 8x1x1.5 0.6 1.0 11.6 0.9 1.4 16.2 526
RE-2Y(St)YSWAY 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 630
RE-2Y(St)YSWAY 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 669
RE-2Y(St)YSWAY 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
RE-2Y(St)YSWAY 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
RE-2Y(St)YSWAY 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1090
RE-2Y(St)YSWAY 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
RE-2Y(St)YSWAY 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1320
RE-2Y(St)YSWAY 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1385
RE-2Y(St)YSWAY 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
RE-2Y(St)YSWAY 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1723
2.52, Multicore
RE-2Y(St)YSWAY 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 370
RE-2Y(St)YSWAY 3C2.5 3x1x2.5 0.7 1.0 9.7 0.9 1.4 14.3 387
RE-2Y(St)YSWAY 4C2.5 4x1x2.5 0.7 1.0 10.5 0.9 1.4 15.1 442
RE-2Y(St)YSWAY 5C2.5 5x1x2.5 0.7 1.0 11.9 0.9 1.4 16.5 568
RE-2Y(St)YSWAY 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 729
RE-2Y(St)YSWAY 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 957
RE-2Y(St)YSWAY 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1049
RE-2Y(St)YSWAY 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1198
RE-2Y(St)YSWAY 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1302
RE-2Y(St)YSWAY 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27.0 1485
RE-2Y(St)YSWAY 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1718
RE-2Y(St)YSWAY 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1895
RE-2Y(St)YSWAY 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2166
RE-2Y(St)YSWAY 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2505
RE-2Y(St)YSWAY 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2738

Note: Other conductor sizes & core configurations are available upon request.
