EN 50288-7
XLPE Insulated, LSZH Sheathed & Overall Screened, Armoured Instrumentation Cables (Single Pair)
RE-2X(St)HSWAH
APPLICATION
The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for theinterconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
Note:Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.
VOLTAGE RATING
300V

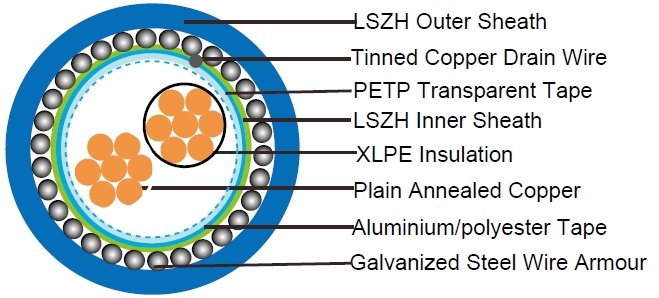

CABLE CONSTRUCTION
- Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class
- Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.
- Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
- Binder tape: PETP transparent tape
- Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
- Inner Sheath: LSZH compound
- Amouring: Galvanized steel wire armour
- Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent andanti termite properties can be offered as option.
COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair. Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
- Temperature Range During Operation (Fixed State): -30°C – +90°C
- Temperature Range During Installation (Mobile State): -5°C – +50C
- Minimum Bending Radius: 6 X Overall Diameter Electrical PROPERTIES
| Conductor Area Size | mm2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
| Insulation thickness (nominal) | mm | 0.35 | 0.38 | 0.4 | 0.45 | 0.45 | |
| Conductor resistance (20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| Insulation resistance (20°C) | MΩ.km(Min.) | 5000 | |||||
| Mutual Capacitance (1 kHz) | pF/m(Max.) | 115 | |||||
| Capacitance unbalance(1 kHz) | pF/500 m (Max.) | 500 | |||||
| Inductance | mH/km (Max.) | 1 | |||||
| L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | |
| Operating voltage Urms | V | 300 | |||||
| Test Voltage | Core to Core | V | 1500 | ||||
| Core to Screen | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| Caledonian Cable Code | RE-2X(St)HSWAH | |||||||
|---|---|---|---|---|---|---|---|---|
| No. of Pairs x2xCross Section | Nominal Insulation Thick -ness | Nominal Inner Sheath Thick -ness | Nominal Overall Diameter Over InnerSheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick -ness | Nominal Overall Diameter | Approx. Weight | |
| No.x2xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| RE-2X(St)HSWAH 1P0.5 | 1x2x0.50 | 0.35 | 0.8 | 5.2 | 0.9 | 1.3 | 9.6 | 179 |
| RE-2X(St)HSWAH 1P0.75 | 1x2x0.75 | 0.38 | 0.8 | 5.6 | 0.9 | 1.3 | 10.0 | 199 |
| RE-2X(St)HSWAH 1P1.0 | 1x2x1.0 | 0.40 | 0.9 | 6.3 | 0.9 | 1.3 | 10.7 | 220 |
| RE-2X(St)HSWAH 1P1.3 | 1x2x1.3 | 0.45 | 0.9 | 6.8 | 0.9 | 1.3 | 11.2 | 241 |
| RE-2X(St)HSWAH 1P1.5 | 1x2x1.5 | 0.45 | 0.9 | 7.1 | 0.9 | 1.3 | 11.5 | 259 |
