BS5308 Cable Part 2 Type 2 PVC-IS-OS-SWA-PVC

RE-Y(St)Y PIMF SWAY

Applications

BS5308 Cable Part 2 Type 2 PVC armoured versions (Part 2 Type 2) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

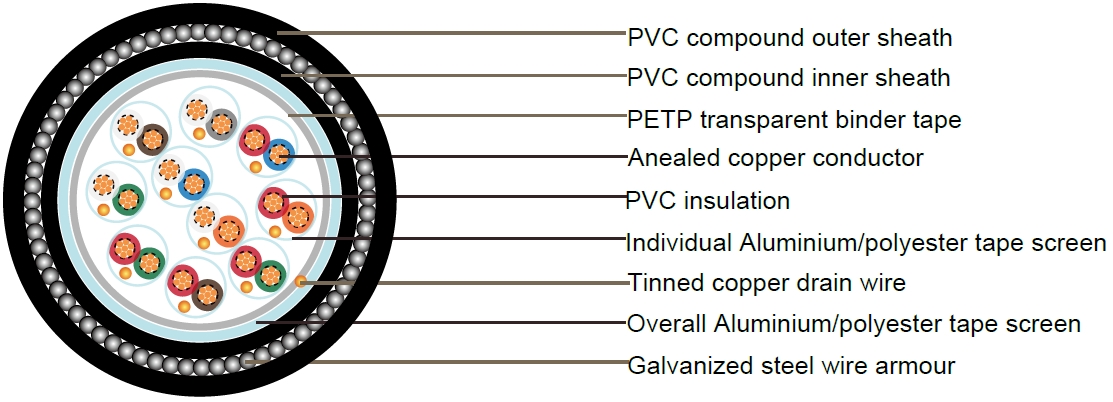

Construction

BS5308 Cable

Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² multistranded(Class 2) to BS6360
Insulation PVC (polyvinyl chloride),type TI1 to BS 6746
Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code Multipair cables:See technical information
Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm²
Binder tape PETP transparent tape
Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Inner Sheath PVC (polyvinyl chloride), type TM 1 to BS 6746
Amour Galvanized steel wire armour
Outer sheath PVC Sheath, type TM 1 to BS 6746
Sheath colour Black or blue

Mechanical and Electrical Properties

Operating temperature -40˚C up to + 70˚C( fixed installation)
  0˚C to +50˚C(during operation )
Minimum bending radius 6 x overall diameter
Conductor Area Size mm2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
  Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500

Parameter

No.of Pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
no./mm mm² mm mm mm mm mm mm kg/km
2 16/0.2 0.5 0.6 0.8 10.6 0.9 1.3 15 505
5 16/0.2 0.5 0.6 1.1 14.3 0.9 1.5 19.1 830
10 16/0.2 0.5 0.6 1.2 19.1 1.25 1.6 24.8 1420
15 16/0.2 0.5 0.6 1.3 22.2 1.6 1.7 28.8 1570
20 16/0.2 0.5 0.6 1.3 25.3 1.6 1.8 32.1 2040
30 16/0.2 0.5 0.6 1.5 30.6 1.6 1.9 37.6 2610
50 16/0.2 0.5 0.6 1.7 38.9 2 2.1 47.1 4270
2 24/0.2 0.75 0.6 0.8 11.5 0.9 1.4 16.1 545
5 24/0.2 0.75 0.6 1.2 15.7 1.25 1.5 21.2 1005
10 24/0.2 0.75 0.6 1.3 20.9 1.6 1.7 27.5 1400
15 24/0.2 0.75 0.6 1.3 24.2 1.6 1.8 31 1750
20 24/0.2 0.75 0.6 1.5 27.9 1.6 1.8 34.7 2300
30 24/0.2 0.75 0.6 1.7 33.8 2 2 41.8 2460
50 24/0.2 0.75 0.6 2 43.1 2.5 2.3 52.7 4800
2 7/0.53 1.5 0.6 0.9 13 0.9 1.4 17.6 800
5 7/0.53 1.5 0.6 1.2 17.5 1.25 1.6 23.2 1290
10 7/0.53 1.5 0.6 1.3 23.5 1.6 1.8 30.3 1990
15 7/0.53 1.5 0.6 1.5 27.6 1.6 1.9 34.6 2590
20 7/0.53 1.5 0.6 1.5 31.3 1.6 2 38.5 3310
30 7/0.53 1.5 0.6 1.7 38 2 2.1 46.2 4380
50 7/0.53 1.5 0.6 2 48.5 2.5 2.4 58.3 6260
