Mining Cable
NTSKCGERLOEU Medium-Voltage Coal Cutter Cable
Applications
These cables are used for the connection of mobile electrical equipment inunderground mines, e.g. for coal-cutting machines,especially for the use in bretby chains with extremebending loads under low tensile stress.
Standards
VDE 0250 Part 813

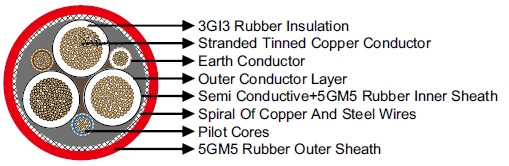

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer (for 3.6/6kV): Easy strippable outer conductive layer.
Pilot Cores:Copper/steel conductor capable ofexpansion and compression with EPRrubber insulation.
Earth Conductor: Spiral of tinnedcopper wires and a conductive tape.
InnerSheath: 2 layer design, semi conductive rubber + Rubber type 5GM5.
Armour: Spiral of steel wires,embedded in the outer sheath, fiberglas tape which preventssheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
Dimensions and Weight
1.8/3 (3.6) kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×35+3×(1.5ST+25/3)+UEL | 44.0 | 49.0 | 3900 |
| 3×50+3×(1.5ST+25/3)+UEL | 50.0 | 55.0 | 5100 |
| 3×70+3×(1.5ST+35/3)+UEL | 52.0 | 56.0 | 6200 |
| 3×95+3×(1.5ST+50/3)+UEL | 58.0 | 62.0 | 7500 |
| 3×120+3×(1.5ST+70/3)+UEL | 64.0 | 70.0 | 9350 |
3.6/6 (7.2) kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×35+3×(1.5ST+25/3)+UEL | 49.0 | 54.0 | 5800 |
| 3×50+3×(1.5ST+25/3)+UEL | 56.0 | 61.0 | 6100 |
| 3×70+3×(1.5ST+35/3)+UEL | 57.0 | 62.0 | 6700 |
| 3×95+3×(1.5ST+50/3)+UEL | 62.0 | 66.0 | 8000 |
| 3×120+3×(1.5ST+70/3)+UEL | 67.0 | 71.0 | 10200 |
