NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable
Applications
These cables are used for permanent operation inwater where the cable is required to have additionalmechanical protection.
Standards
VDE 0250 Part 813

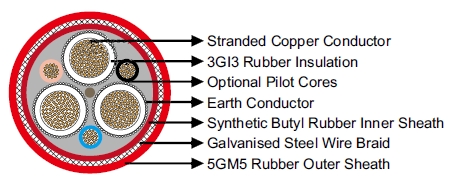

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Special rubber compound, conductive.
Insulation: Rubbertype 3GI3.
Outer Conductor Layer:Special rubber, conductive, easy strippable.
Pilot Cores (optional):Copper conductor with EPR insulation.
Earth Conductor: Spiral of tinned annealed copper wires.
InnerSheath: Waterproof synthetic butyl rubber.
Armouring: Braid of galvanised steel strands.
Outer Sheath: Rubber type 5GM5.
Dimensions and Weight
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×35+3×16/3E | 55.0 | 60.0 | 4600 |
| 3×50+3×25/3E | 59.0 | 67.0 | 5600 |
| 3×70+3×35/3E | 64.0 | 70.0 | 6700 |
| 3×95+3×50/3E | 68.0 | 75.0 | 7900 |
| 3×120+3×70/3E | 75.0 | 80.0 | 9980 |
