Mining Cable
NTMTWOEU 0.6/1kV Mine Hoist Cables
Applications
These cables are used as suspended cable for intrinsically safe control of user-operated mine hoists (lifts) with telephonic connection in underground mines.
Standards
VDE 0250 Part 813

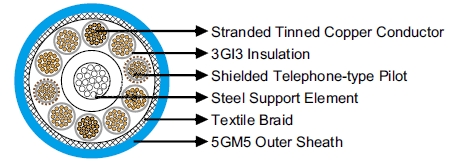

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: EPR type 3GI3.
Support Element: Central steel support element.
Anti-torsion Braid:Textile braid.
- Outer Sheath: PCP rubber type 5GM5.
Dimensions and Weight
| Number of Cores×Nominal Cross Section | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 8x2.5ST+2x1FM(C) | 21.7 | 23.7 | 800 |
| 8x2.5ST+10x (2x1FM)C | 34.0 | 37.5 | 1450 |
| 14x2.5ST+6x1FM(C) | 27.0 | 31.0 | 1200 |
| 18x2.5ST+6x1FM(C) | 38.0 | 42.0 | 1800 |
| 19x1.5(C)ST+6x (2x1FM)C | 35.1 | 38.1 | 2145 |
