NSSHCGEOEU 0.6/1kV Coal Cutter Cable (Low Tensile Stress)
Applications
These cables are used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations,e.g. for coal-cutting machines, suitable for extreme bending loads under low tensilestress.
Standards
DIN VDE 0250 Part 812

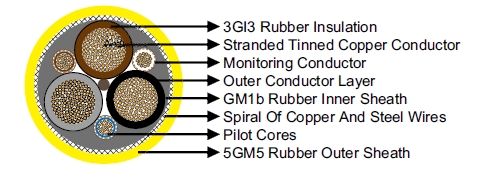

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer: Easy strippable outer conductive layer.
Pilot Cores:Copper strand and steelbraid conductor capable ofexpansion and compression with EPRrubber insulation.
Monitoring Cores: Spiral of tinned copper wires above the pilot cores, covered with a semi-conductive tape.
InnerSheath: Rubber type GM1b.
Armour/Earth Conductor:Concentric earth conductor as spiral of copper and steel wires,fibreglas tape, embedded in the outer sheath whichprevents sheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
Dimensions and Weight
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×16/16KON+2ST+UEL | 35.0 | 38.0 | 2130 |
| 3×25/16KON+2ST+UEL | 38.0 | 41.0 | 2790 |
| 3×35/16KON+2ST+UEL | 41.0 | 45.0 | 3390 |
| 3×50/25KON+2ST+UEL | 47.0 | 51.0 | 4340 |
| 3×70/35KON+2ST+UEL | 52.0 | 56.0 | 5680 |
| 3×95/50KON+2ST+UEL | 58.0 | 62.0 | 7180 |
| 3×25/16KON+3×(1.5ST+UEL) | 38.0 | 41.0 | 2920 |
| 3×35/16KON+3×(1.5ST+UEL) | 41.0 | 45.0 | 3630 |
| 3×50/25KON+3×(1.5ST+UEL) | 45.0 | 48.0 | 4500 |
| 3×70/35KON+3×(1.5ST+UEL) | 48.0 | 53.0 | 5850 |
| 3×95/50KON+3×(1.5ST+UEL) | 52.0 | 56.0 | 7400 |
| 3×120/70KON+3×(1.5ST+UEL) | 58.0 | 63.0 | 8300 |
| 3×150/70KON+3×(1.5ST+UEL) | 62.0 | 68.0 | 9300 |
