Mining Cable
NSHTOEU 0.6/1kV LHD Cables
Applications
These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.
Standards
VDE 0250 Part 814

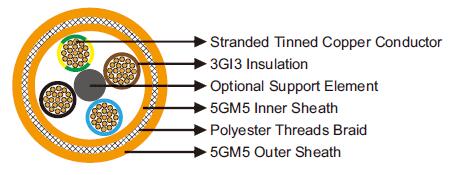

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: EPR type 3GI3.
Optional Support Element: Central support element.
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid:Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
Outer Sheath: PCP type 5GM5.
Dimensions and Weight
| Number of Cores×Nominal Cross Section | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 4x16(6 kN) | 27.5 | 31.5 | 1500 |
| 4x35(12 kN) | 37.5 | 42.0 | 2920 |
| 4x50(12 kN) | 43.0 | 48.0 | 3970 |
| 4x50(30 kN) | 42.0 | 44.0 | 3660 |
| 4x70 (20kN) | 47.0 | 52.0 | 5530 |
| 4x95 (50kN) | 53.0 | 58.0 | 6500 |
