(N)TSCGEWOEU Medium-Voltage Trailing Cable With Anti-Torsion Braid
Applications
Mining cables are used for the connection of electrical equipment, in minesand underground excavations with hazardousenvironments under particularly high mechanical loads,e.g. high-voltage transformers on power lines inunderground mining and tunnelling.
Standards
Based on VDE 0250 Part 813

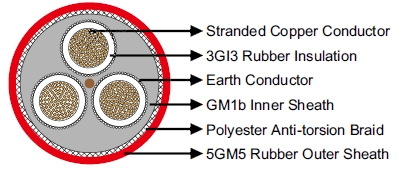

Construction
Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Special rubber compound, conductive.
Insulation: Rubber type 3GI3.
Outer Conductor Layer:Special rubber compound, conductive, easy strippable.
Earth Conductor: Spiral of tinnedcopper wires.
InnerSheath: Rubber type GM1b.
Reinforcement:Polyester anti-torsion braidbetween the jackets embedded.
- Outer Sheath: Rubber type 5GM5.
Dimensions and Weight
8.7/15kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×150+3×70/3E | 73.0 | 78.0 | 10150 |
