Type SHD-PCG Three-Conductor Portable Power Cable 5kV

Applications

These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required.

Standards

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA-C22.2 No.96

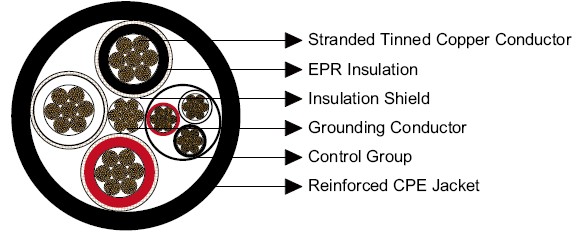

Construction

Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Insulation Shield:Non-conducting Tape + Tinned copper/textile braid.
Control Group (3 Conductors):Tinned copper conductor, EPR insulation and thermosetting sheath. Colour of insulation: Black, white and red.
Grounding Conductor:Tinned copper conductor, located in the center of the cable.
Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD
Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Control Conductor Size	Nominal Insulation Thickness		Nominal Sheath Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×2	259	4	8	0.11	2.8	0.205	5.2	2.03	51.5	2769	4120	159
3×1	259	4	8	0.11	2.8	0.220	5.6	2.12	53.8	2825	4205	184
3×1/0	266	3	8	0.11	2.8	0.220	5.6	2.27	57.7	3571	5313	211
3×2/0	329	2	8	0.11	2.8	0.220	5.6	2.45	62.2	3774	5615	243
3×3/0	418	1	8	0.11	2.8	0.235	6.0	2.58	65.3	4752	7070	279
3×4/0	532	1/0	6	0.11	2.8	0.250	6.4	2.76	69.9	6030	8971	321

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
