Mining Cable
Applications
These cables are used as HV feeder cables in fixed conditions.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

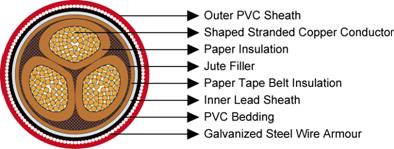

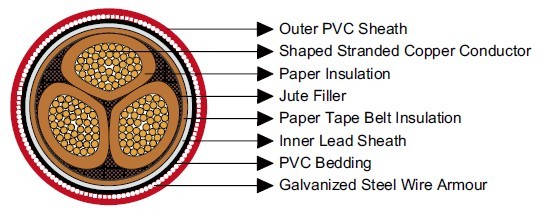

Construction
Conductors: Sector shaped stranded copper conductor.
Insulation: Paper tape.
Filling: Jute fillers.
Insulation: Paper tape belt insulation.
Inner Sheath: Lead sheath.
Bedding: PVC sheath.
Armour: Galvanized steel wire armour.
Outer Sheath: PVC sheathto AS/NZS 1026.
Dimensions and Weight
| Nominal Conductor Area | Minimum Insulation Thickness | Nominal Lead Sheath Thickness | Armour Wire Diameter | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | |
| Between Conductors | Between Conductors and Lead Sheath | ||||||
| mm² | mm | mm | mm | mm | mm | mm | kg/100m |
| 25 | 5.6 | 5.4 | 1.8 | 2.5 | 2.4 | 47.9 | 630 |
| 35 | 5.6 | 5.4 | 1.8 | 2.5 | 2.5 | 50.3 | 695 |
| 50 | 5.6 | 5.4 | 1.8 | 2.5 | 2.5 | 50.1 | 725 |
| 70 | 5.6 | 5.4 | 1.9 | 2.5 | 2.6 | 53.5 | 855 |
| 95 | 5.6 | 5.4 | 2.0 | 2.5 | 2.6 | 57.2 | 1000 |
| 120 | 5.6 | 5.4 | 2.0 | 2.5 | 2.7 | 60.1 | 1120 |
| 150 | 5.6 | 5.4 | 2.1 | 2.5 | 2.8 | 63.0 | 1260 |
| 185 | 5.6 | 5.4 | 2.3 | 3.15 | 2.9 | 68.0 | 1540 |
| 240 | 5.6 | 5.4 | 2.4 | 3.15 | 3.0 | 73.1 | 1820 |
| 300 | 5.6 | 5.4 | 2.6 | 3.15 | 3.2 | 77.9 | 2120 |
| 400 | 5.6 | 5.4 | 2.7 | 3.15 | 3.4 | 83.5 | 2500 |
