Mining Cable
Type 1 1.1/1.1KV Individually Screened
Applications
These individuallycopper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125

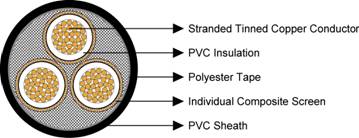

AS/NZS 3808Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Binding: Polyester tape.
Sheath: PVC sheath.Dimensions and Weight
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
| Strand Size | Area of Screen |
|||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| Type 1 - Individually Screened | ||||||||
| 3 | 1.5 | 30/0.25 | 0.8 | 0.20 | 3.5 | 0.8 | 10.1 | 16 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.20 | 4.6 | 0.8 | 11.1 | 21 |
| 3 | 10 | 77/0.40 | 1.0 | 0.20 | 6.8 | 1.0 | 18.6 | 59 |
| 4 | 10 | 77/0.40 | 1.0 | 0.20 | 9.0 | 1.0 | 20.5 | 75 |
| 3 | 16 | 126/0.40 | 1.0 | 0.20 | 7.9 | 1.3 | 21.6 | 84 |
| 4 | 16 | 126/0.40 | 1.0 | 0.20 | 10.6 | 1.3 | 23.7 | 110 |
