portuguese Standard Industrial Cables
H1VV-U
APPLICATIONS:
H1VV-U cables are used for electricity supply in low voltage installation system, H1VV-U cables are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
STANDARD:

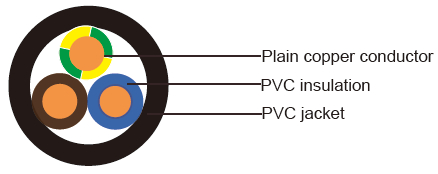

IEC 60502-1CONSTRUCTION:
Conductor: Solid copper conductor, class 1 to IEC 60228
Insulation: PVC insulation
Colour Code :HD 308 S2
Over Sheath: Flexible black PVC outer jacket
PHYSICAL PROPERTIES:
Flexing bending radius: 15 x O Static bending radius: 12 x O
Flexing temperature: -5o C to +50o C
Fixed installation temperature: - 40o C to +70o C
ELECTRICAL PROPERTIES:
Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Flame retardant: IEC 60332-1, EN 50265-2-1
Insulation resistance: >100 MO x km
PARAMETERS:
| Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) | Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) |
| mm^2 | mm | Kg/Km | mm^2 | mm | Kg/Km |
| 1x1.5 | 6.4 | 58 | 30x1.5 | 26 | 1020 |
| 1x2.5 | 6.8 | 71 | 40x1.5 | 29 | 1290 |
| 2x1.5 | 12 | 205 | 48x1.5 | 32 | 1520 |
| 2x2.5 | 13 | 250 | 61x1.5 | 35 | 1900 |
| 3x1.5 | 13 | 230 | 5x2.5 | 16 | 375 |
| 3x2.5 | 13.5 | 280 | 7x2.5 | 17 | 460 |
| 4x1.5 | 13.5 | 265 | 10x2.5 | 20 | 590 |
| 4x2.5 | 14.5 | 325 | 12x2.5 | 21 | 660 |
| 5x1.5 | 14.5 | 300 | 14x2.5 | 22 | 740 |
| 7x1.5 | 15.5 | 360 | 19x2.5 | 24 | 940 |
| 10x1.5 | 19 | 460 | 21x2.5 | 25 | 1030 |
| 12x1.5 | 19.5 | 510 | 24x2.5 | 27 | 1150 |
| 14x1.5 | 20 | 570 | 30x2.5 | 29 | 1370 |
| 19x1.5 | 22 | 710 | 40x2.5 | 32 | 1810 |
| 21x1.5 | 23 | 770 | 48x2.5 | 36 | 2130 |
| 24x1.5 | 25 | 870 | 61x2.5 | 39 | 2630 |
